Description

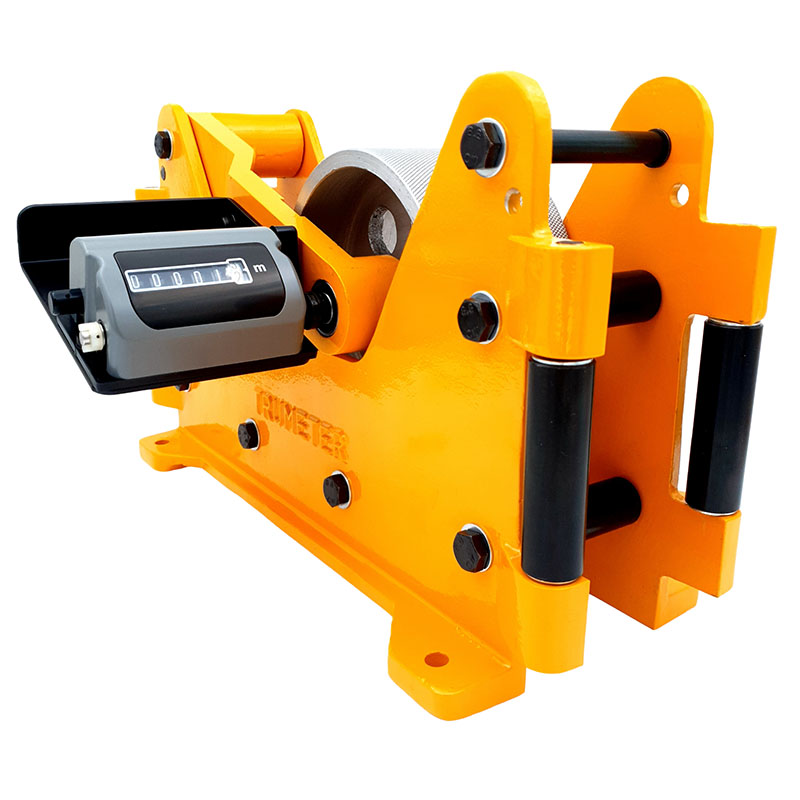

The Trumeter 2600-332CA is a heavy duty, multi-purpose measuring machine for cable, wire, rope, hose, extrusions or any continuous strip from 6mm to 76mm diameter – the big brother of the 2630, sized for material a bench machine cannot take.
A pivot arm carries the 500mm circumference precision ground measuring wheel and rests on the material as it runs. The wheel shaft turns in a double ball race mounted in that arm, so the wheel tracks the surface accurately without loading it. Length reads off a Trumeter 3602 totalising counter mounted at the side of the unit, cleared with a manual lever reset.
This version is fitted with the knurled aluminium measuring wheel and is built for material travelling towards the operator. The pivot arm is also available on its own as the Trumeter 2620. Typical applications include cable laying, cable TV installation, wire batching and retail dispensing.
Key Benefits
- Handles 6mm to 76mm diameter cable, wire, rope, hose, extrusions and continuous strip
- 500mm circumference precision ground wheel on a double ball race – accurate tracking under load
- Knurled aluminium wheel bites into tougher surfaces where a poly wheel would slip
- Trumeter 3602 totalising counter fitted, with manual lever reset
- Heavy duty cast aluminium structure with integral mounting flanges
- Pivot arm also available separately as the Trumeter 2620
- Built for material travelling towards the operator
Specifications
- Model – Trumeter 2600-332CA, for material travelling towards the operator
- Type – Heavy duty multi-purpose length measuring machine, mechanical
- Material diameter range – 6mm (0.24in) to 76mm (3.0in)
- Measuring wheel – 500mm circumference, precision ground, knurled aluminium
- Wheel bearing – Double ball race mounted in the pivot arm
- Units of measurement – Metres and centimetres
- Counter – Trumeter 3602 totalising counter, side mounted
- Reset – Manual lever
- Construction – Heavy duty cast aluminium with integral mounting flanges
- Pivot arm – Also available separately as the Trumeter 2620
- Brand – Trumeter
