Description
The Trumeter 2701-11MCC is a rugged length measuring unit for continuous manufacturing processes – calenders, tenters, rolling, ribbon winding and textile machinery – anywhere an accurate record of length is needed as material runs past a fixed point.

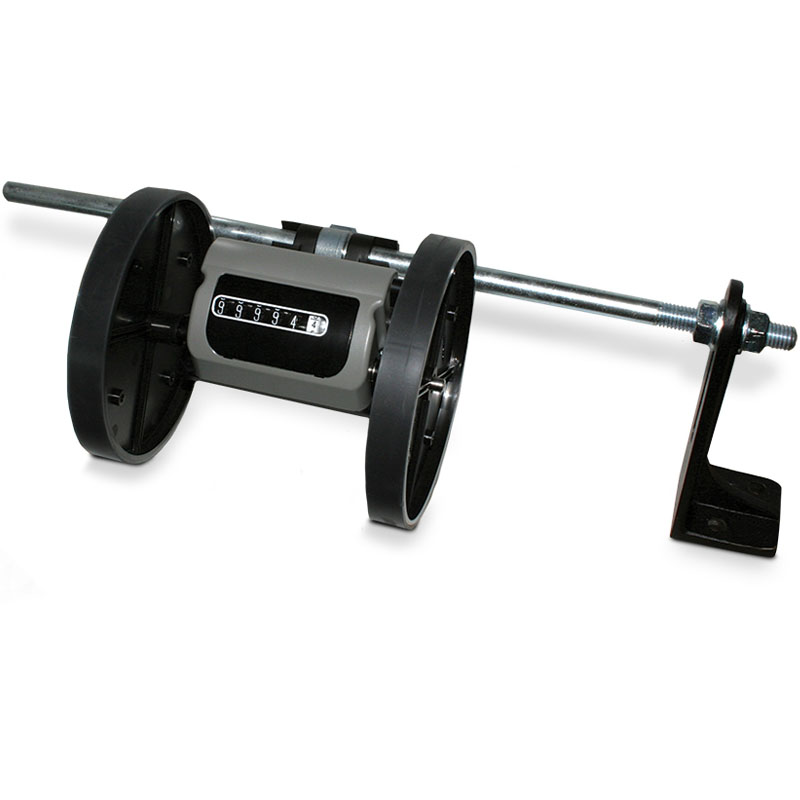

The 2701 twin wheel unit is mounted or hung from the supplied 457mm (17.99in) stay rod. The integral hinge lets the unit sit at any angle, so it can be set to rest properly on the material whatever the line geometry. It incorporates the Trumeter 3602 counter and measuring wheels, reading metres and centimetres on a six digit display with 6.4mm figures.
This is the top coming (material running towards the operator) version. Typical applications include textile production, ribbon and tape manufacturing, paper and calender work, plastic film and packaging, metal processing, carpet, flooring and Astroturf production, non-woven fabrics, rubber and conveyor belt manufacturing, and glass and fibreglass production.
Key Benefits
- Twin wheel unit, stay rod mounted
- Integral hinge allows the unit to be positioned at any angle to suit the line
- Six digit display with 6.4mm (0.25in) figures – readable from across the machine
- Runs to 3000 RPM, so it keeps up with production speeds
- Entirely mechanical – no power and nothing to fail in a shutdown
- Built for material top coming (material running towards the operator)
Specifications
- Model – Trumeter 2701-11MCC
- Type – Material length measuring unit, mechanical
- Configuration – Twin wheel unit, stay rod mounted
- Direction – top coming (material running towards the operator)
- Mounting – Mounted or hung from the supplied 457mm (17.99in) stay rod; integral hinge allows any angle
- Counter – Trumeter 3602, 6 digit, 6.4mm (0.25in) figures
- Units of measurement – Metres and centimetres
- Maximum speed of travel – 3000 RPM
- Accuracy – ±1%
- Shaft diameter – 7mm
- Brand – Trumeter
