Description

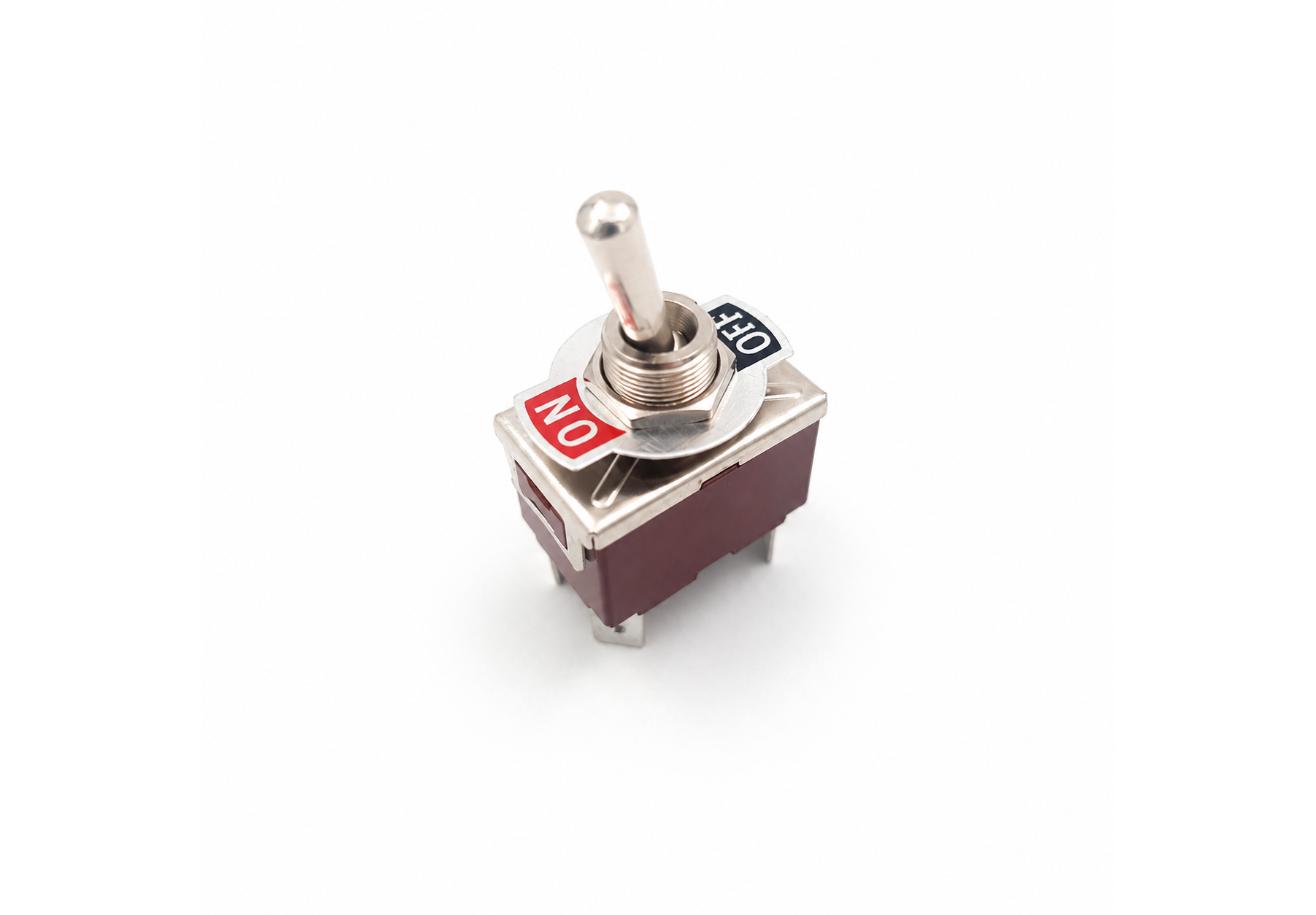

This DPST toggle switch switches two separate circuits together from one maintained ON/OFF lever, making it suitable for paired loads or circuits that must operate at the same time.
Key Features
- Maintained ON/OFF operation
- DPST switching controls two circuits simultaneously
- Four 6.3mm spade terminals
- Compact 12mm panel mounting
- Suitable for 12V and 24V DC systems within the stated ratings
Specifications
- SKU: TS-030
- Configuration: DPST
- Switch positions: Maintained ON/OFF
- Electrical rating: 15A at 12VDC; 10A at 24VDC
- Terminals: Four 6.3mm spade terminals
- Panel cut-out: 12mm diameter
- Body dimensions: 19.5mm W × 28.5mm L × 17.5mm D, plus 10.5mm terminals
- Threaded shaft: 12mm diameter × 9.5mm high
- Toggle length: 17mm above the thread
Applications
- Paired lighting or accessory circuits
- Dual-battery control circuits where suitable

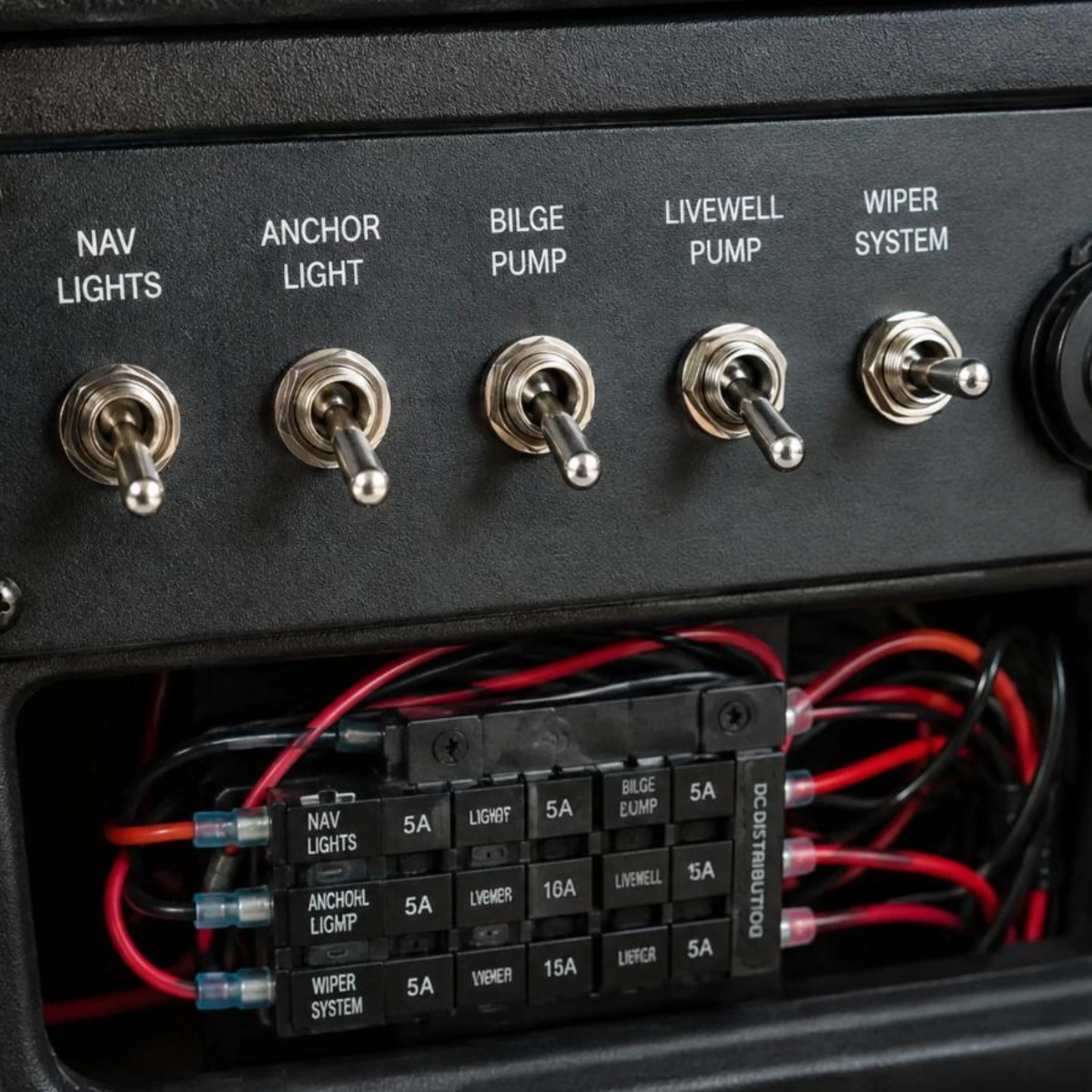

- Marine, automotive and 4WD panels
- Equipment controls requiring two isolated poles
Installation Notes
Identify both pole pairs before wiring. Isolate the supply and use insulated terminals, correctly sized cable and circuit protection suitable for both connected circuits.
