Description

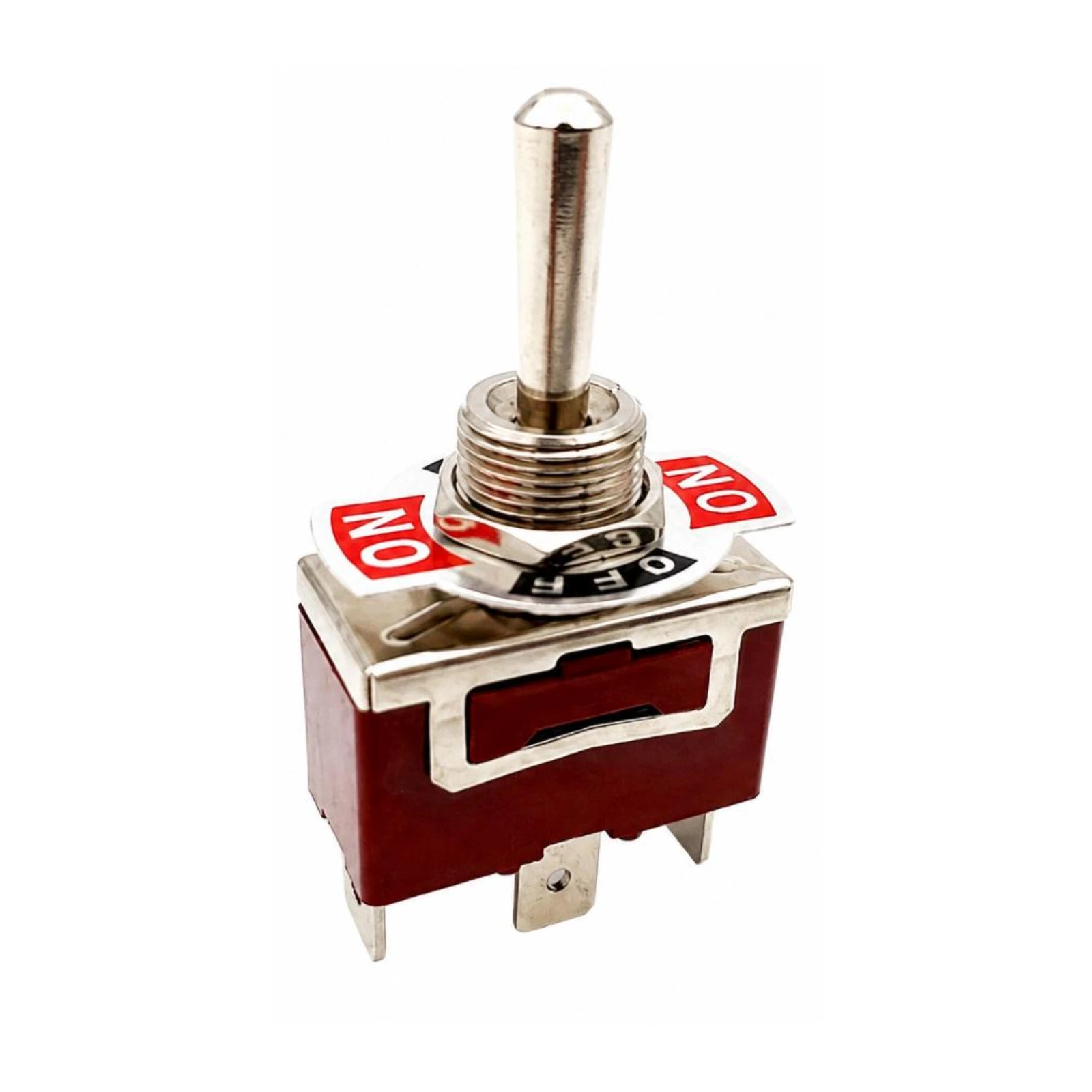

This SPDT toggle switch provides spring-return control in both directions. Hold the lever one way to operate one circuit or the other way to operate the second circuit; releasing it returns the switch to centre OFF.
Key Features
- Momentary (ON)-OFF-(ON) operation
- Spring return to centre OFF from both directions
- SPDT control of two alternative circuits
- Three 6.3mm spade terminals
- Compact 12mm panel mounting
Specifications
- SKU: TS-100
- Configuration: SPDT
- Switch positions: Momentary (ON)-OFF-(ON)
- Electrical rating: 15A at 12VDC; 10A at 24VDC
- Terminals: Three 6.3mm spade terminals
- Panel cut-out: 12mm diameter
- Body dimensions: 16.3mm W × 28.5mm H × 17.5mm D, plus 10.5mm terminals
- Threaded shaft: 12mm diameter × 9.5mm high
- Toggle length: 17mm above the thread

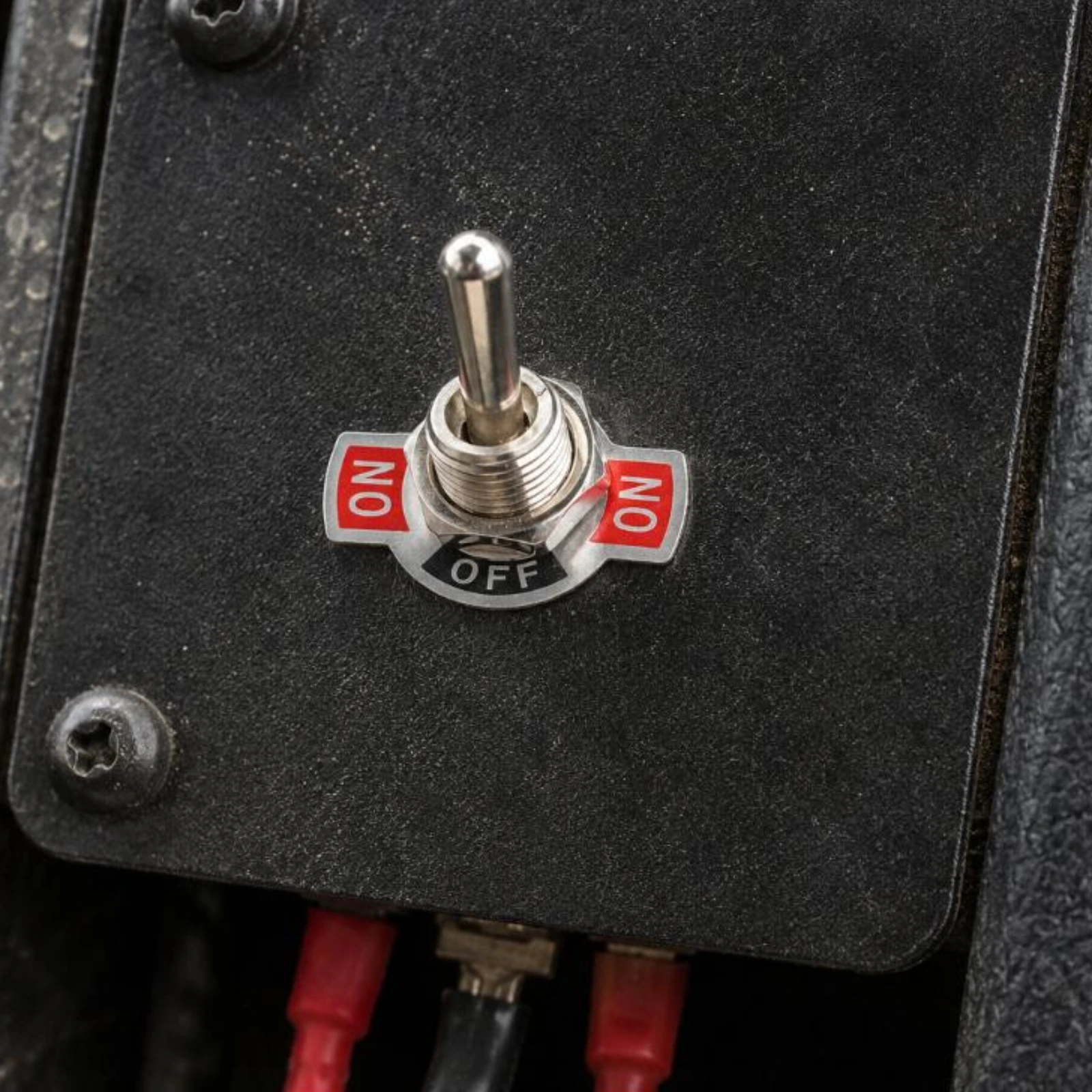

Applications
- Winch and actuator jog controls
- Seat and hatch positioning
- Momentary raise/lower functions
- Equipment controls requiring spring return to OFF
Installation Notes
Confirm the required directional circuit and terminal arrangement before wiring. Isolate the supply and use suitable cable, circuit protection and relays where required by the connected load.
