Description

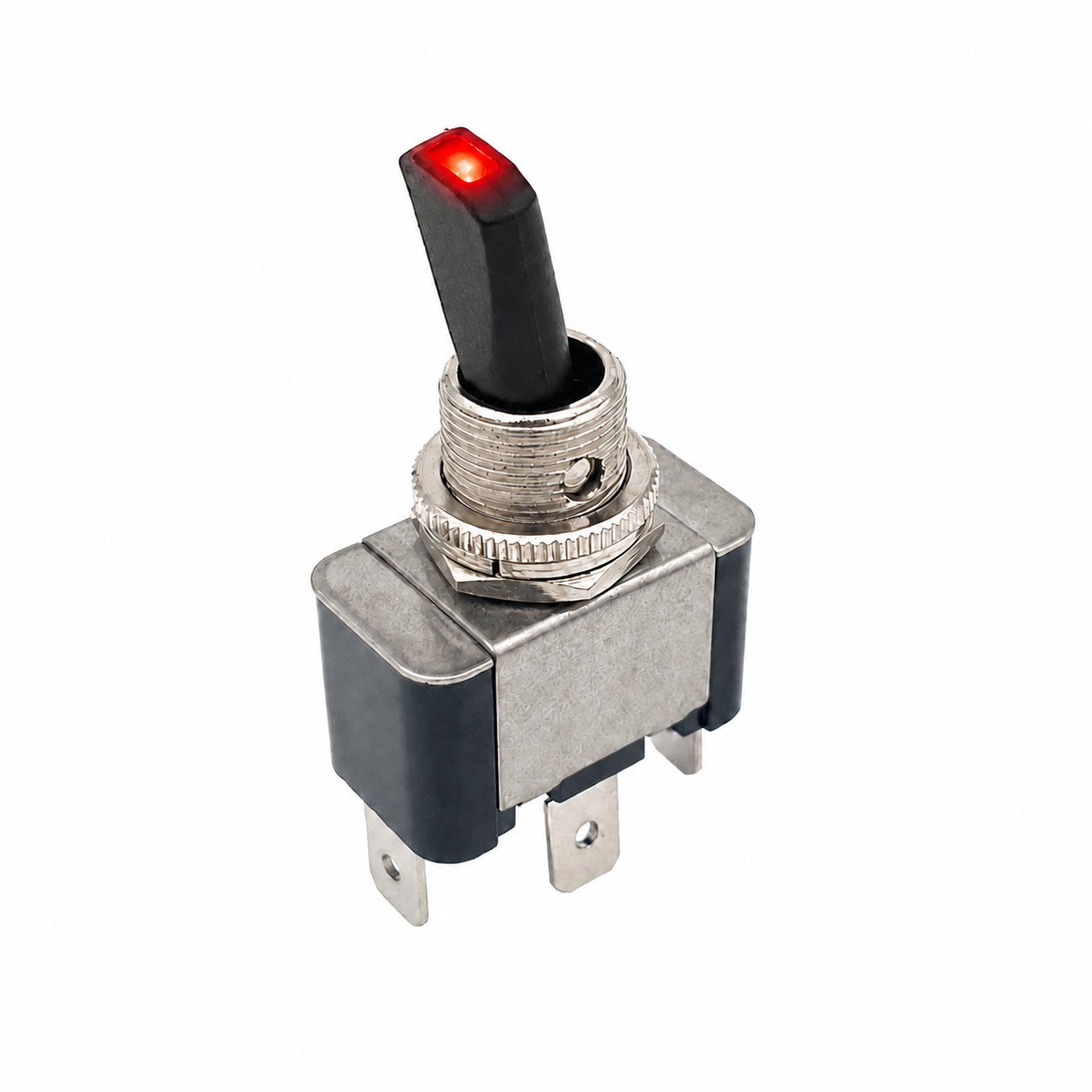

This heavy-duty LED toggle switch provides latching ON/OFF control for a single 12V circuit. The built-in red LED gives a clear visual indication when the controlled circuit is active.
Key Features
- Latching ON/OFF SPST switching
- 30A current rating at 12VDC
- Red LED status indication
- Compact 12mm panel mounting
- Three 6.3mm spade terminals
Specifications
- Part number: TS-011R
- Switch action: Latching ON/OFF
- Circuit: SPST (single pole, single throw)
- Current rating: 30A at 12VDC
- Terminals: Three 6.3mm spade terminals

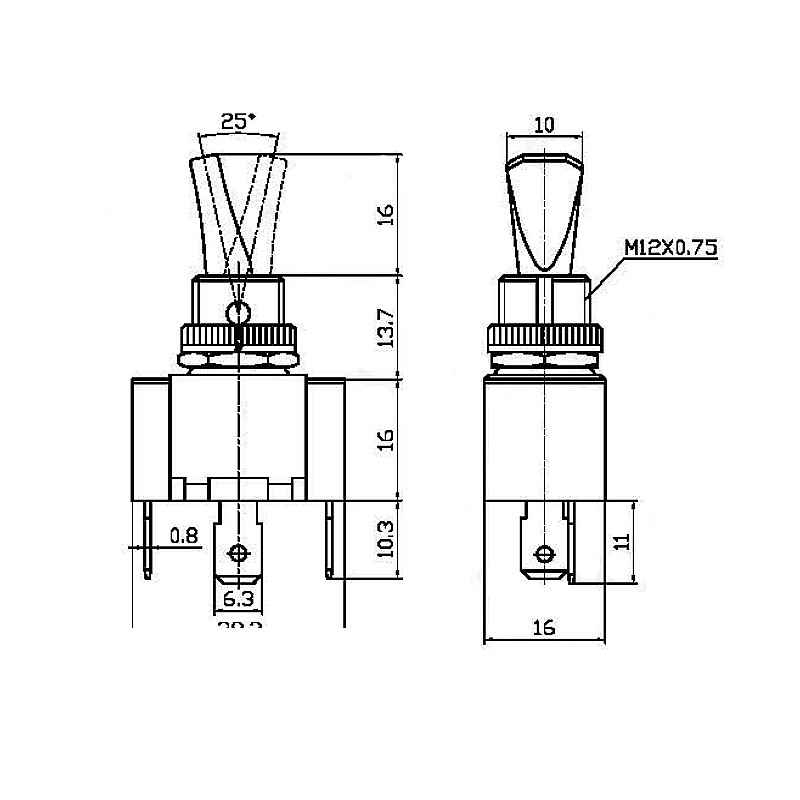

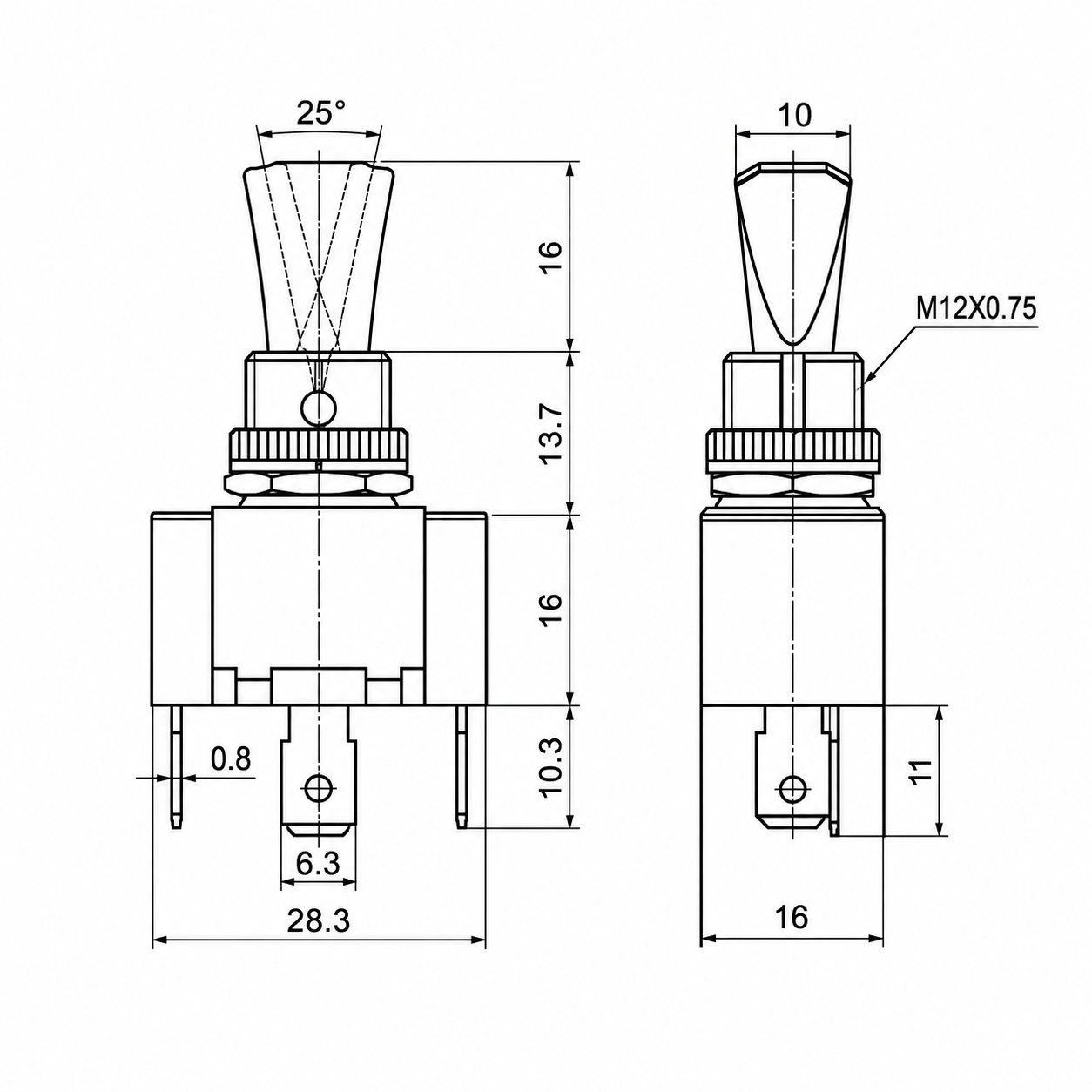

- Panel cut-out: 12mm diameter
- Indicator: Red LED
Applications
- Automotive and 4WD accessory controls
- Marine and caravan switch panels
- Lighting, pumps and auxiliary circuits within the rated load
- Machinery and equipment control panels
Selection and Wiring
Confirm the 12VDC supply, connected load including inrush current, terminal arrangement and mounting dimensions before installation. Isolate power before wiring, observe LED polarity, and use suitable cable, circuit protection and a relay where the application requires it.
