Description

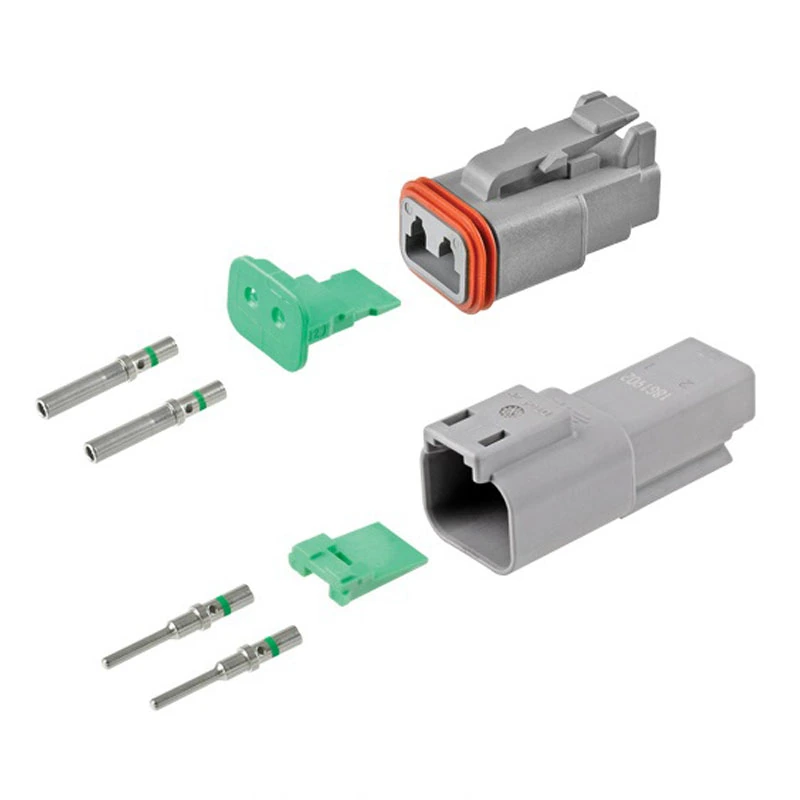

The DEUTSCH DT2-1 is a 2-way (2-pin) DT Series full connector kit for cable-to-cable connections in automotive and industrial wiring. It includes a mating plug and receptacle, wedgelocks, and green-band pin and socket contacts.
This kit supplies both sides of one connection for assembly onto your wiring. Match the cavity count and housing keying when selecting mating components.
Key Benefits
- Genuine TE Connectivity DEUTSCH housings, wedgelocks and contacts supplied in one kit
- Both mating housings and their contacts supplied together
- DT Series environmental seals help protect correctly assembled and mated connections from moisture and dirt
- Positive latch and secondary wedgelock provide secure mating and contact retention
- Serviceable crimp-contact design for vehicle, equipment and machinery wiring
Specifications
- Kit part number: DT2-1
- Connector family: DEUTSCH DT Series
- Positions: 2
- Kit type: Full Connector Kit
- Contact size: 16
- Contacts: green-band pins and sockets
- DT Series maximum contact current: 13A; allowable circuit current depends on wire size, temperature and application
- DT Series operating temperature: −55°C to +125°C
- Housing construction: thermoplastic with silicone seals
- Termination: crimp; select tooling and wire insulation size to suit the supplied contacts and seals
