Description
The DEUTSCH DTM12-1 is a 12-way full connector kit for compact, lower-current wiring connections. Supplied as loose components, the kit provides both mating housings, secondary locks and solid crimp contacts for one complete connection.
Key Benefits
- Genuine TE Connectivity DEUTSCH components
- Twelve circuits in one serviceable connector pair
- Size 20 solid contacts for compact wiring applications
- Integrated latch and wedgelocks for secure assembly

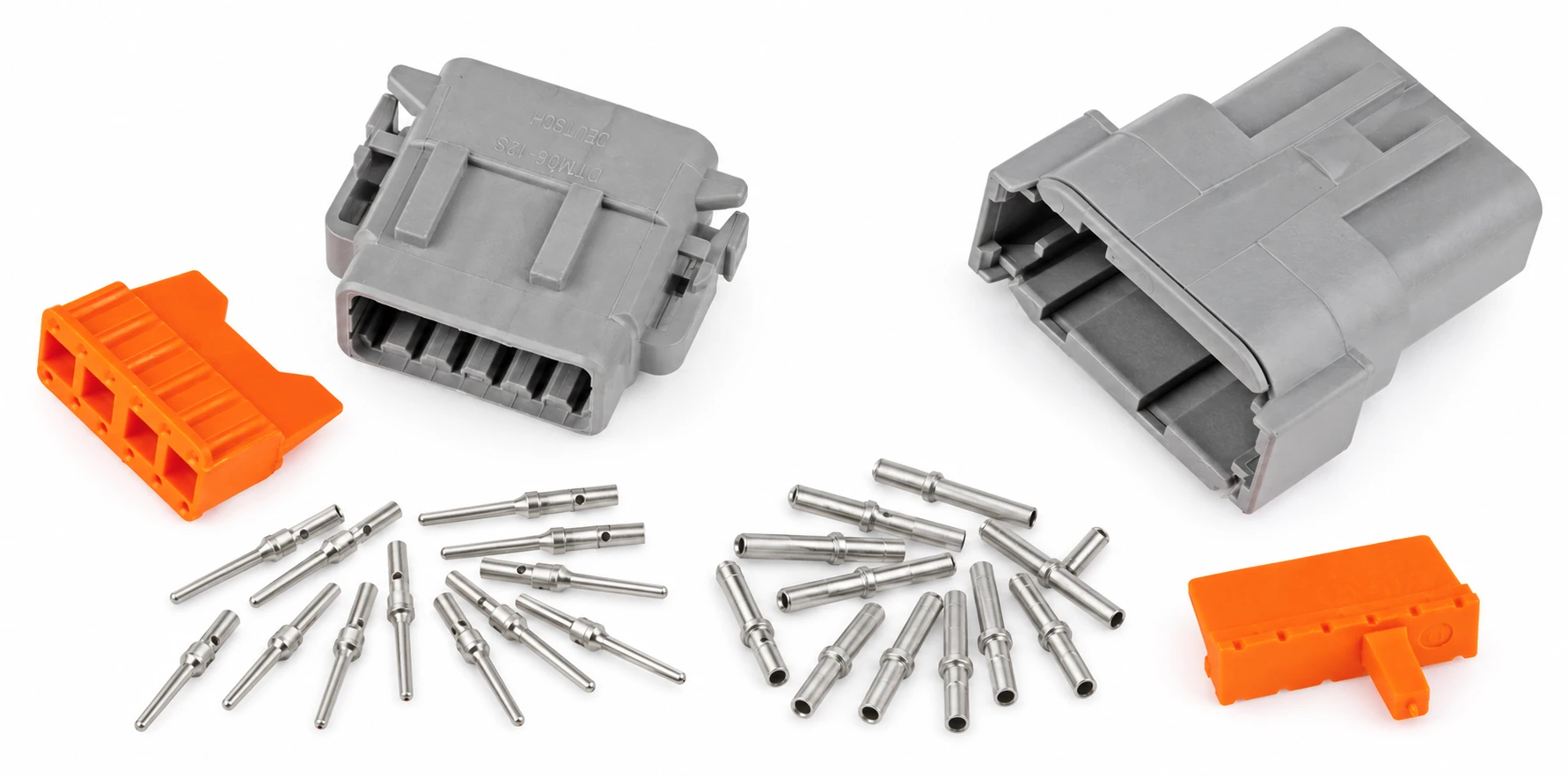

Kit Contents
- 1 × DTM06-12SA plug housing
- 1 × DTM04-12PA receptacle housing
- 1 × WM12S plug wedgelock
- 1 × WM12P receptacle wedgelock
- 12 × 0462-201-20141 socket contacts
- 12 × 0460-202-20141 pin contacts
Specifications
- Kit SKU: DTM12-1
- Series: DEUTSCH DTM
- Positions: 12
- Contact size: 20
- Maximum contact current: 7.5 A per contact; application limits depend on wiring and operating conditions
- Contact type: solid crimp
- Supplied quantity: one full connector kit, not a ten-pack
Selection & Installation
Confirm the required circuit count, contact wire range and seal compatibility before ordering. Use crimp tooling designed for the supplied size 20 solid contacts. Assemble and inspect both connector halves before use. DTM connectors are not interchangeable with DT or DTP connectors.
