Description
The DEUTSCH DTM6-2 is a 6-way DTM full connector kit with purple-band solid contacts. It provides matching plug and receptacle components for a serviceable connection for vehicle harnesses, machinery and industrial wiring.
Key Benefits
- Genuine TE Connectivity DEUTSCH connector components
- 6 circuits in a DTM connection
- Supplied wedgelocks secure correctly inserted contacts
- Housings, wedgelocks and contacts supplied together for assembly

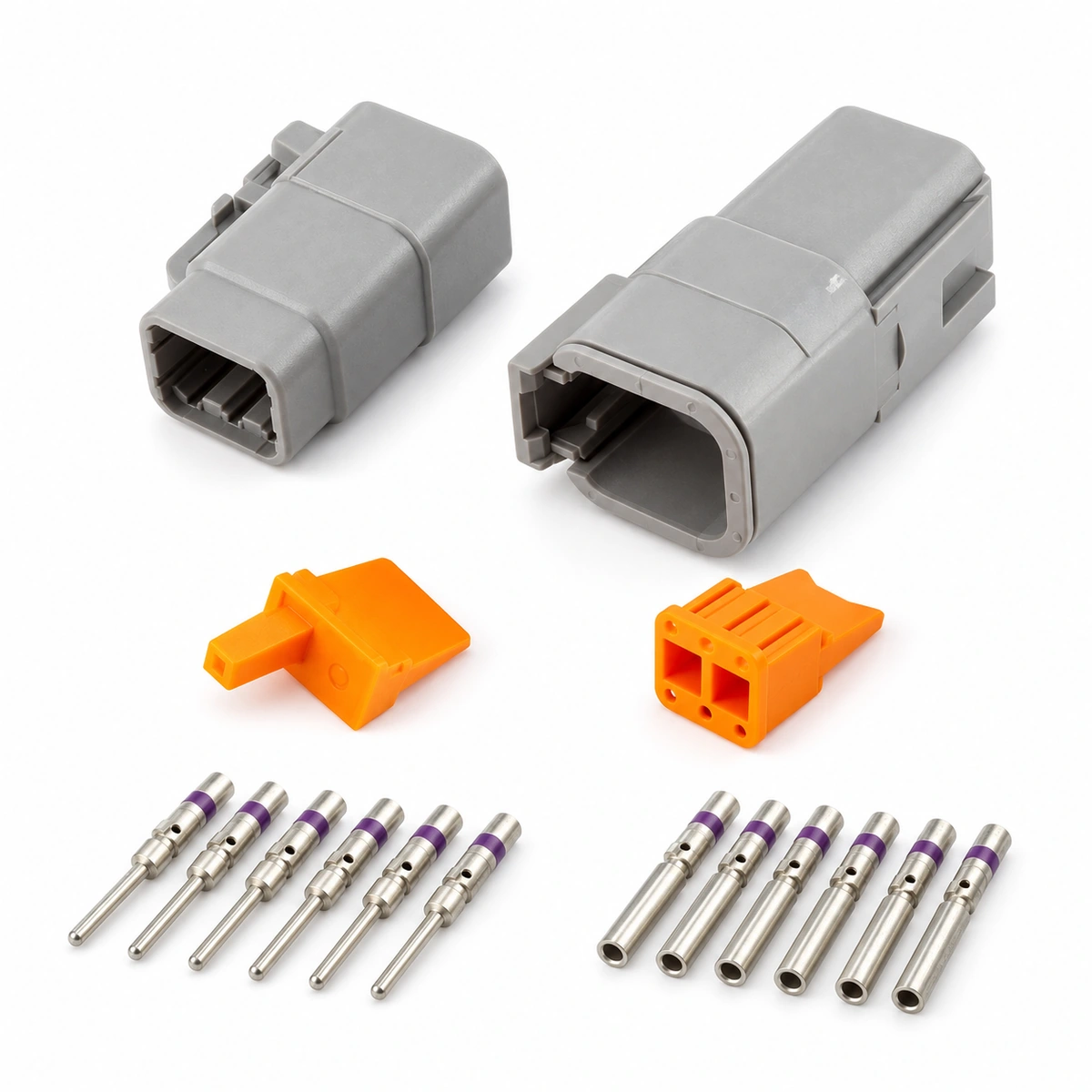

Kit Contents
- 1 × DTM04-6P receptacle housing
- 1 × DTM06-6S plug housing
- 1 × matching receptacle wedgelock
- 1 × matching plug wedgelock
- 6 × 0460-010-20141 purple-band solid pin contacts
- 6 × 0462-005-20141 purple-band solid socket contacts
Images illustrate the component types and may show sample contact quantities. The supplied quantities are listed above.
Specifications
- Kit SKU: DTM6-2
- Series: DEUTSCH DTM
- Positions: 6
- Contact size: 20
- Supplied contact type: purple-band solid contacts
- Housing colour: grey
- Termination: indent crimp, solid contacts
- Supply: unassembled components; wire and crimp tooling not included
Selection & Installation
Match the wire conductor size to the supplied contact and the insulation diameter to the housing seal. Select tooling for the actual contact type; F-crimp and solid contacts require different crimp tooling. Fully insert the contacts, fit the wedgelocks and confirm correct mating before service. Seal any unused cavities with suitable sealing plugs. Environmental protection depends on correct assembly, compatible wire and complete mating. These purple-band contacts are not a thin-wall housing modification.
