Description

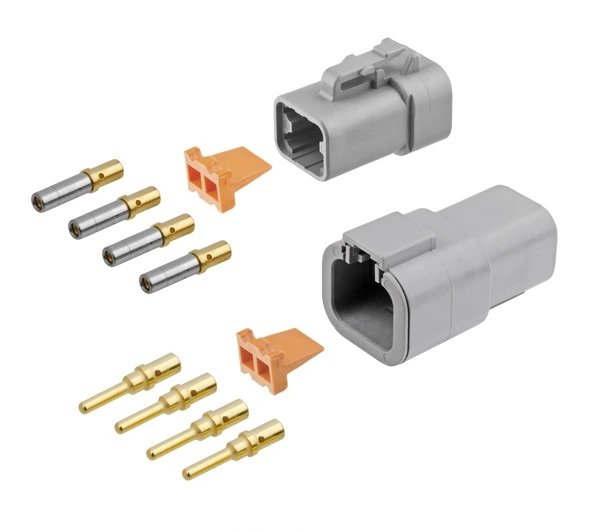

The DEUTSCH DTP4-4 is a 4-way DTP Series full connector kit supplied with gold-plated size 12 solid crimp contacts. It provides both mating connector halves and matching wedgelocks for one serviceable wiring connection.
Key Benefits
- Genuine TE Connectivity DEUTSCH housings, wedgelocks and contacts
- Gold-contact version of the 4-way DTP kit
- Integrated latch and secondary wedgelocks
- Environmental sealing when correctly wired and mated
Kit Contents
- 1 × DTP04-4P receptacle housing
- 1 × DTP06-4S plug housing
- 1 × WP-4P receptacle wedgelock
- 1 × WP-4S plug wedgelock
- 4 × 0460-220-1231 gold pin contacts
- 4 × 0462-210-1231 gold socket contacts
Specifications
- Kit SKU: DTP4-4
- Series: DEUTSCH DTP
- Positions: 4
- Contact size: 12
- Contact construction: solid crimp, gold plated
- Maximum contact current: 25 A per contact; circuit capacity depends on wire size, temperature and application
- Operating temperature: −55°C to +125°C
- Supplied quantity: one full connector kit
Selection & Installation
Confirm contact wire range and seal compatibility before ordering. Use crimp tooling suitable for the supplied size 12 solid contacts. DTP connectors are not interchangeable with DT or DTM connectors. Assemble and inspect both connector halves before use.
