Description
The DEUTSCH M36-18-20PN is a 20-way HD30 plug connector-half kit built around the genuine HD36-18-20PN housing. It supplies pin contacts for crimp termination and normal seals for a serviceable circular connection on compatible vehicle, agricultural, off-highway and industrial wiring.
This is one connector half, not a full mating pair. The matching receptacle must be ordered separately. Plug/receptacle describes the housing style; pin/socket describes the contact type.
Key Benefits
- Genuine TE Connectivity DEUTSCH housing and contacts
- Cable-side plug with quick-connect bayonet coupling
- Aluminium shell with silicone seals
- Rear-inserted contacts are serviceable with suitable removal tools
- Seal variant N – normal seals

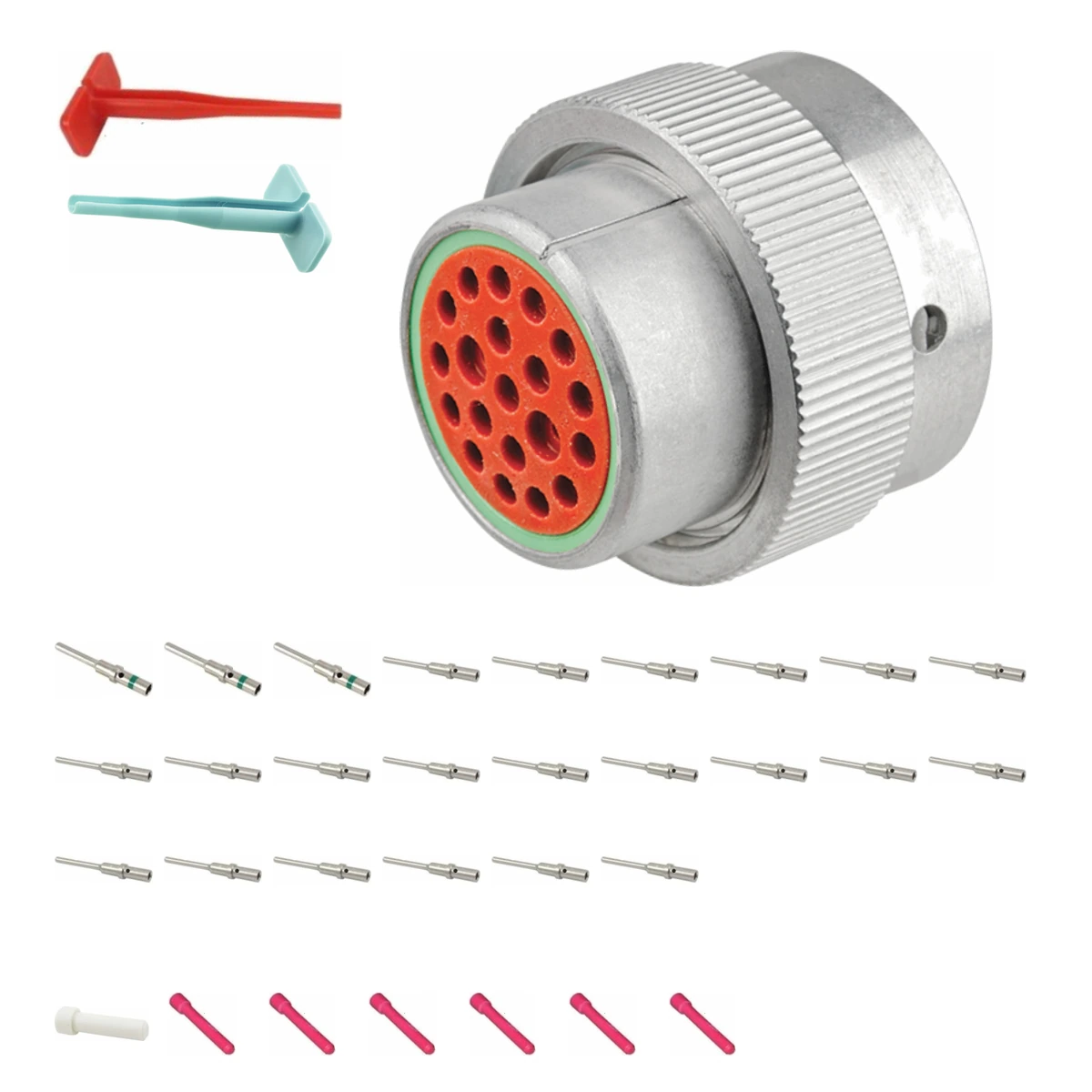

Kit Components
- 1 × HD36-18-20PN plug housing
- 1 × 0411-240-2005 contact removal tool
- 1 × 0411-310-1605 contact removal tool
- 3 × 0460-215-16141 solid pin contacts
- 21 × 0460-202-20141 solid pin contacts
- 6 × 0413-204-2005 sealing blanks
- 1 × 114017 sealing blanks
Supplied contact quantities include spares. The housing has 20 cavities; spare contacts do not increase its circuit count.
Specifications
- Kit SKU: M36-18-20PN
- Manufacturer housing part number: HD36-18-20PN
- Series: DEUTSCH HD30
- Housing style: Plug
- Contact type: Pin
- Shell size: 18
- Cavities: 20 (2 × size 16; 18 × size 20)
- Wire-seal code: N – normal seals
- Termination: crimp
- Operating temperature: −55°C to +125°C
- Environmental sealing requires correct wire insulation diameter, properly sealed unused cavities and a fully mated assembly
Contact Selection
- Size 16: 0460-215-16141, 14 AWG; rated up to 13 A per contact under the manufacturer’s specified conditions
- Size 20: 0460-202-20141, 20 AWG; rated up to 7.5 A per contact under the manufacturer’s specified conditions
Current ratings apply to individual contacts, not the combined connector. Conductor size, temperature, circuit loading and installation affect allowable current. The wire conductor must fit the contact and its insulation must fit the housing seal; these are separate checks.
Compatibility & Installation
Match the opposite housing style, shell size, cavity arrangement and complementary pin/socket contacts. Check keying, any modification suffix and the wire-seal requirements against the manufacturer documentation. N, T and E seal variants are not interchangeable wire-size specifications.
Crimp using tooling suitable for the supplied contacts, insert from the rear and check retention. Close unused cavities with the correct sealing blanks. Follow the HD30 assembly instructions before mating and locking the bayonet coupling. Wire, crimping tools, backshells, dust caps and the mating connector half are not included. Mounting hardware is not included.
