Description
The DEUTSCH M36-18-6SN-C030 is a 2-way HD30 plug connector-half kit built around the genuine HD36-18-6SN-C030 housing. It supplies socket contacts for crimp termination and normal seals for a serviceable circular connection on compatible vehicle, agricultural, off-highway and industrial wiring.
This is one connector half, not a full mating pair. The matching receptacle must be ordered separately. Plug/receptacle describes the housing style; pin/socket describes the contact type.
Key Benefits
- Genuine TE Connectivity DEUTSCH housing and contacts
- Cable-side plug with quick-connect bayonet coupling
- Aluminium shell with silicone seals
- Rear-inserted contacts are serviceable with suitable removal tools
- Seal variant N – normal seals
Kit Components

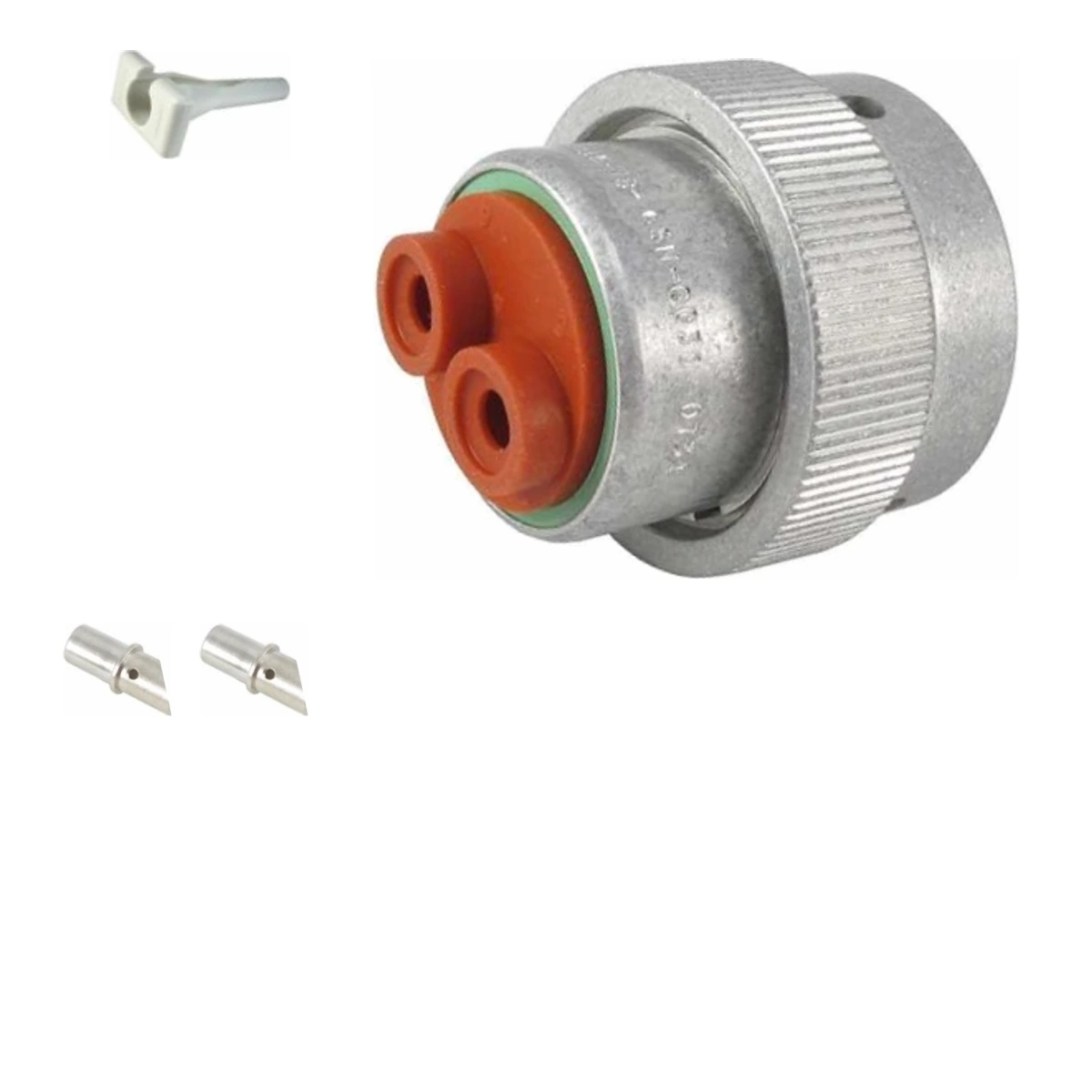

- 1 × HD36-18-6SN-C030 plug housing
- 1 × 114009 contact removal tool
- 2 × 0462-203-04141 solid socket contacts
C030 high-current modification: this is a two-cavity connector using two size 4 contacts, not the standard six-cavity arrangement suggested by the base part number. Match the C030 mating half. Size 16 contacts are not included.
Specifications
- Kit SKU: M36-18-6SN-C030
- Manufacturer housing part number: HD36-18-6SN-C030
- Series: DEUTSCH HD30
- Housing style: Plug
- Contact type: Socket
- Shell size: 18
- Cavities: 2 (2 × size 4)
- Wire-seal code: N – normal seals
- Termination: crimp
- Operating temperature: −55°C to +125°C
- Environmental sealing requires correct wire insulation diameter, properly sealed unused cavities and a fully mated assembly
Contact Selection
- Size 4: confirm the supplied contact wire range before crimping; rated up to 100 A per contact under the manufacturer’s specified conditions
Current ratings apply to individual contacts, not the combined connector. Conductor size, temperature, circuit loading and installation affect allowable current. The wire conductor must fit the contact and its insulation must fit the housing seal; these are separate checks.
Compatibility & Installation
Match the opposite housing style, shell size, cavity arrangement and complementary pin/socket contacts. Check keying, any modification suffix and the wire-seal requirements against the manufacturer documentation. N, T and E seal variants are not interchangeable wire-size specifications.
Crimp using tooling suitable for the supplied contacts, insert from the rear and check retention. Close unused cavities with the correct sealing blanks. Follow the HD30 assembly instructions before mating and locking the bayonet coupling. Wire, crimping tools, backshells, dust caps and the mating connector half are not included. Mounting hardware is not included.
