Description

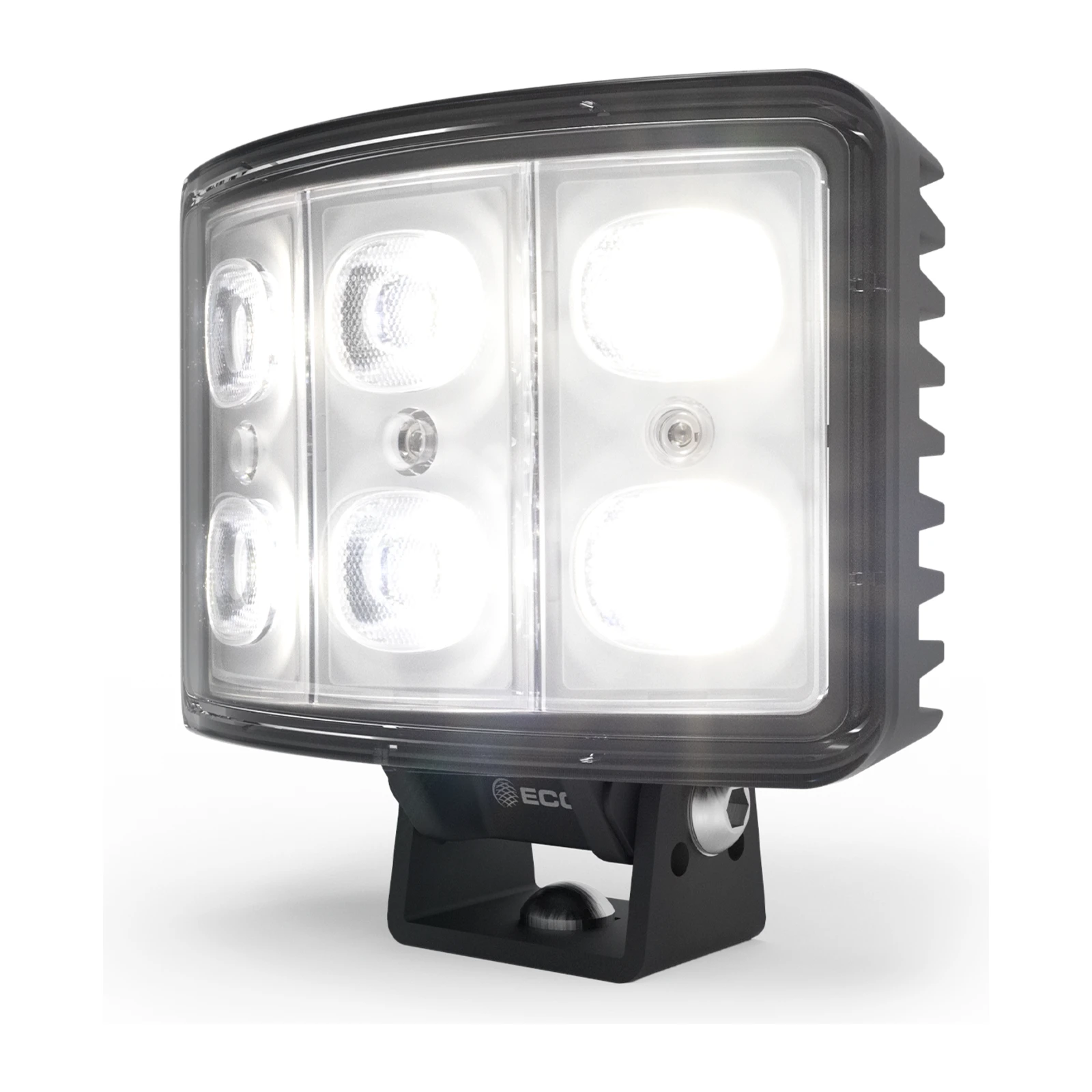

The ECCO EW2530 is a 6-LED square work lamp with a 130° wide flood beam. It is built for trucks, utes, service bodies, tow trucks, plant and machinery that need reliable light to work by.
The EW2530 throws very bright white light across a 130° pattern from a compact housing. It is CISPR 25 EMC compliant, has a built-in vent to prevent fogging and is rated for over 80,000 hours of maintenance-free life.
It runs on 12–24V DC and draws about 4.7 A. Mounting: 1-bolt.
Key Benefits
- 130° wide flood beam, 6000 raw lumens
- Built-in vent to prevent lens fogging
- Over 80,000 hours LED life
- CISPR 25 EMC compliant, IP67 and IP69K
- 5-year ECCO warranty
Specifications
- Part number – EW2530
- Series – ECCO EW2530 Series
- Type – Work Lamp
- Light colour – White
- Light output – 6000 (raw) lumens
- Beam – Wide flood (130°)
- Voltage – 12–24V DC
- Current draw – 4.7 A
- Dimensions – 130 × 122 × 67 mm
- Mounting – 1-bolt
- Approvals – CE, UKCA, ECE R10, CISPR 25, IP67, IP69K, RoHS
- Warranty – 5 years
Applications
- Tow trucks and service vehicles
- Utes, work trucks and headache racks
- Earthmoving, agricultural and mining equipment
- Trailers, tippers and mobile plant
