Description

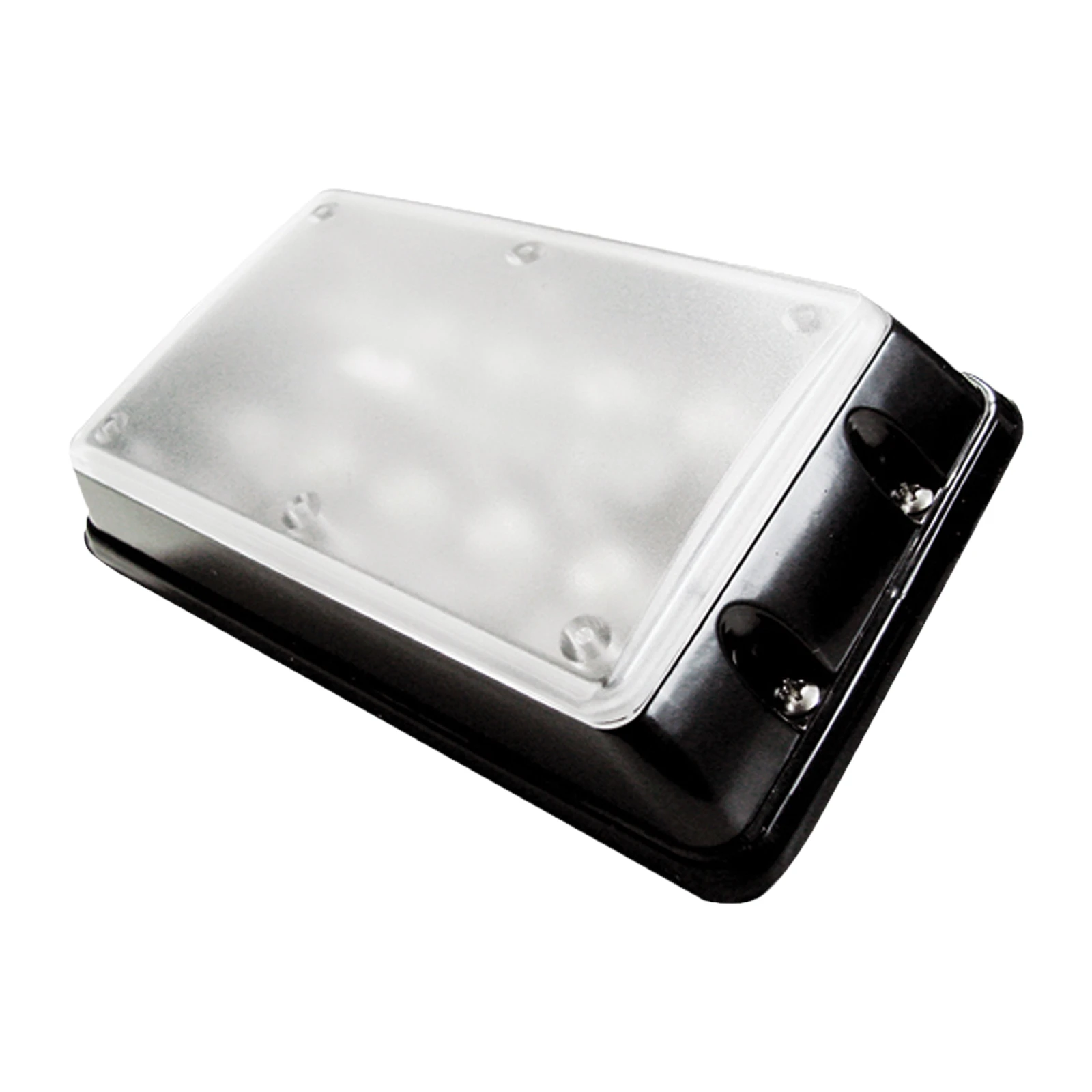

The ECCO EW4005 is a slimline 10-LED scene light for direct surface mounting. It is built for trucks, utes, service bodies, tow trucks, plant and machinery that need reliable light to work by.
The EW4000 Series gives an extremely bright flood beam with low current draw from a slim, robust aluminium case. Its 10 LEDs are rated for 100,000 hours, and CISPR 25 Level 3 certification keeps EMC interference to a minimum. The EW4006 version comes with a mounting bracket.
It runs on 10–30V DC. Mounting: 4-bolt (no bracket).
Key Benefits
- 10 high-output LEDs, flood beam
- Slimline aluminium housing
- LEDs rated to 100,000 hours
- CISPR 25 Level 3 for minimal EMC interference
- IP67 and IP69K sealed
Specifications
- Part number – EW4005
- Series – ECCO EW4000 Series
- Type – Scene Light
- Light colour – White
- Beam – Flood
- Voltage – 10–30V DC
- Dimensions – 159 × 98 × 36.5 mm
- Mounting – 4-bolt (no bracket)
- Approvals – CISPR 25 Level 3, CE, ECE R10, IP67, IP69K, RoHS
- Warranty – 5 years
Applications
- Service bodies and ute canopies
- Emergency and rescue vehicles
- Caravans, campers and 4WD setups
- Tow trucks and roadside assistance
