Description

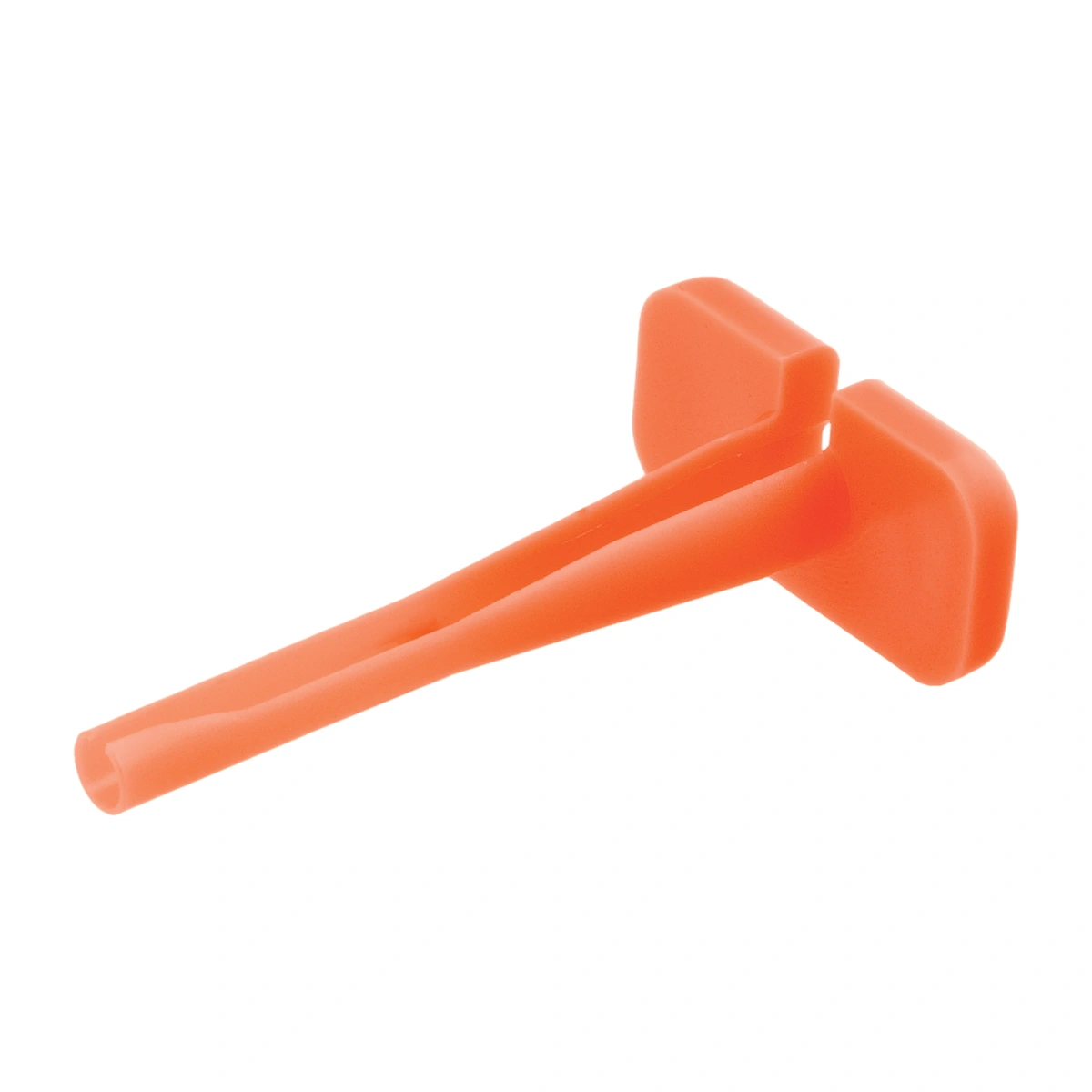

DEUTSCH 0411-337-1205 – Size 12 E-Seal Contact Removal Tool – Orange
The DEUTSCH 0411-337-1205 orange extraction tool releases compatible size 12 contacts from rear-release connector housings. Match the tool to the contact size, rear seal and wire insulation before removing a terminated contact.
Specifications
| Part number | 0411-337-1205 |
|---|---|
| Contact size | 12 |
| Tool colour | Orange |
| Material | Plastic |
| Wire range | 12–14 AWG |
| TE seal designation | E |
| Maximum wire insulation diameter | 4.01 mm |
Selection and use
Use TE instruction 408-151007 to select the exact tool for the connector. Slide the tool straight along the wire to release the contact; do not twist it or force it in at an angle. Replace a worn or damaged extraction tool.
What is supplied
One 0411-337-1205 tool. Contacts and connector housings are not included.
