Deutsch 12 Pin CAT Spec Plug Kit Gold Contacts (DT12-FP-CAT) DT Series

$35.50

Deutsch 12 Pin CAT Spec Plug Kit features the Caterpillar Specification (CAT-Spec) connectors that are easily identified by their black colour.

DT Series Catalog

In stock

Description

Deutsch 12 Pin CAT Spec Connector Kit features the Caterpillar Specification (CAT-Spec) connectors that are easily identified by their black colour.

These connectors have improved seal retention on the plug and a cap on the rear of the housing to retain each connector’s rear wire seal. They are used as OEM connectors on Caterpillar machinery, many Harley-Davidson motorcycles and other agricultural, commercial and automotive applications.

  • Integral connector latch
  • Rugged thermoplastic housing
  • -55°C to +125°C operating temperature
  • Silicone seals with enhanced retention
  • Gold plated copper alloy Crimp contacts Accepts 14 AWG (1mm2 to 2.0mm2) wire.
  • Current rating: 13 Amps all contacts
  • 1500V, 20G @ 10 to 2000 Hz
  • This product is a Genuine Deutsch product.

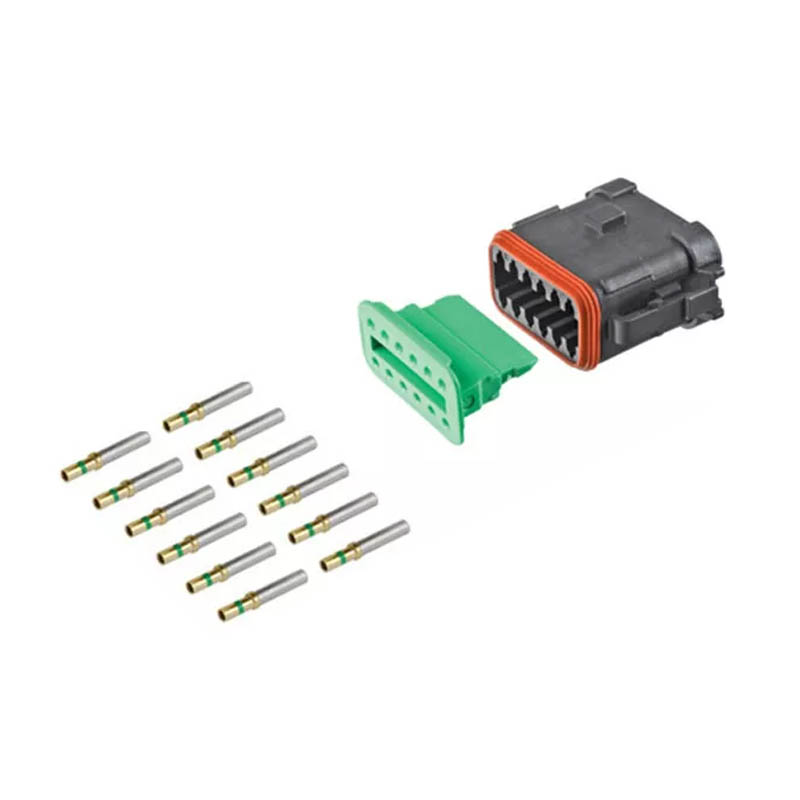

Parts in the Kit:

  • 1 x Deutsch CAT Spec Plug
  • 12 x Deutsch 0462-209-1631
  • 1 x Deutsch W12S-P012 Wedge
