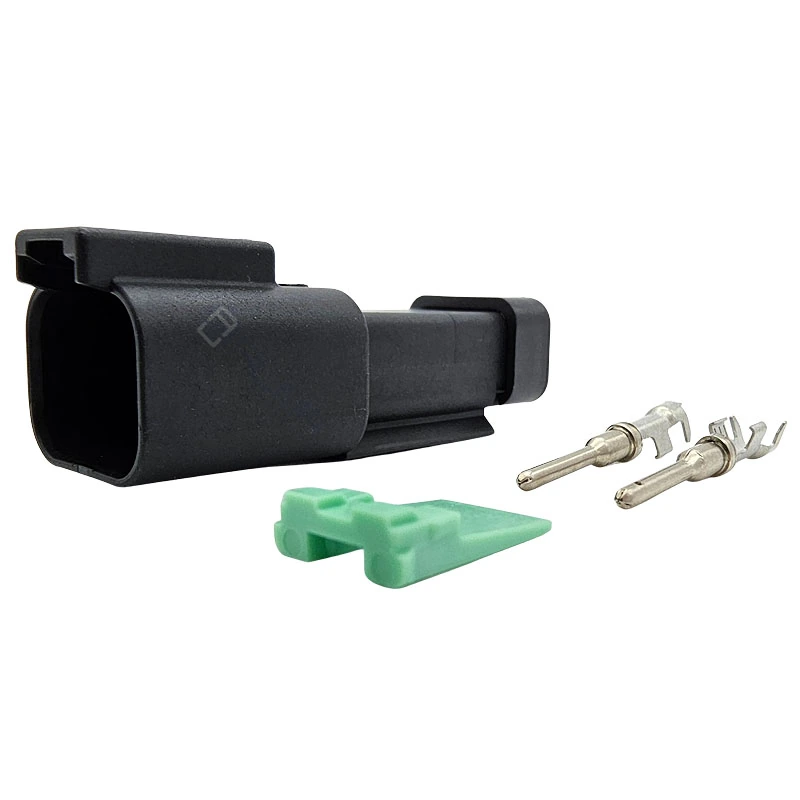

Deutsch DT04-2P DT Series 2 Pin Half Kit Crimp Terminal Genuine

$6.00

The Deutsch DT Series features the Caterpillar Specification (CAT-Spec) connectors that are easily identified by their black colour.

These connectors have improved seal retention on the plug and a cap on the rear of the housing to retain each connector’s rear wire seal. They are used as OEM connectors on Caterpillar machinery, many Harley-Davidson motorcycles and other agricultural, commercial and automotive applications.

  • Integral connector latch
  • Rugged thermoplastic housing
  • -55°C to +125°C operating temperature
  • Silicone seals with enhanced retention
  • Nickel plated Crimp contacts Accepts 14 – 18 AWG (0.75mm2 to 2.5mm2) wire.
  • Current rating: 13 Amps all contacts
  • 1500V, 20G @ 10 to 2000 Hz
  • This product is a Genuine Deutsch product.
DT Series Catalog

Description

The Deutsch series of Caterpillar electrical connectors have been specially developed to meet the requirements of heavy industries where failure is not an option. These durable connectors offer high performance and field-proven reliability in the harshest environments.

Electrical connectors like those used in Caterpillar mining machinery must be able to withstand rigorous conditions and all weather environments. Even minor faults in electric systems can lead to equipment failure which can bring entire operations to a halt. Expenses quickly add up through diagnostics, repairs and lost productivity which makes it essential to choose only the best in sealed electrical connectors.
