Description
The DEUTSCH DT12-1-L012 is a 12-way DT full connector kit with solid contacts. It provides matching plug and receptacle components for a serviceable connection for vehicle harnesses, machinery and industrial wiring. The receptacle has an integrated flange for fixed mounting.
Key Benefits
- Genuine TE Connectivity DEUTSCH connector components
- 12 circuits in a DT connection
- Supplied wedgelocks secure correctly inserted contacts
- Housings, wedgelocks and contacts supplied together for assembly
Kit Contents
- 1 × DT04-12PA-L012 receptacle housing
- 1 × DT06-12SA plug housing
- 1 × matching receptacle wedgelock
- 1 × matching plug wedgelock
- 12 × solid pin contacts
- 12 × solid socket contacts

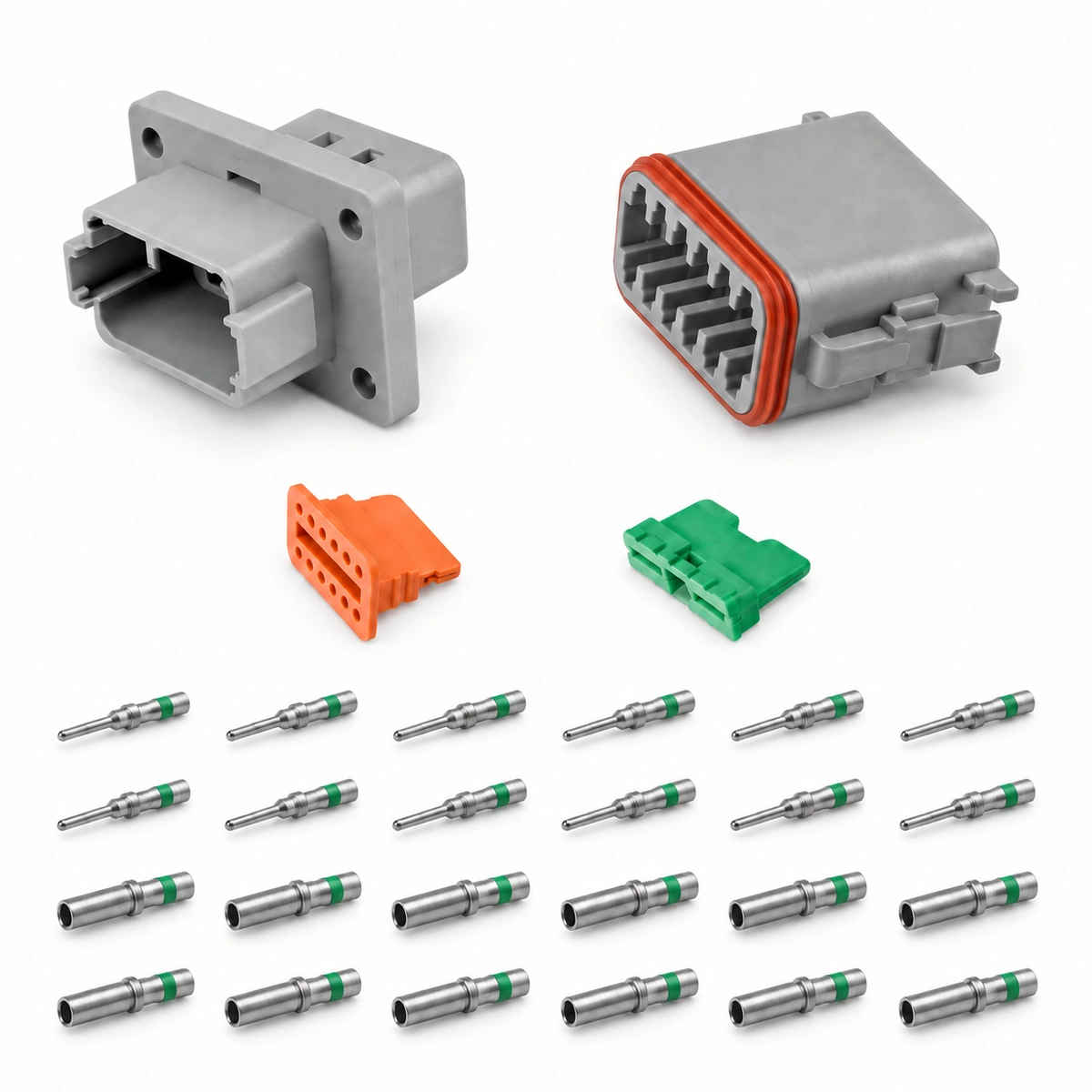

Images illustrate the component types and may show sample contact quantities. The supplied quantities are listed above.
Specifications
- Kit SKU: DT12-1-L012
- Series: DEUTSCH DT
- Positions: 12
- Contact size: 16
- Supplied contact type: solid contacts
- Housing colour: grey
- Termination: indent crimp, solid contacts
- Supply: unassembled components; wire and crimp tooling not included
Selection & Installation
Match the wire conductor size to the supplied contact and the insulation diameter to the housing seal. Select tooling for the actual contact type; F-crimp and solid contacts require different crimp tooling. Fully insert the contacts, fit the wedgelocks and confirm correct mating before service. Seal any unused cavities with suitable sealing plugs. Environmental protection depends on correct assembly, compatible wire and complete mating. Mounting hardware is not included.
