Description
The DEUTSCH DT2-1-E008 is a 2-way DT full connector kit with solid contacts. It provides matching plug and receptacle components for a serviceable connection for vehicle harnesses, machinery and industrial wiring. The housings have heatshrink-adapter modification for a compatible cable-exit boot or sleeve.
Key Benefits
- Genuine TE Connectivity DEUTSCH connector components
- 2 circuits in a DT connection
- Supplied wedgelocks secure correctly inserted contacts
- Housings, wedgelocks and contacts supplied together for assembly

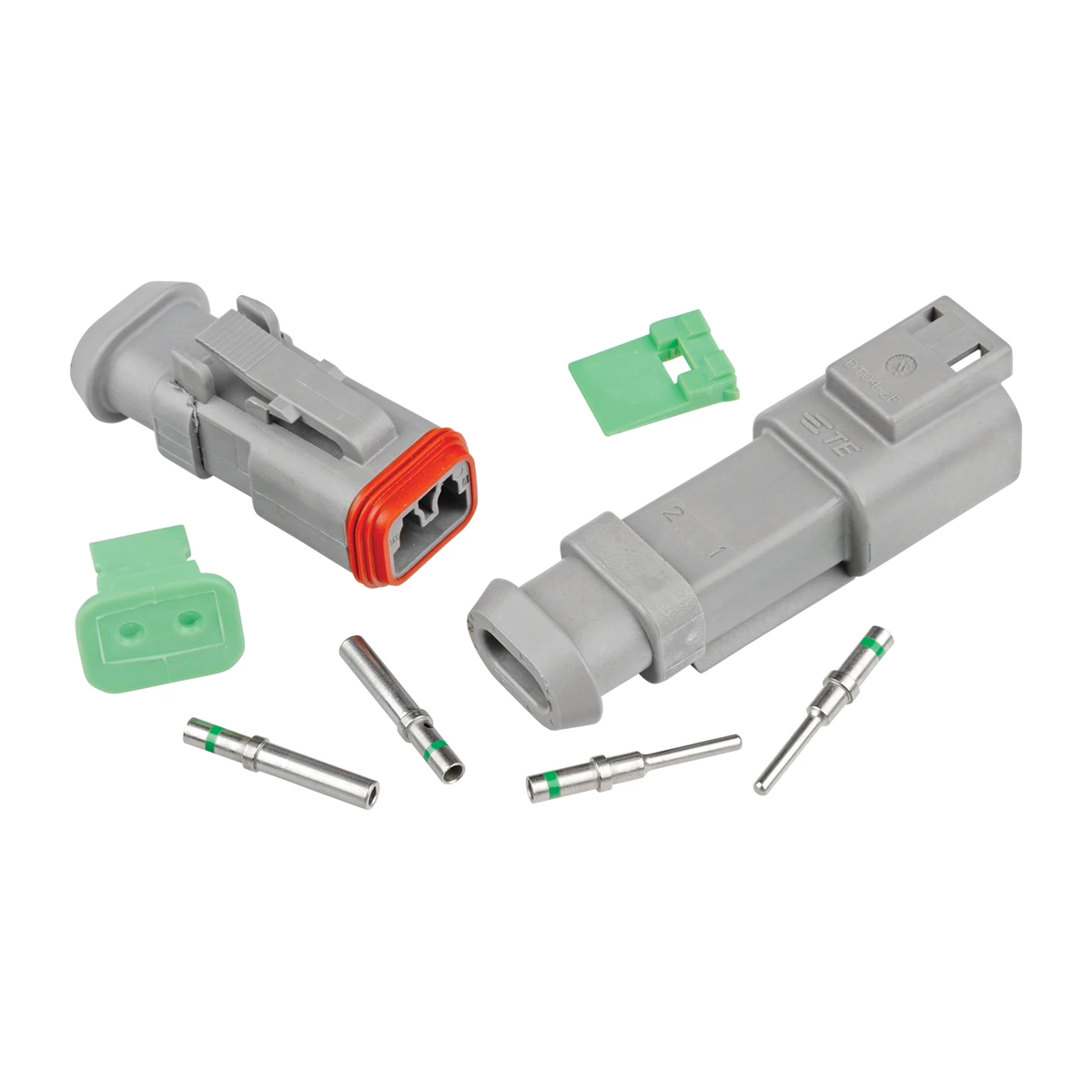

Kit Contents
- 1 × DT04-2P-E008 receptacle housing
- 1 × DT06-2S-E008 plug housing
- 1 × matching receptacle wedgelock
- 1 × matching plug wedgelock
- 2 × solid pin contacts
- 2 × solid socket contacts
Images illustrate the component types and may show sample contact quantities. The supplied quantities are listed above.
Specifications
- Kit SKU: DT2-1-E008
- Series: DEUTSCH DT
- Positions: 2
- Contact size: 16
- Supplied contact type: solid contacts
- Housing colour: grey
- Termination: indent crimp, solid contacts
- Supply: unassembled components; wire and crimp tooling not included
Selection & Installation
Match the wire conductor size to the supplied contact and the insulation diameter to the housing seal. Select tooling for the actual contact type; F-crimp and solid contacts require different crimp tooling. Fully insert the contacts, fit the wedgelocks and confirm correct mating before service. Seal any unused cavities with suitable sealing plugs. Environmental protection depends on correct assembly, compatible wire and complete mating. Heatshrink tubing, moulded boots and wire are not included.
