Description

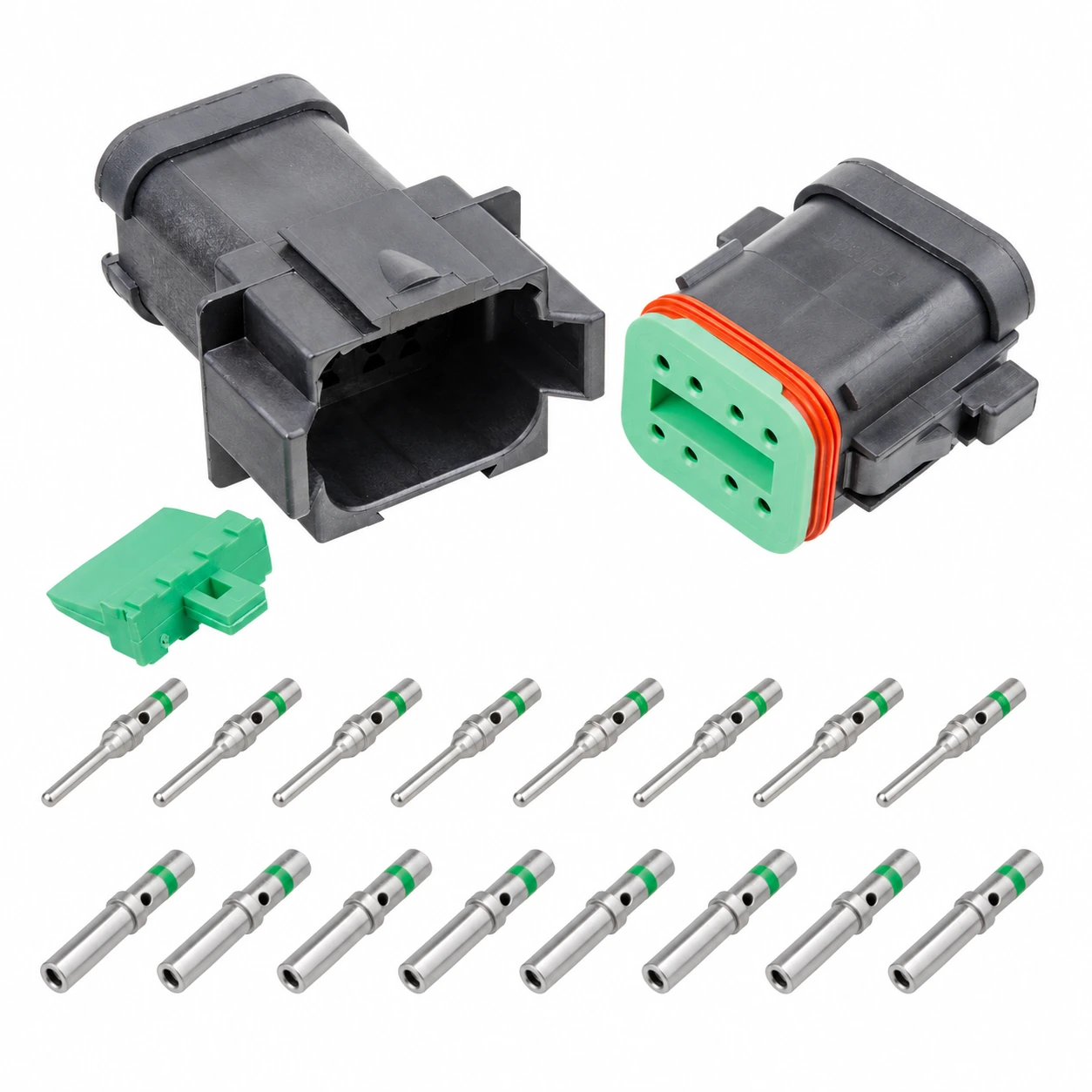

The DEUTSCH DT8-1-CAT is a 8-way DT Series CAT Spec full connector kit for compatible vehicle and equipment harnesses. It combines both black mating housings, their green wedgelocks and nickel-plated green-band size 16 contacts in one kit.
Use it for a serviceable sealed connection when the housing configuration and wire size match the application. CAT Spec describes the connector specification; it does not guarantee fitment to every Caterpillar machine.
Key Benefits
- Genuine TE Connectivity DEUTSCH housings, wedgelocks and contacts
- Both connector halves supplied for harness assembly or repair
- 8 pin contacts and 8 socket contacts with nickel plating and green-band identification
- Wedgelocks help retain and align correctly inserted contacts
- Environmental sealing when correctly assembled and mated
Kit Components
- 1 × DT04-08PA-E005 receptacle housing
- 1 × DT06-08SA-EP08 plug housing
- 1 × W8P receptacle wedgelock
- 1 × W8S-P012 plug wedgelock
- 8 × 0460-215-16141 pin contacts
- 8 × 0462-209-16141 socket contacts
Specifications
- Kit SKU: DT8-1-CAT
- Series: DEUTSCH DT CAT Spec
- Positions: 8
- Contact size: 16
- Contact rating: up to 13 A per contact, subject to wire size, temperature and installation
- Contact finish: nickel plated
- Housing: black thermoplastic
- Seals: silicone rubber
- Operating temperature: −55°C to +125°C
- Termination: crimp
Selection & Installation
Check the cavity count, keying, mating connector and wire compatibility before ordering. Use crimp tooling suitable for the supplied solid contacts, check contact seating, and fit the wedgelocks according to the DT assembly instructions. Wire and crimp tools are not included.
