Description
The DEUTSCH DT8-4-CAT is a 8-way DT Series CAT Spec full connector kit with gold-plated contacts. It is intended for compatible heavy-duty vehicle and equipment wiring where a serviceable sealed connection is required.
This kit supplies both connector halves. Check cavity count, keying and wire compatibility against the connector being replaced; CAT Spec does not imply universal fitment to every Caterpillar machine.
Key Benefits
- Genuine TE Connectivity DEUTSCH connector components
- Gold-plated crimp contacts for the electrical connection
- Wedgelock retention supports correct contact positioning
- Serviceable construction for harness assembly and repair
- Environmental sealing when correctly assembled and mated
Specifications
- Kit part number: DT8-4-CAT
- Family: DT Series CAT Spec
- Positions: 8
- Kit type: Full Connector Kit
- Contact size: 16
- Contact current rating: up to 13A per contact; actual circuit capacity depends on wire size, temperature and installation
- Contact finish: gold plated
- Housing: thermoplastic
- Seals: silicone rubber
- Operating temperature: −55°C to +125°C

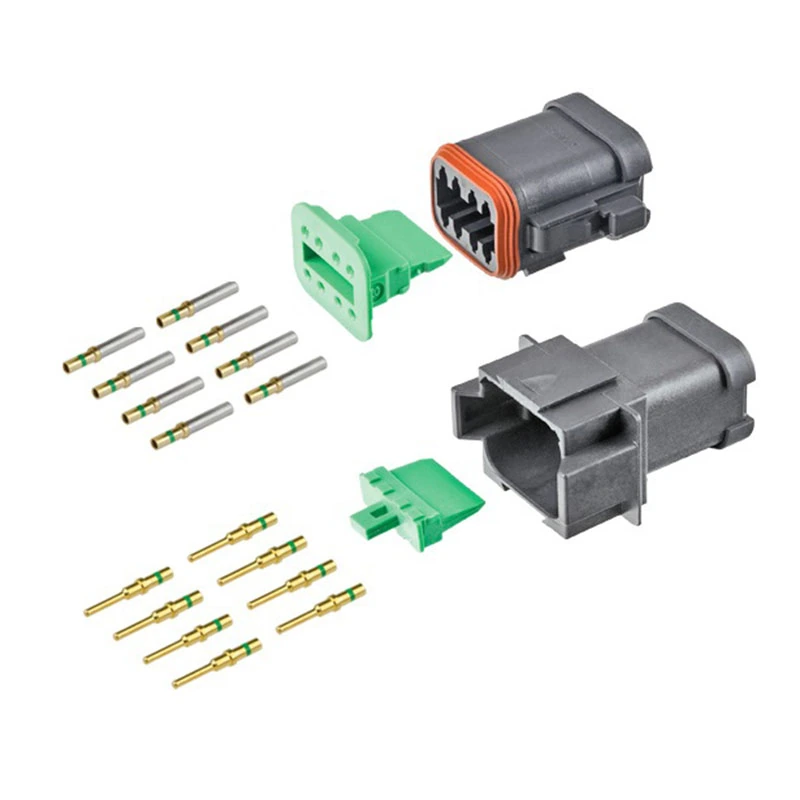

- Contents: 1 receptacle, 1 plug, matching wedgelocks, 8 pin contacts and 8 socket contacts
- Termination: crimp with tooling suited to the supplied contacts
