Description

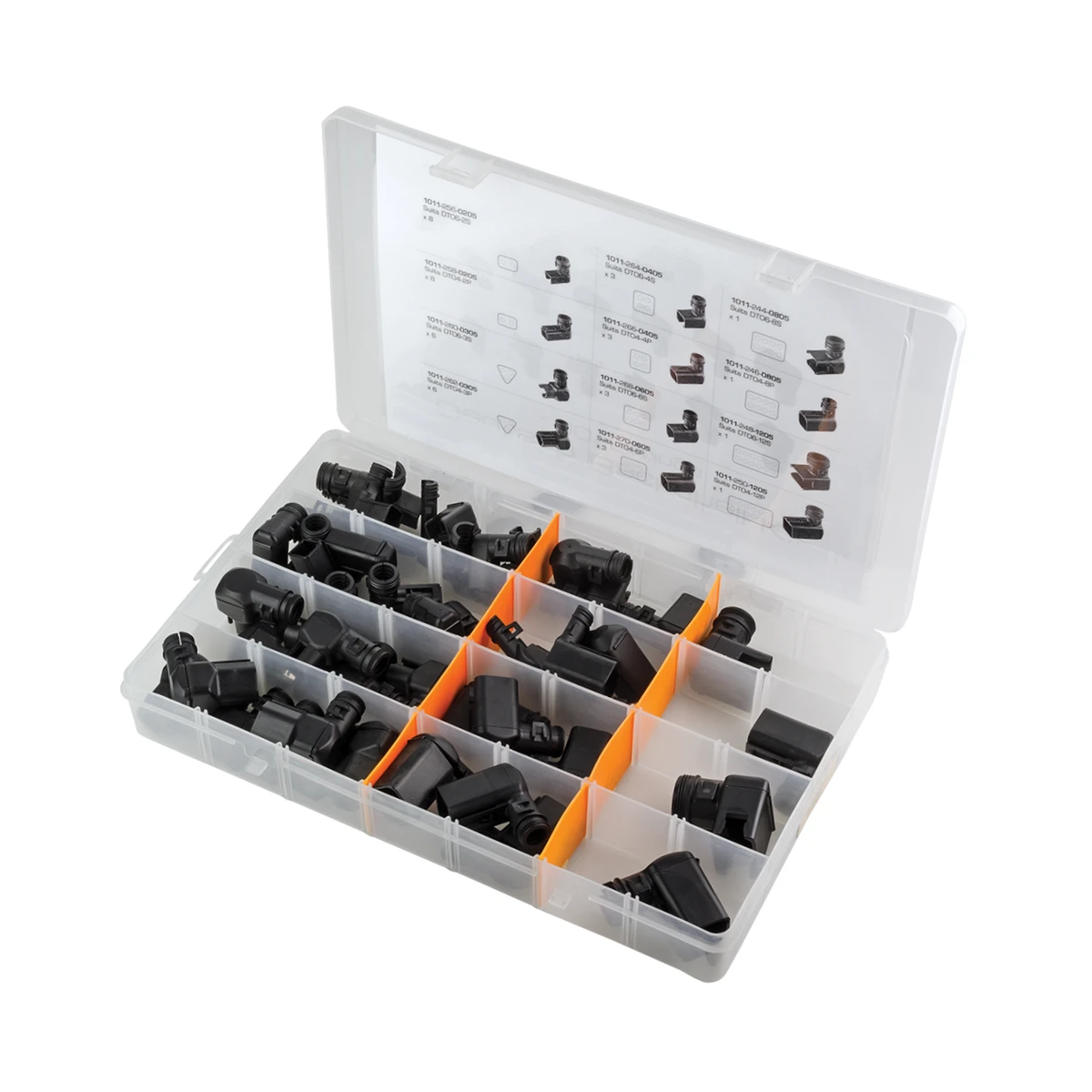

The DEUTSCH DTBS-1 is a 44-piece assortment of 90-degree DT backshells for routing and supporting wiring behind compatible 2, 3, 4, 6, 8 and 12-way connectors. It contains plug-side and receptacle-side accessories in a compartmented case. Connector housings and contacts are not included.
Key Benefits
- Genuine DEUTSCH backshell accessories
- Six connector sizes grouped in one organised case
- Plug and receptacle backshells supplied together
- Replenishable components for ongoing workshop use
Kit Contents
- 8 × 1011-258-0205 receptacle backshell, 2-way
- 8 × 1011-256-0205 plug backshell, 2-way
- 6 × 1011-262-0305 receptacle backshell, 3-way
- 6 × 1011-260-0305 plug backshell, 3-way
- 3 × 1011-266-0405 receptacle backshell, 4-way
- 3 × 1011-264-0405 plug backshell, 4-way
- 3 × 1011-270-0605 receptacle backshell, 6-way
- 3 × 1011-268-0605 plug backshell, 6-way
- 1 × 1011-246-0805 receptacle backshell, 8-way
- 1 × 1011-244-0805 plug backshell, 8-way
- 1 × 1011-250-1205 receptacle backshell, 12-way
- 1 × 1011-248-1205 plug backshell, 12-way
- 1 × organised storage case
Specifications
- Kit SKU: DTBS-1
- Series compatibility: DEUTSCH DT
- Accessory style: 90°
- Quantity: 44 backshells; storage case additional
- Connector sizes: 2, 3, 4, 6, 8 and 12-way
- Housing and contact components: not supplied
Selection & Installation
Match the backshell to the exact housing style, cavity count and cable exit required. Backshells support and protect cable routing; they do not replace connector seals or make an unsealed assembly waterproof. Follow the DT documentation for the associated connector assembly.
