Description

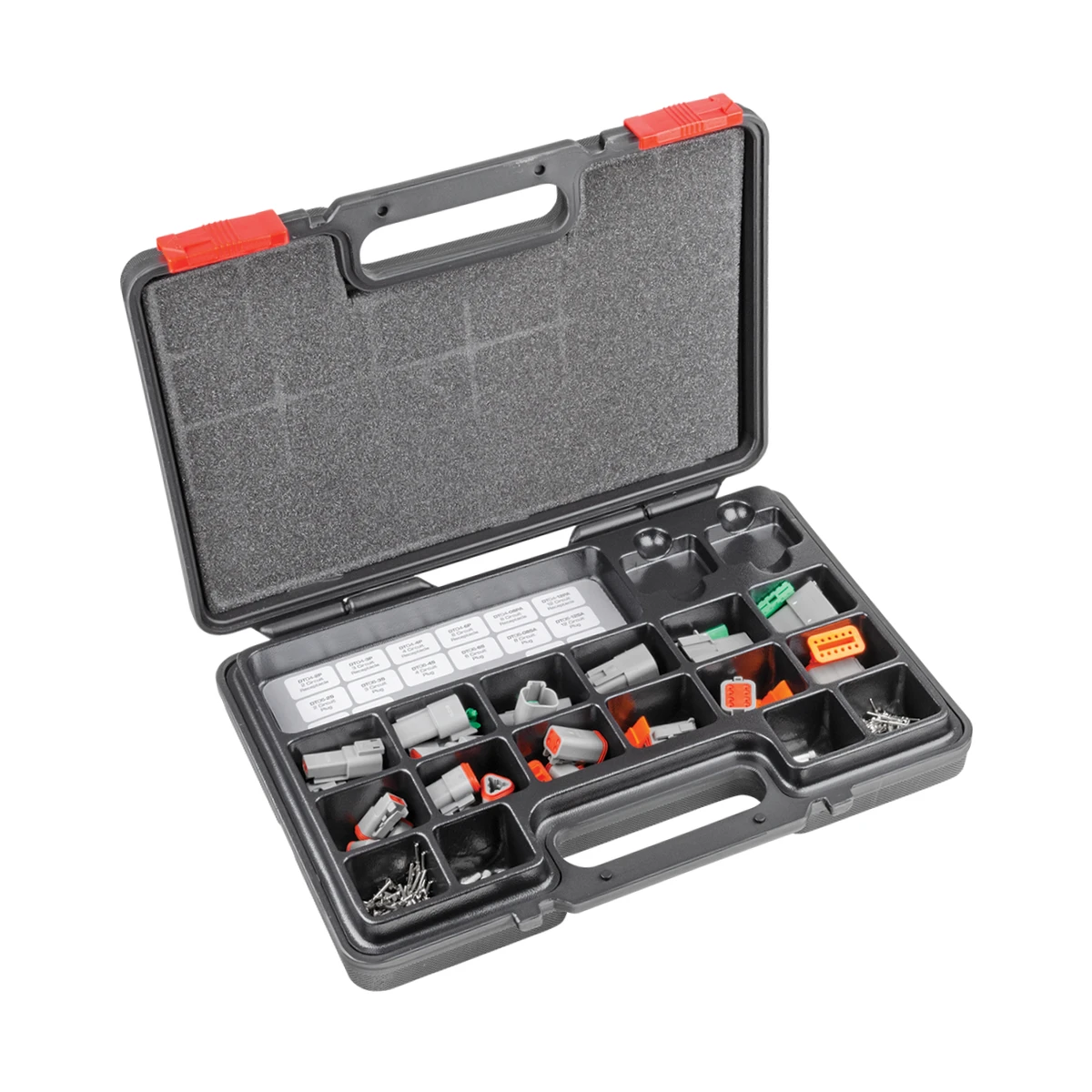

The DEUTSCH DTKIT brings DT connector housings, matching wedgelocks, F-crimp contacts and sealing plugs together for vehicle wiring repairs and harness assembly. This boxed assortment covers 2, 3, 4, 6, 8 and 12-way connections. Crimp tooling is sold separately.
Key Benefits
- Genuine DEUTSCH connector components
- Six connector sizes grouped in one organised case
- Matching housings and wedgelocks for serviceable wiring connections
- Replenishable components for ongoing workshop use
Kit Contents
- 3 each of 2-way DT receptacle and plug housings, each with its matching wedgelock
- 3 each of 3-way DT receptacle and plug housings, each with its matching wedgelock
- 2 each of 4-way DT receptacle and plug housings, each with its matching wedgelock
- 1 each of 6-way DT receptacle and plug housings, each with its matching wedgelock
- 1 each of 8-way DT receptacle and plug housings, each with its matching wedgelock
- 1 each of 12-way DT receptacle and plug housings, each with its matching wedgelock
- 40 × 1060-16-0122L stamped-and-formed pin contacts
- 40 × 1062-16-0122L stamped-and-formed socket contacts
- 12 × 114017 cavity sealing plugs
- 1 × organised storage case
Specifications
- Kit SKU: DTKIT
- Series: DEUTSCH DT
- Contact size: 16
- Current: up to 13 A per contact under the manufacturer’s specified conditions
- Termination: F-crimp, stamped-and-formed contacts
- Connector body: thermoplastic; integral seals: silicone
- Contact finish: nickel plated
- Tooling: not included
Selection & Installation
Choose the contact to suit the conductor size and the housing seal to suit the cable insulation diameter. Use the correct F-crimp tool and seal unused cavities. Environmental protection depends on correct assembly and full mating; it is not a rating for the storage case. The contact quantities are an assortment for selected repairs and do not populate every housing simultaneously.
