Cole Hersee 55014BX Toggle Switch for Blade Terminal Wiring
The Cole Hersee 55014BX toggle switch is a heavy-duty SPST On/Off toggle with two blade terminals. It suits basic accessory circuits in cars, trucks, and 4WDs. As a result, it works well anywhere you need a simple, reliable on/off switch without pre-wired leads.
- SPST On/Off Blade Terminal Toggle
- Nickel-plated brass stem, phenolic housing
- Two blade terminals for quick wiring
- Stem: thread 15/32-32, panel thickness up to 7mm
- Metal bat handle: up for on, down for off
Because the terminals are exposed blade type, you crimp your own connectors onto the wiring. For example, use it for a spotlight, driving light, or accessory circuit where you want to choose your own lead length. It is also a straightforward replacement for a worn or corroded standard toggle switch.
Fitting and Wiring Notes
This Cole Hersee 55014BX toggle switch mounts through a standard 15/32-32 threaded panel hole up to 7mm thick. Because it uses blade terminals rather than pre-wired leads, you crimp your own spade connectors onto the wiring. As a result, you control exactly how long each lead is and where it routes.

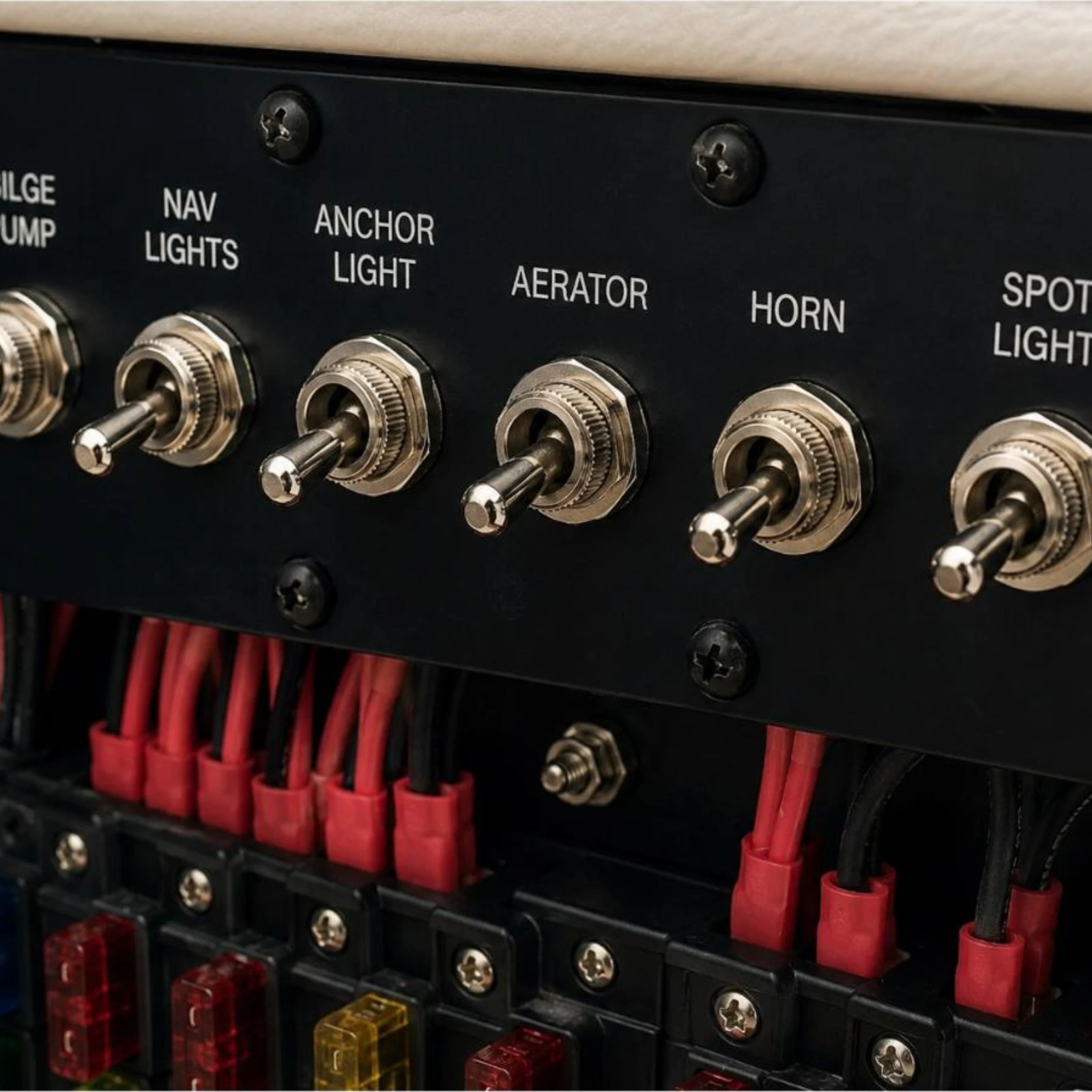

Therefore, this switch suits DIY dash and switch panel builds where pre-wired leads would leave excess cable to tuck away. For example, use it on a homemade switch panel, a light bar circuit, or a winch control line.
Specifications
- Voltage: 12/24V Dual Voltage
- Amperage: 25A@12V, 12A@24V
- Configuration: SPST
- Modes: On/Off
- Dimensions: H 29 x D 60 x W 16
- Terminals: Two Blade Terminals
