Description

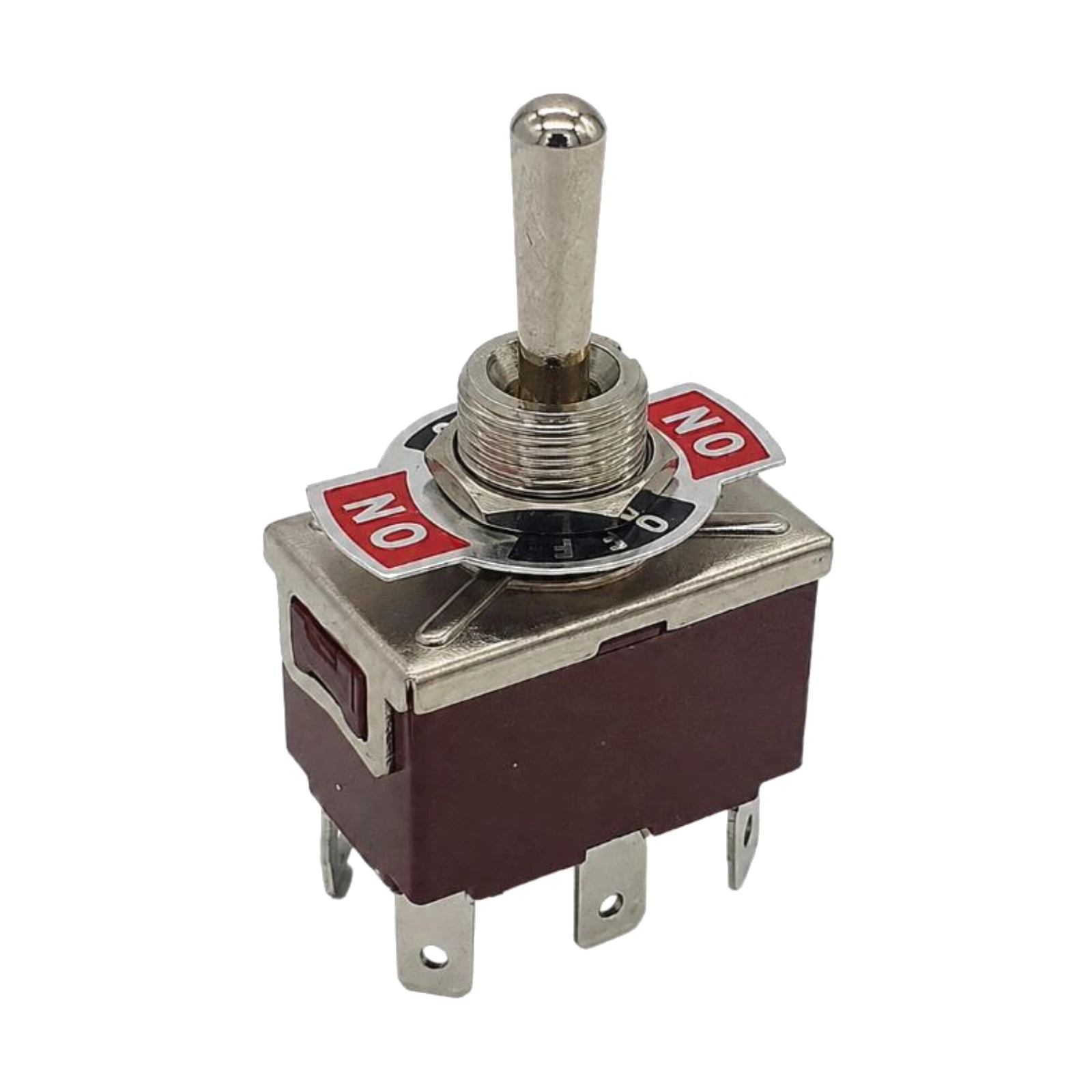

This DPDT (double pole, double throw) toggle switch controls two circuits at once and is momentary in both directions — hold the toggle one way to close one pair of circuits, hold it the other way for the second pair, and release to spring back to centre-off. That’s useful for jog controls that need to switch two circuits together, such as a dual-motor actuator or a light-plus-buzzer test function.

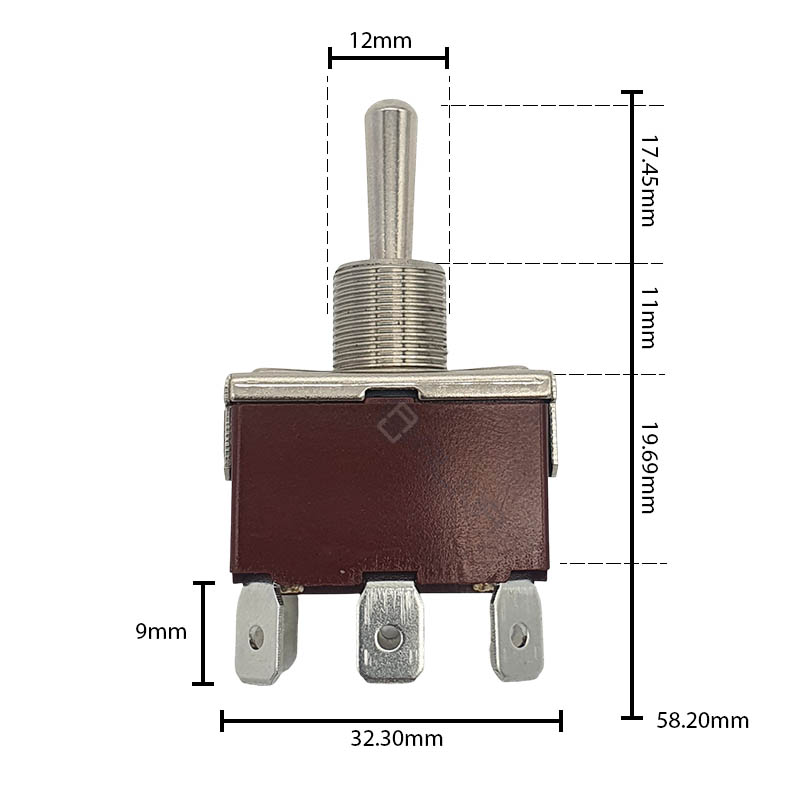

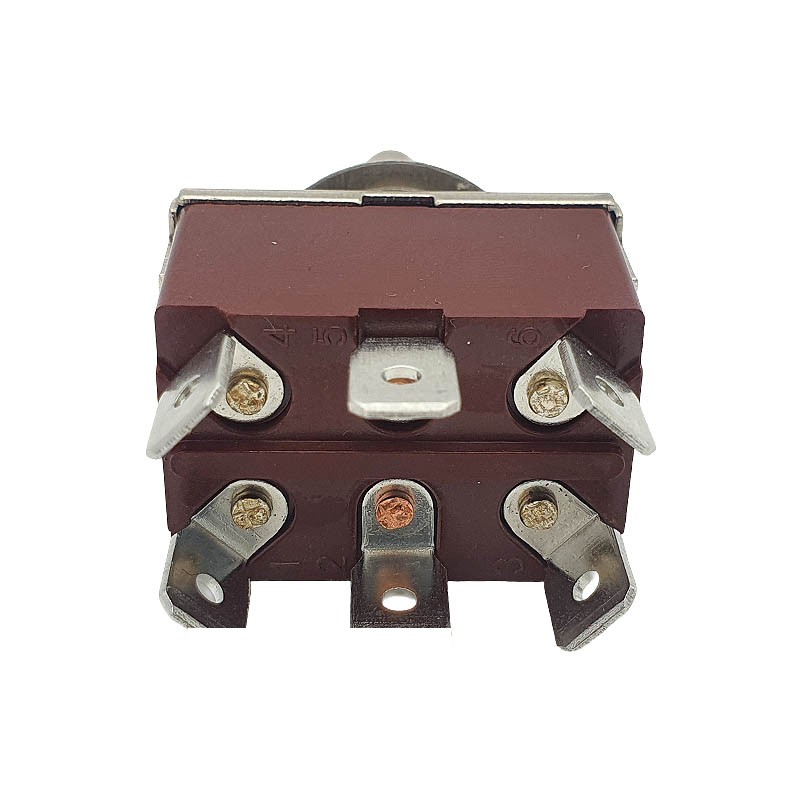

It’s rated 15A at 12V and 10A at 24V, with 6 x 6.3mm spade terminals for a secure, solderless connection, and a 12mm mounting hole.
Not sure if this switch suits your application? Contact us and we’ll help confirm compatibility before you order.
