Description
The DEUTSCH DTHD12-1 is a 25A single-pole (1-pin) DTHD full connector kit for heavy-duty cable-to-cable wiring. It supplies both mating housings and the pin and socket contacts for one connection.
This kit uses contact size 12. The number 12 in the kit code identifies the contact size, not the number of circuits. Match the contact size, conductor and insulation diameter when selecting components.
Key Benefits
- Genuine TE Connectivity DEUTSCH housings and contacts
- Disconnectable single-circuit connection for equipment and vehicle wiring
- Integrated housing latch holds the mating pair together
- Environmental sealing protects correctly assembled and mated connections
- Removable crimp contacts support servicing without replacing the complete harness
Specifications
- Kit part number: DTHD12-1
- Connector family: DEUTSCH DTHD Series
- Positions: 1 (single pole)
- Contact size: 12
- Maximum contact current: 25A; allowable circuit current depends on wire size, temperature and application

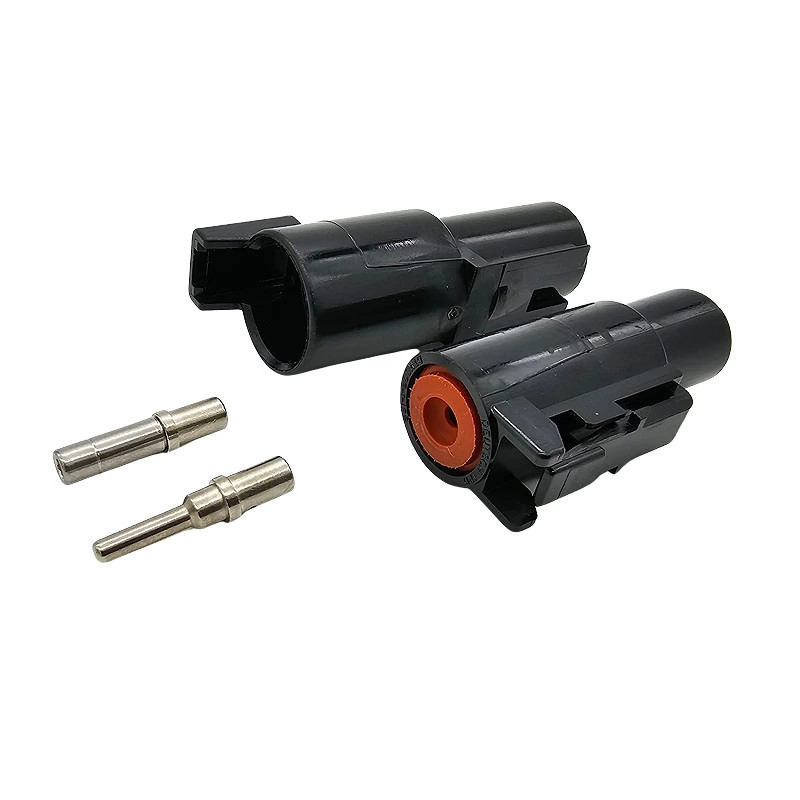

- Kit contents: 1 × DTHD04-1-12P receptacle, 1 × DTHD06-1-12S plug, 1 × 0460-204-12141 pin contact and 1 × 0462-203-12141 socket contact
- Connection: wire-to-wire, in-line
- Housing and seals: thermoplastic housing with silicone rubber grommets
- Operating temperature: −55°C to +125°C
- Termination: crimp; select wire and tooling to suit the supplied contacts and seals
