Description

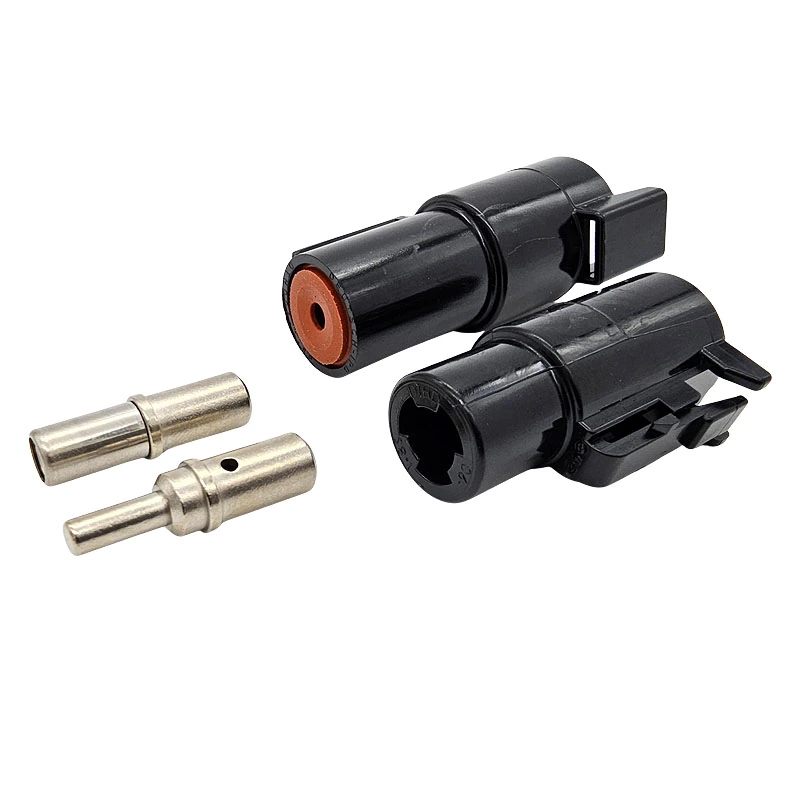

The DEUTSCH DTHD8-1 is a 60A single-pole (1-pin) DTHD full connector kit for heavy-duty cable-to-cable wiring. It supplies both mating housings and the pin and socket contacts for one connection.
This kit uses contact size 8. The number 8 in the kit code identifies the contact size, not the number of circuits. Match the contact size, conductor and insulation diameter when selecting components.
Key Benefits
- Genuine TE Connectivity DEUTSCH housings and contacts
- Disconnectable single-circuit connection for equipment and vehicle wiring
- Integrated housing latch holds the mating pair together
- Environmental sealing protects correctly assembled and mated connections
- Removable crimp contacts support servicing without replacing the complete harness
Specifications
- Kit part number: DTHD8-1
- Connector family: DEUTSCH DTHD Series
- Positions: 1 (single pole)
- Contact size: 8
- Maximum contact current: 60A; allowable circuit current depends on wire size, temperature and application
- Kit contents: 1 × DTHD04-1-8P receptacle, 1 × DTHD06-1-8S plug, 1 × 0460-204-08141 pin contact and 1 × 0462-203-08141 socket contact
- Connection: wire-to-wire, in-line
- Housing and seals: thermoplastic housing with silicone rubber grommets
- Operating temperature: −55°C to +125°C
- Termination: crimp; select wire and tooling to suit the supplied contacts and seals
