Description

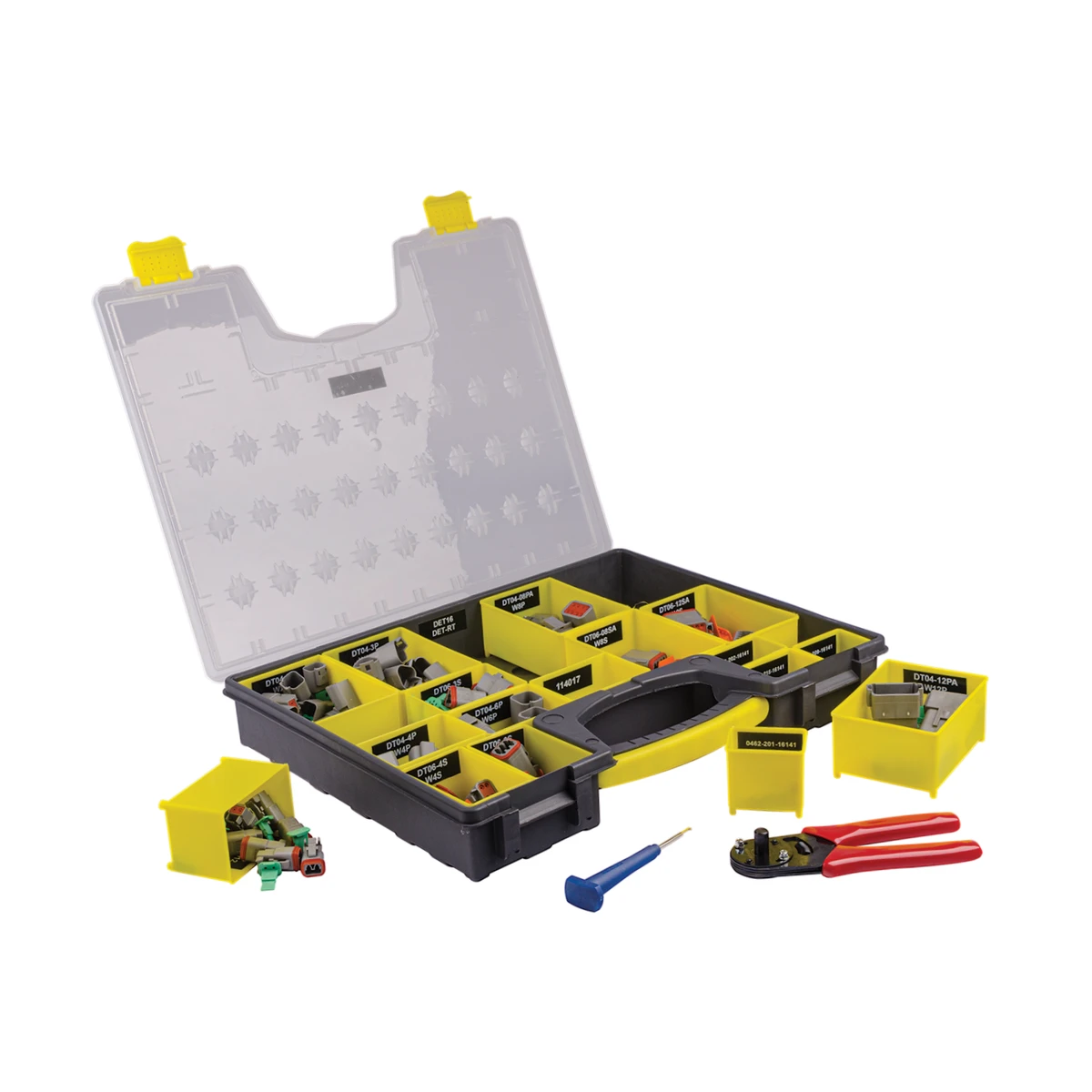

The DEUTSCH DTKIT-WORKSHOP brings DT connector housings, matching wedgelocks, solid contacts and sealing plugs together for vehicle wiring repairs and harness assembly. This 604-piece workshop assortment covers 2, 3, 4, 6, 8 and 12-way connections and includes crimping and removal tools.
Key Benefits
- Genuine DEUTSCH connector components
- Six connector sizes grouped in one organised case
- Matching housings and wedgelocks for serviceable wiring connections
- Included tooling for workshop assembly
Kit Contents
- 10 each of 2-way DT receptacle and plug housings, each with its matching wedgelock
- 10 each of 3-way DT receptacle and plug housings, each with its matching wedgelock
- 6 each of 4-way DT receptacle and plug housings, each with its matching wedgelock
- 6 each of 6-way DT receptacle and plug housings, each with its matching wedgelock
- 3 each of 8-way DT receptacle and plug housings, each with its matching wedgelock
- 3 each of 12-way DT receptacle and plug housings, each with its matching wedgelock
- 100 × 0460-215-16141 solid pin contacts
- 100 × 0462-209-16141 solid socket contacts
- 100 × 0460-202-16141 solid pin contacts
- 100 × 0462-201-16141 solid socket contacts
- 50 × 114017 cavity sealing plugs
- 1 × DET16 crimping tool
- 1 × DET-RT removal tool
- 1 × organised storage case
Specifications
- Kit SKU: DTKIT-WORKSHOP
- Series: DEUTSCH DT
- Contact size: 16
- Current: up to 13 A per contact under the manufacturer’s specified conditions
- Termination: indent crimp, solid contacts
- Connector body: thermoplastic; integral seals: silicone
- Contact finish: nickel plated
- Tooling: DET16 and DET-RT included
Selection & Installation
Choose the contact to suit the conductor size and the housing seal to suit the cable insulation diameter. Use the correct indent-crimp tool and seal unused cavities. Environmental protection depends on correct assembly and full mating; it is not a rating for the storage case.
