Description
The TB302E is a sealed DPDT toggle switch for momentary two-direction control in demanding environments. Both operating positions spring back to centre OFF when released.
Key Features
- Momentary (ON)-OFF-(ON) action on both sides
- DPDT switching controls two circuits together
- O-ring sealed shaft
- Nickel-plated brass actuator
- Silver-alloy contacts and 6.3mm blade terminals
Specifications
- Part number: TB302E
- Configuration: DPDT
- Switch positions: Momentary (ON)-OFF-(ON)
- Voltage range: 12-24VDC nominal systems
- Electrical rating: 20A at 4-14V; 15A at 15-28V
- Terminals: Six 6.3mm blade terminals
- Actuator material: Nickel-plated brass
- Contact material: Silver alloy
- Sealing: O-ring sealed shaft
Applications
- Winch and actuator jog controls

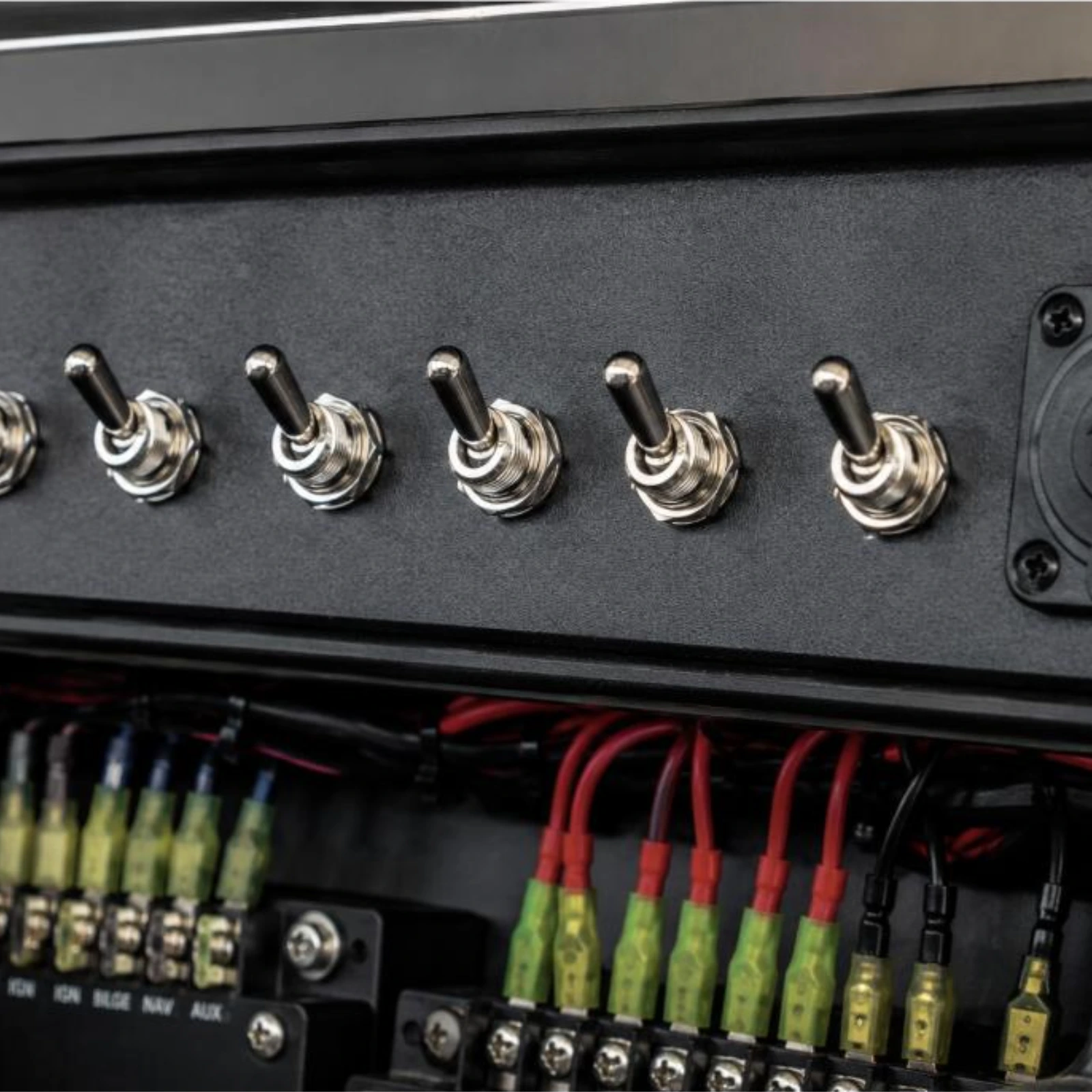

- Marine and exposed equipment panels
- Reversing motor controls
- Dual-circuit momentary functions
Installation Notes
This product is currently unavailable. Confirm any proposed replacement provides the same DPDT momentary action, voltage and current rating, terminal arrangement, mounting dimensions and environmental sealing before substitution.
