Description

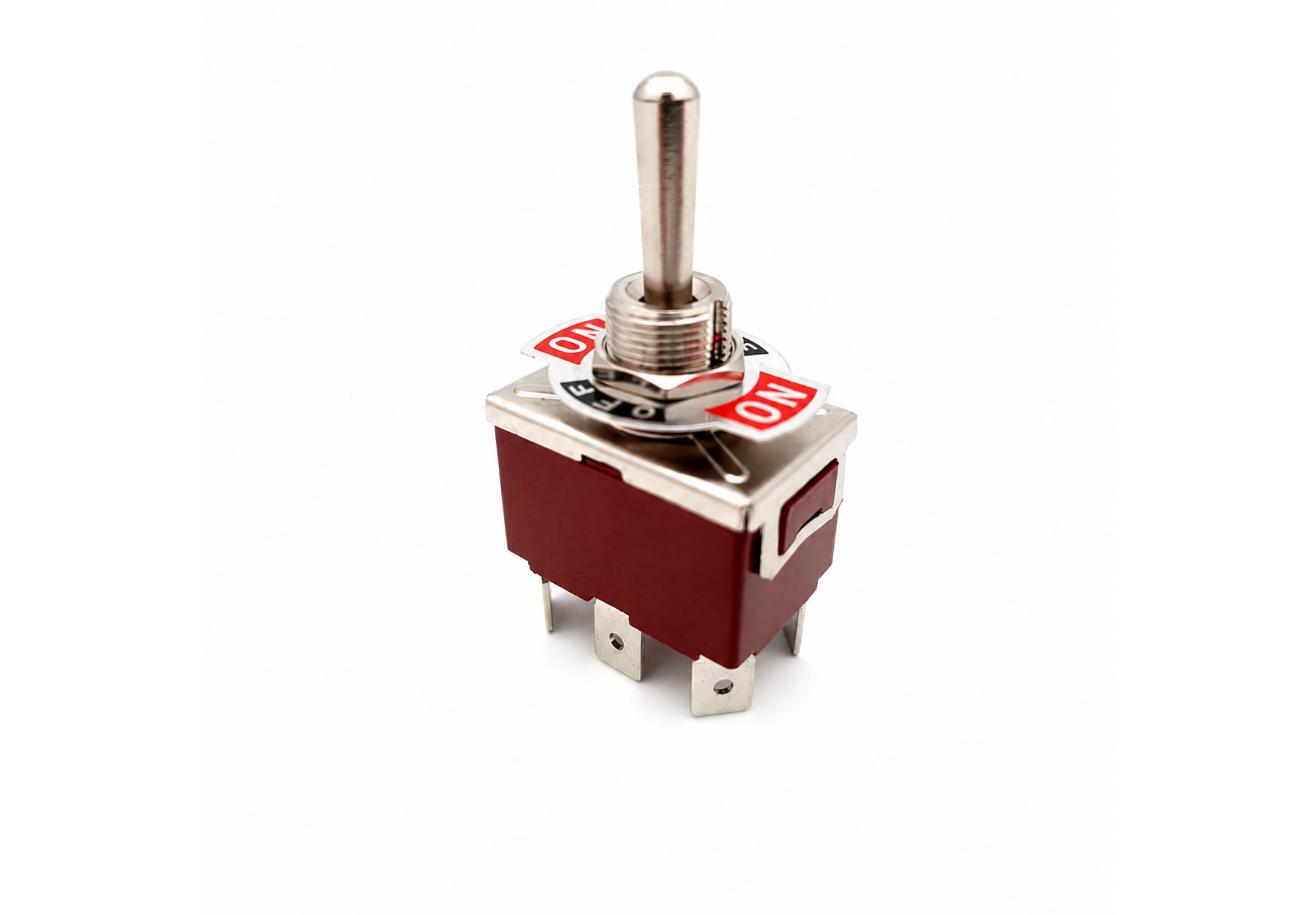

This DPDT toggle switch combines one maintained ON position with centre OFF and one spring-return (ON) position, allowing two circuits to be switched together with both latched and momentary control.
Key Features
- Maintained ON-OFF-(ON) operation
- One spring-return momentary position
- DPDT switching controls two circuits simultaneously
- Six 6.3mm spade terminals
- Compact 12mm panel mounting
Specifications
- SKU: TS-041
- Configuration: DPDT
- Switch positions: Maintained ON-OFF-(ON) momentary
- Electrical rating: 15A at 12VDC; 10A at 24VDC

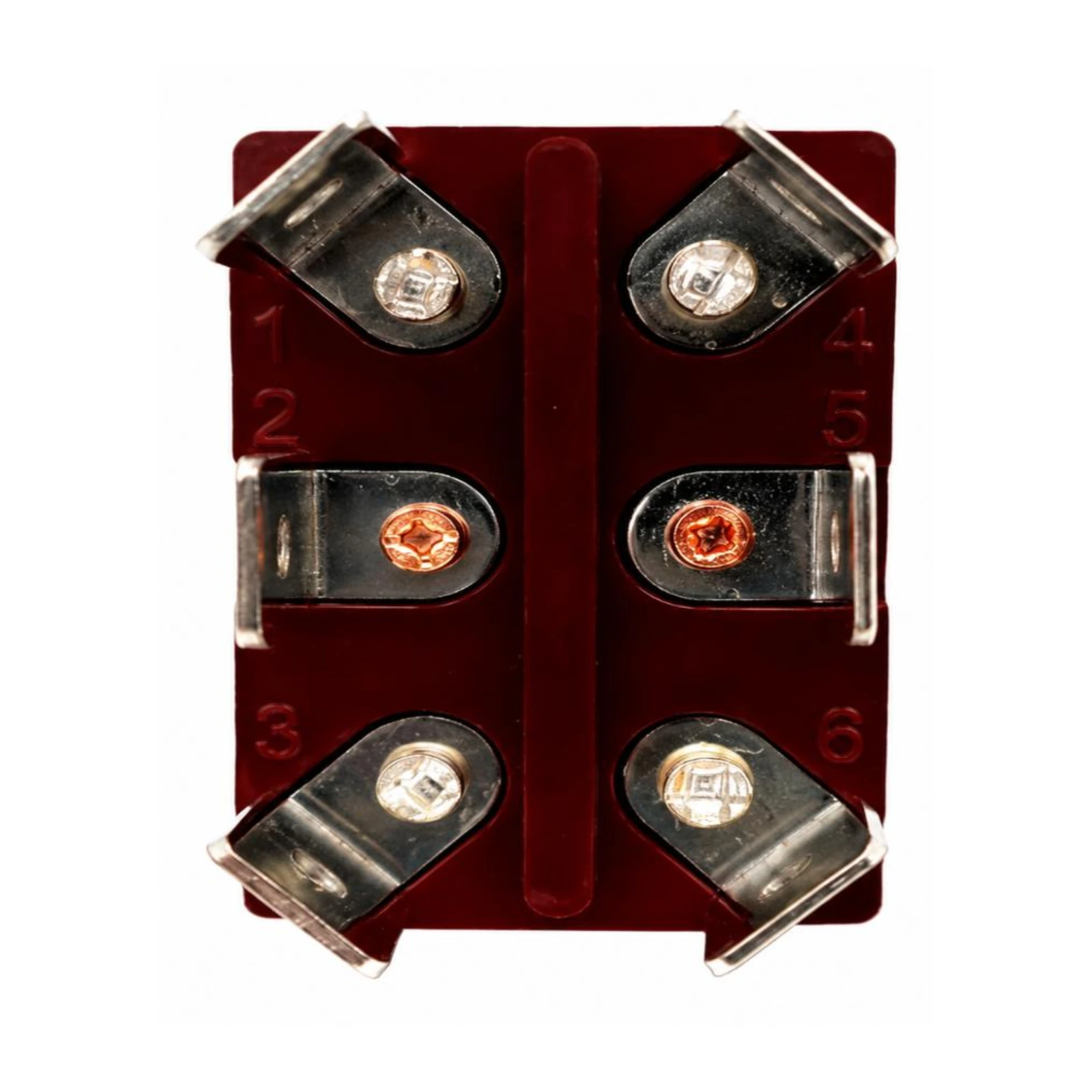

- Terminals: Six 6.3mm spade terminals
- Panel cut-out: 12mm diameter
- Body dimensions: 19.5mm W × 28.5mm L × 17.5mm D, plus 10.5mm terminals
- Threaded shaft: 12mm diameter × 9.5mm high
- Toggle length: 17mm above the thread
Applications
- Latched control with a momentary override
- Test and bypass functions

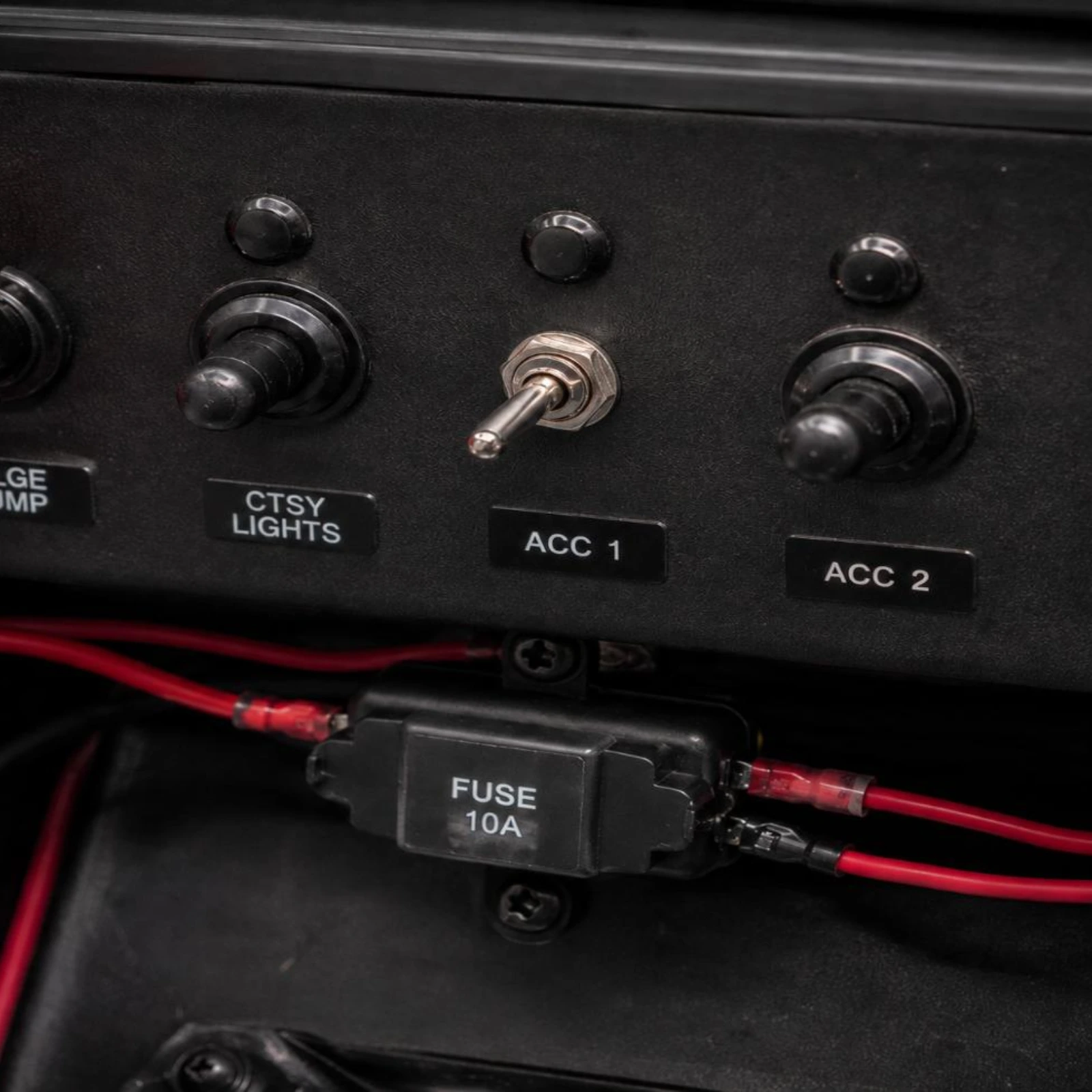

- Winch and actuator controls
- Dual-circuit equipment panels
Installation Notes
This product is currently unavailable. Confirm the maintained and momentary sides of the switch before wiring, isolate the supply and use suitable cable, circuit protection and relays for the connected loads.
