Description

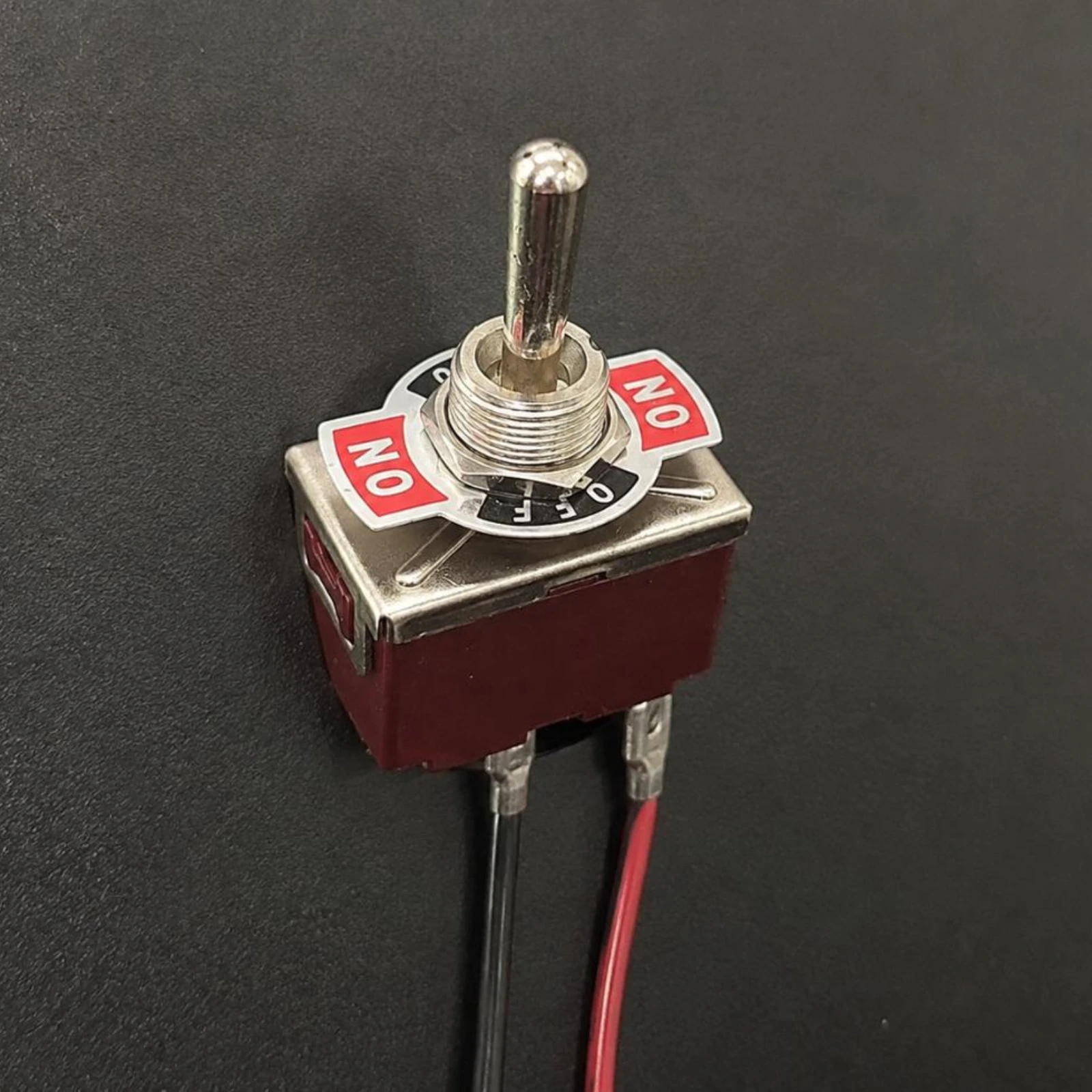

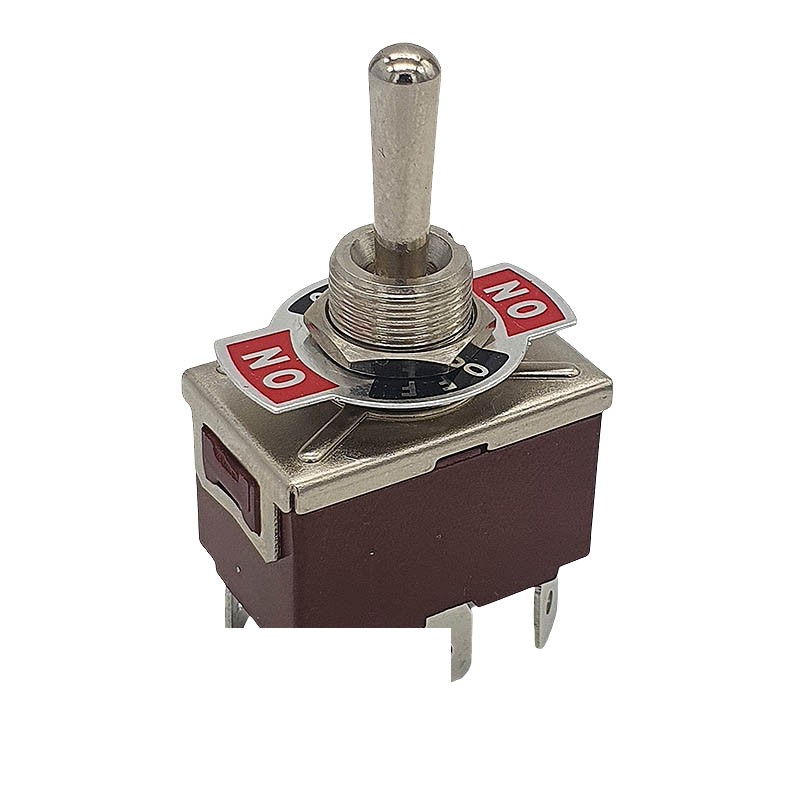

This DPDT (double pole, double throw) toggle switch switches two circuits at once and latches in either ON position, with a centre-off position in between — unlike momentary versions, both ON positions stay engaged until you move the toggle again. That makes it suited to selecting between two latched circuits, such as choosing between two power sources or two speed settings, with the option to isolate both in the centre position.

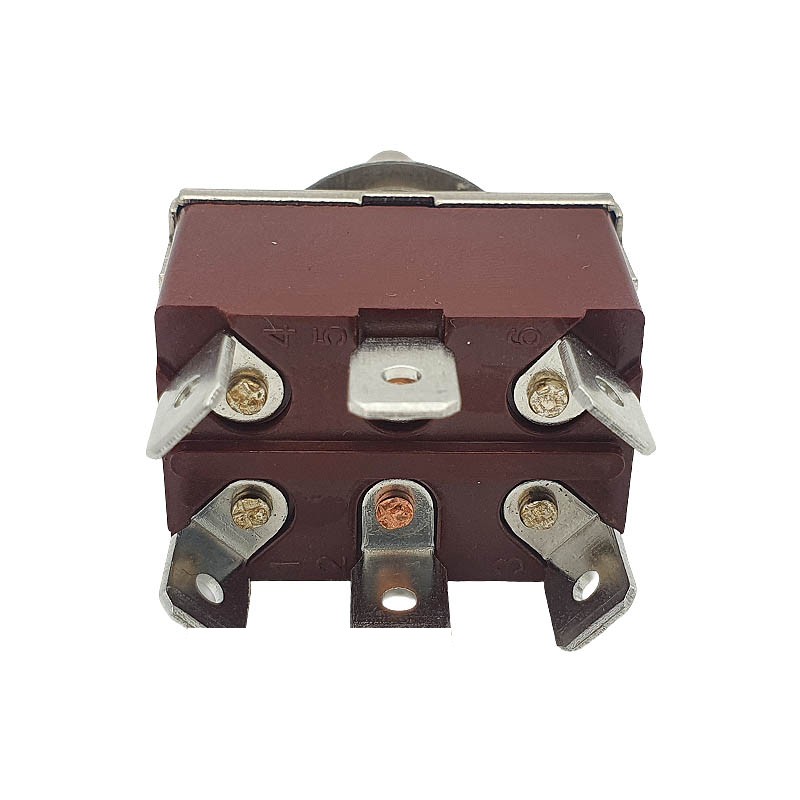

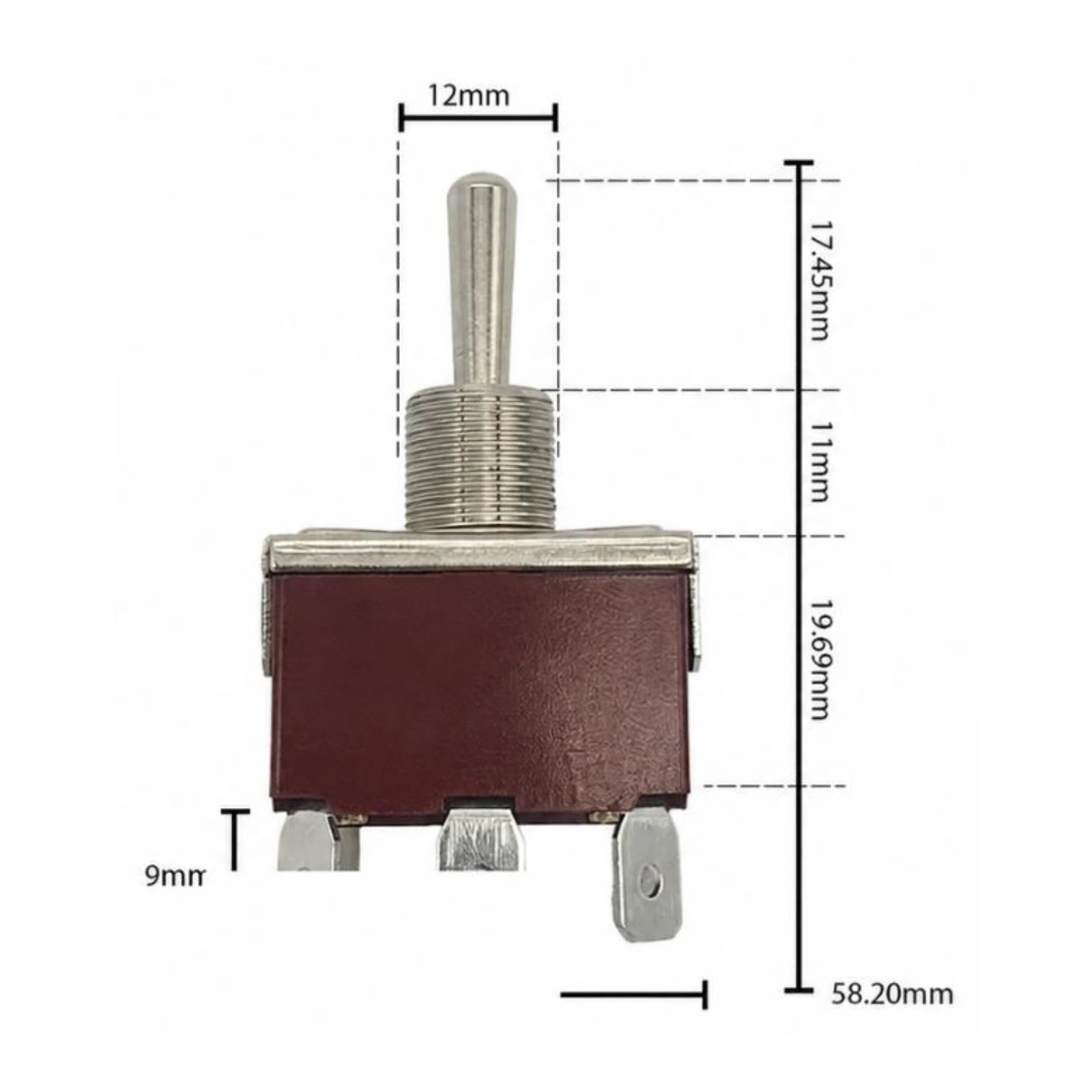

It’s rated 15A at 12V and 10A at 24V, with 6 x 6.3mm spade terminals for a secure, solderless connection, and a 12mm mounting hole.
Not sure if this switch suits your application? Contact us and we’ll help confirm compatibility before you order.
