Description

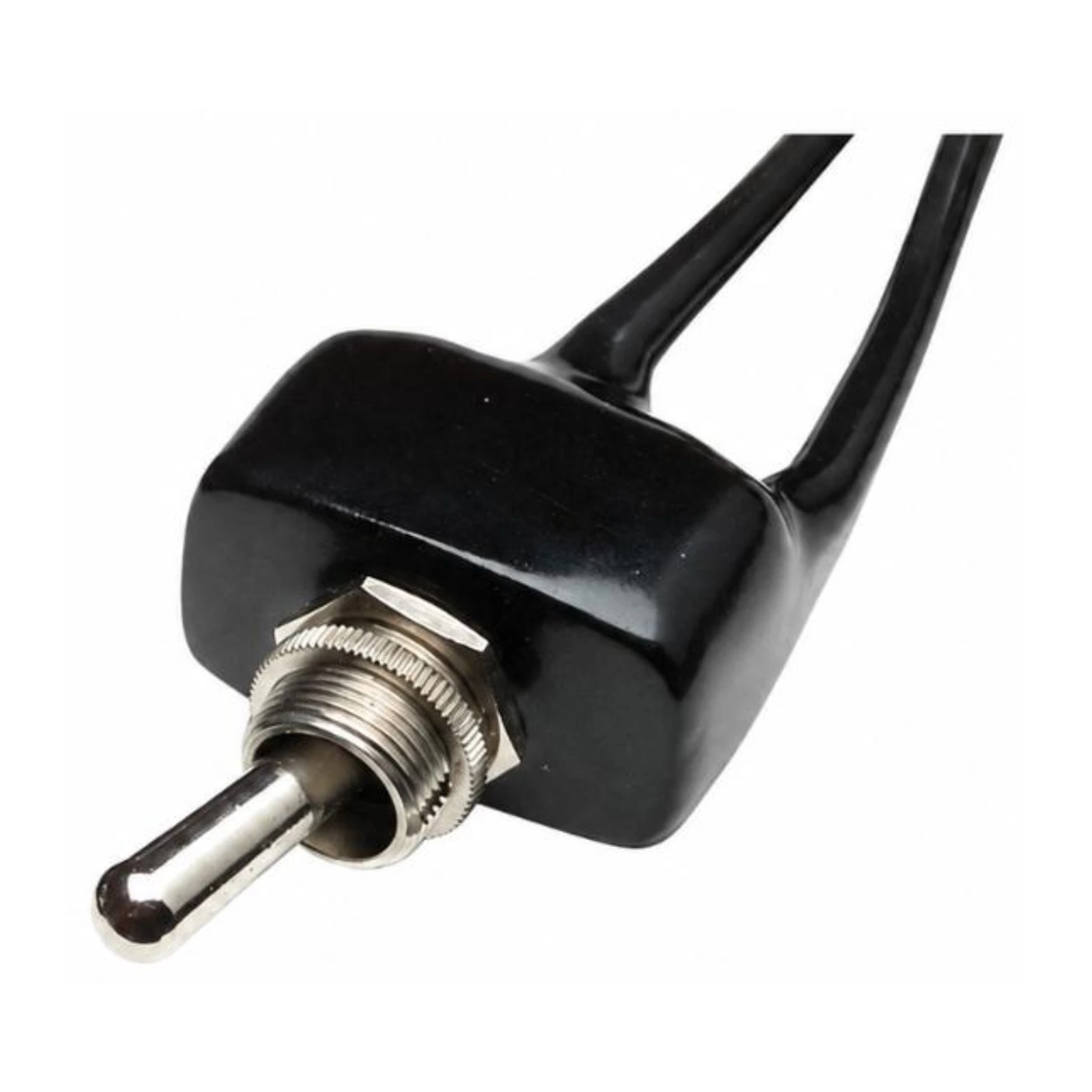

The Cole Hersee 5582-10BX is a sealed, pre-wired SPST toggle switch for dependable ON/OFF control in marine, 4WD and equipment panels exposed to water, dust and vibration.
Key Features
- Simple maintained SPST ON/OFF operation
- Sealed IP68 construction for demanding environments
- Pre-wired leads for a protected installation
- O-ring stem seal and plasticised housing
- Silver contacts for dependable switching
Specifications
- Part number: 5582-10BX
- Brand: Cole Hersee
- Configuration: SPST
- Switch positions: ON/OFF
- Electrical rating: 25A at 12VDC; 12A at 24VDC
- Ingress protection: IP68
- Stem thread: 15/32-32
- Maximum panel thickness: 6.35mm
- Handle length: 17mm
- Overall dimensions: 29mm H × 55mm D × 16mm W
Applications

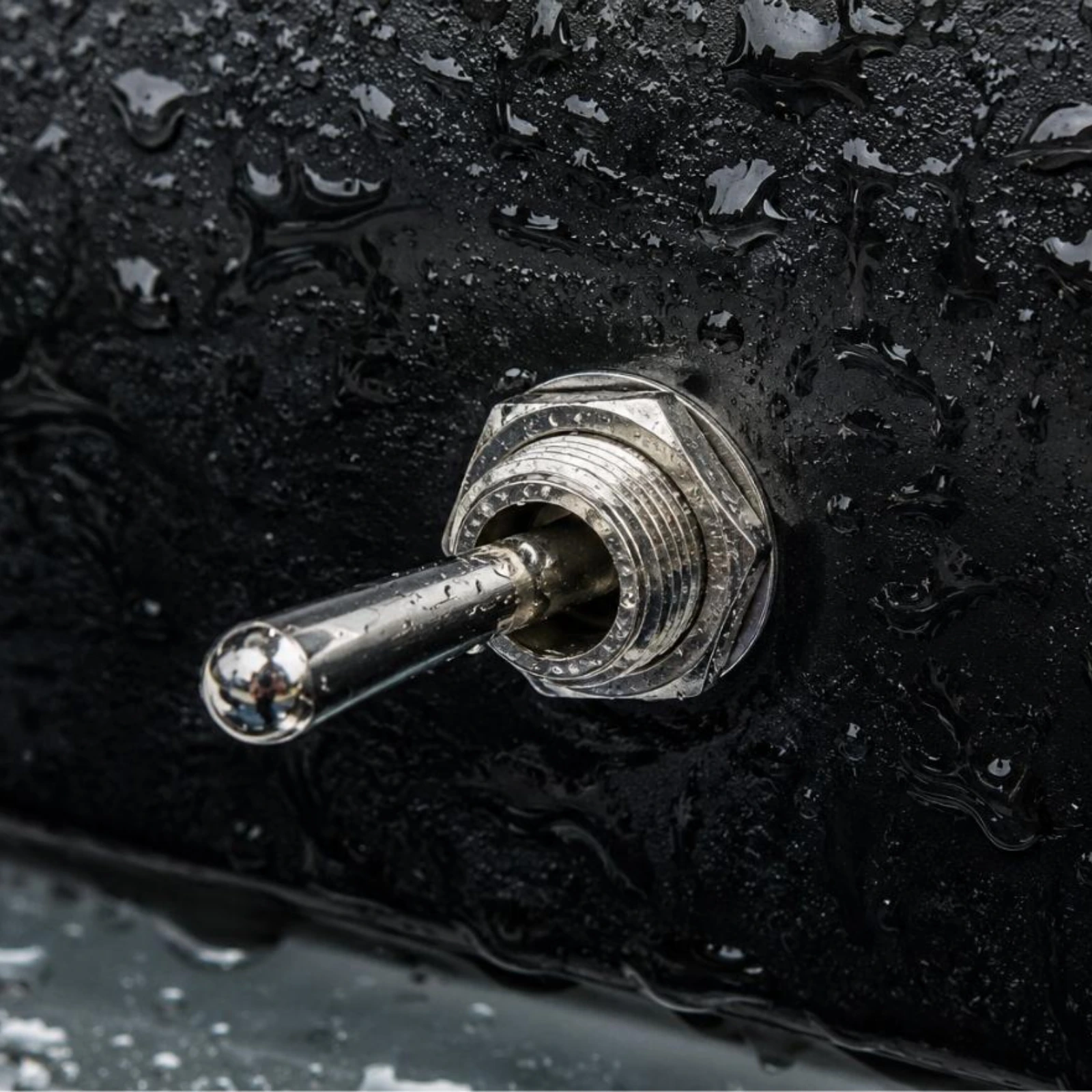

- Marine accessory and bilge-pump circuits
- 4WD and off-road equipment
- Outdoor machinery and control panels
- Replacement of sealed 5582-series switches
Installation Notes
Feed the pre-wired leads through the panel opening before securing the threaded bushing. Ensure the O-ring seats evenly against the panel face, and select wiring and circuit protection suitable for the connected load and system voltage.
