Description

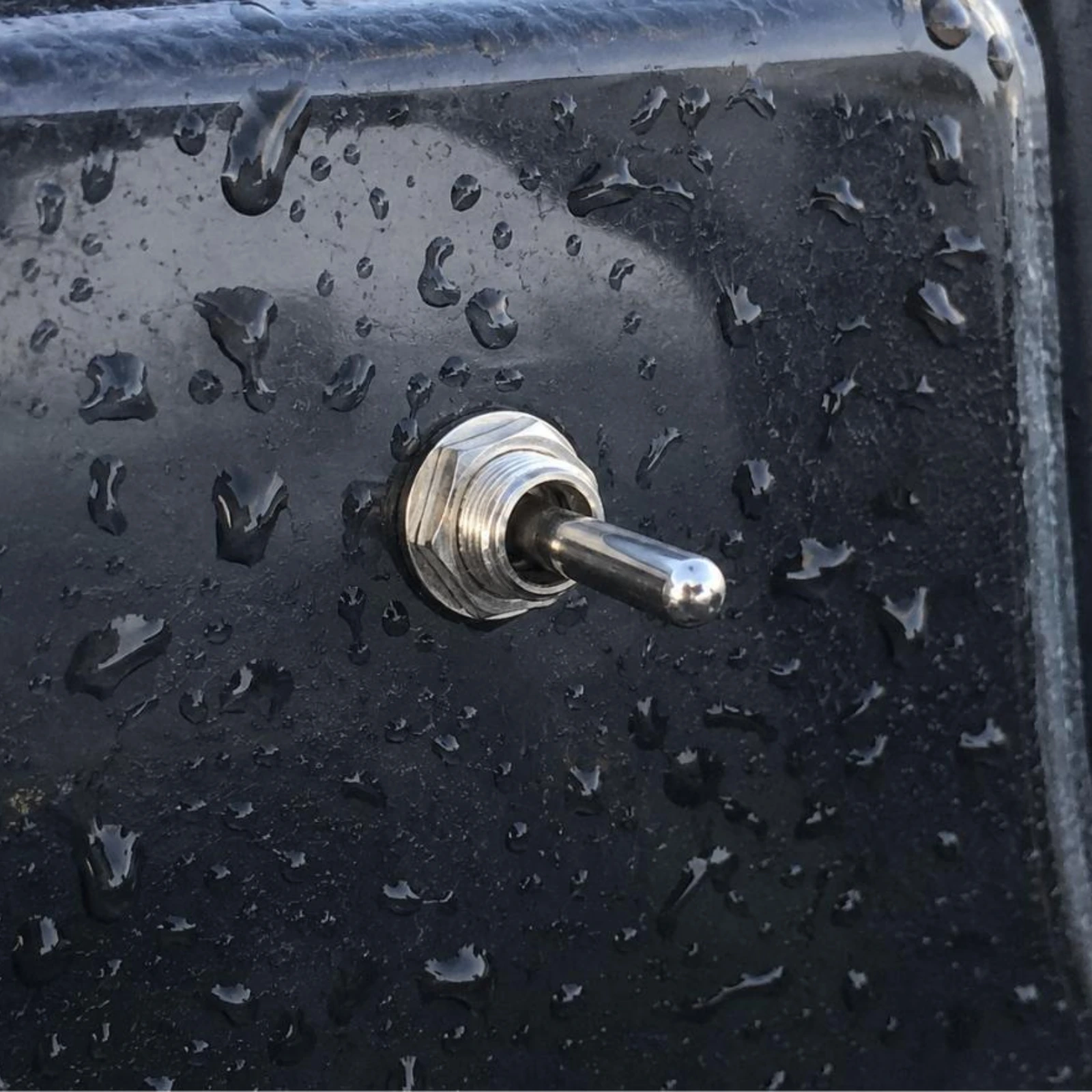

The Cole Hersee 55021-07BX is a sealed, pre-wired SPDT toggle switch for momentary control in both directions. Designed for marine, 4WD and equipment panels exposed to water, dust and vibration, it returns to the centre OFF position when released.
Key Features
- Momentary ON/OFF/Momentary ON operation
- Sealed IP68 construction for exposed installations
- Three pre-wired 203mm leads
- O-ring stem seal and plasticised housing
- Silver contacts for dependable switching
Specifications
- Part number: 55021-07BX
- Brand: Cole Hersee
- Configuration: SPDT
- Switch positions: Momentary ON/OFF/Momentary ON
- Electrical rating: 25A at 12VDC; 12A at 24VDC
- Ingress protection: IP68
- Lead length: 203mm (8in)
- Stem thread: 15/32-32
- Stem dimensions: 12mm length × 12mm diameter
- Maximum panel thickness: 6.35mm
- Handle length: 17mm
- Overall dimensions: 29mm H × 55mm D × 16mm W
Applications
- Bilge-pump test and override controls
- Winch, trim-tab and actuator controls
- Marine, 4WD and outdoor equipment panels
- Directional controls requiring spring return to OFF
Installation Notes
Feed the pre-wired leads through the panel opening before securing the threaded bushing. Ensure the O-ring seats evenly against the panel face, and select wiring and circuit protection suitable for the connected load and system voltage.
