Description

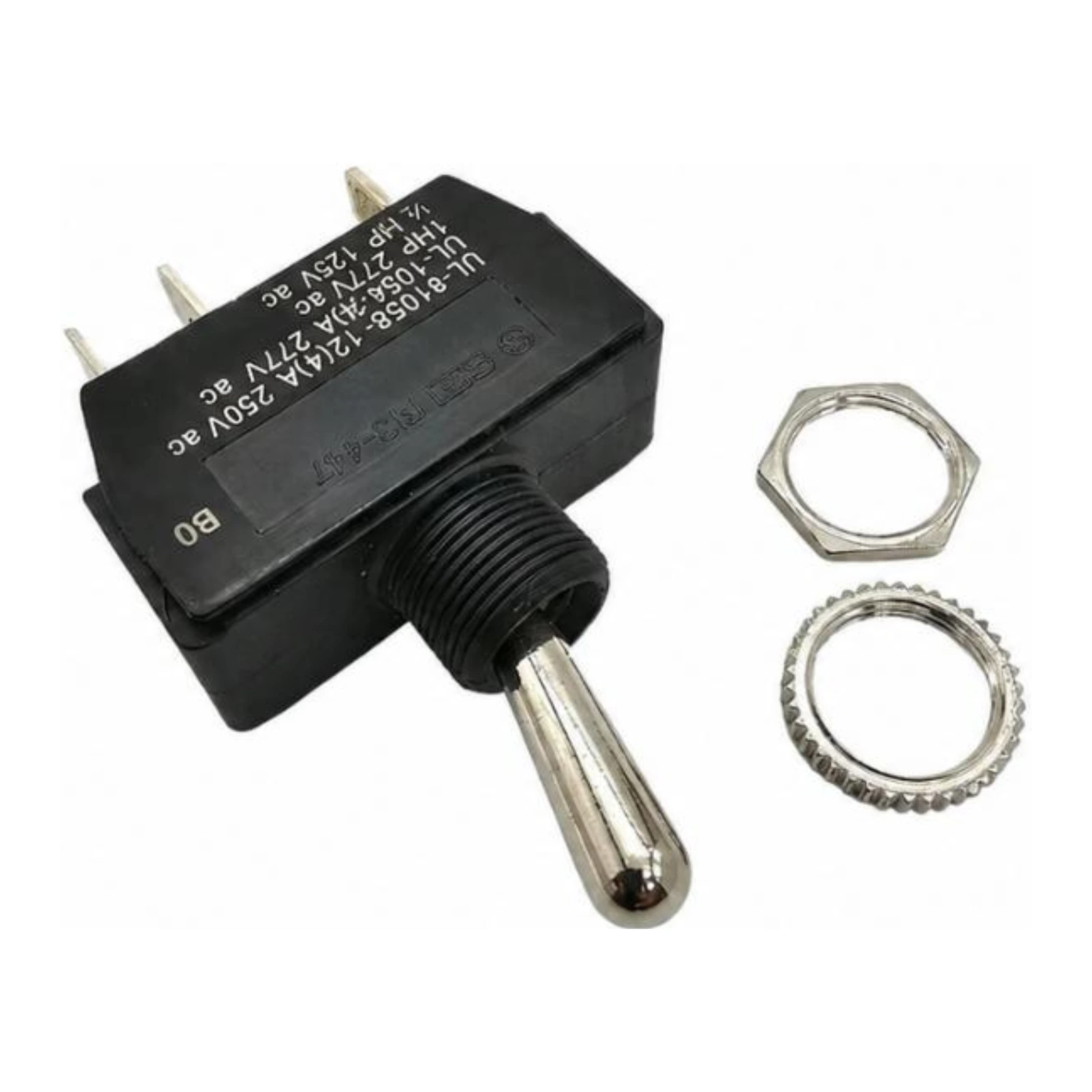

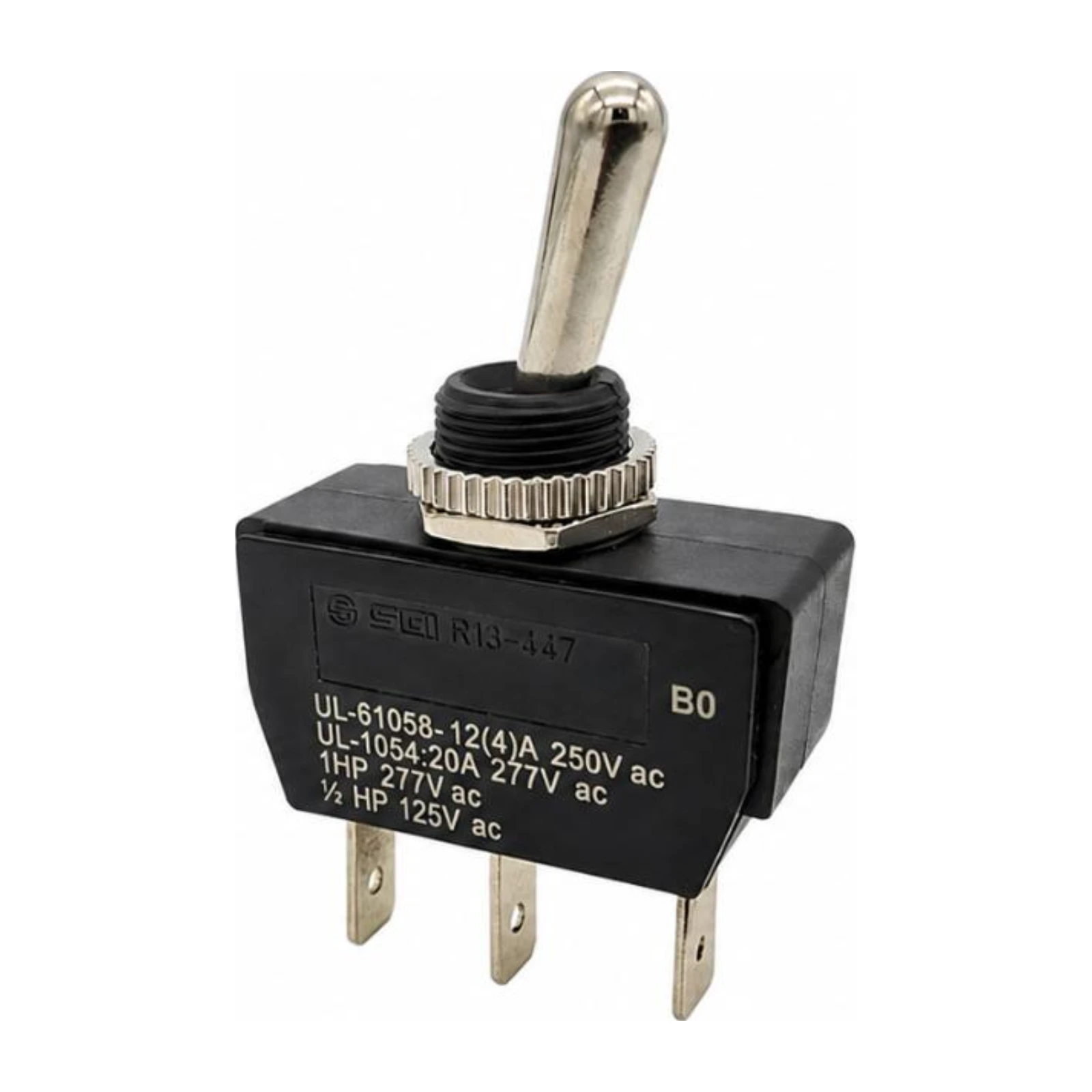

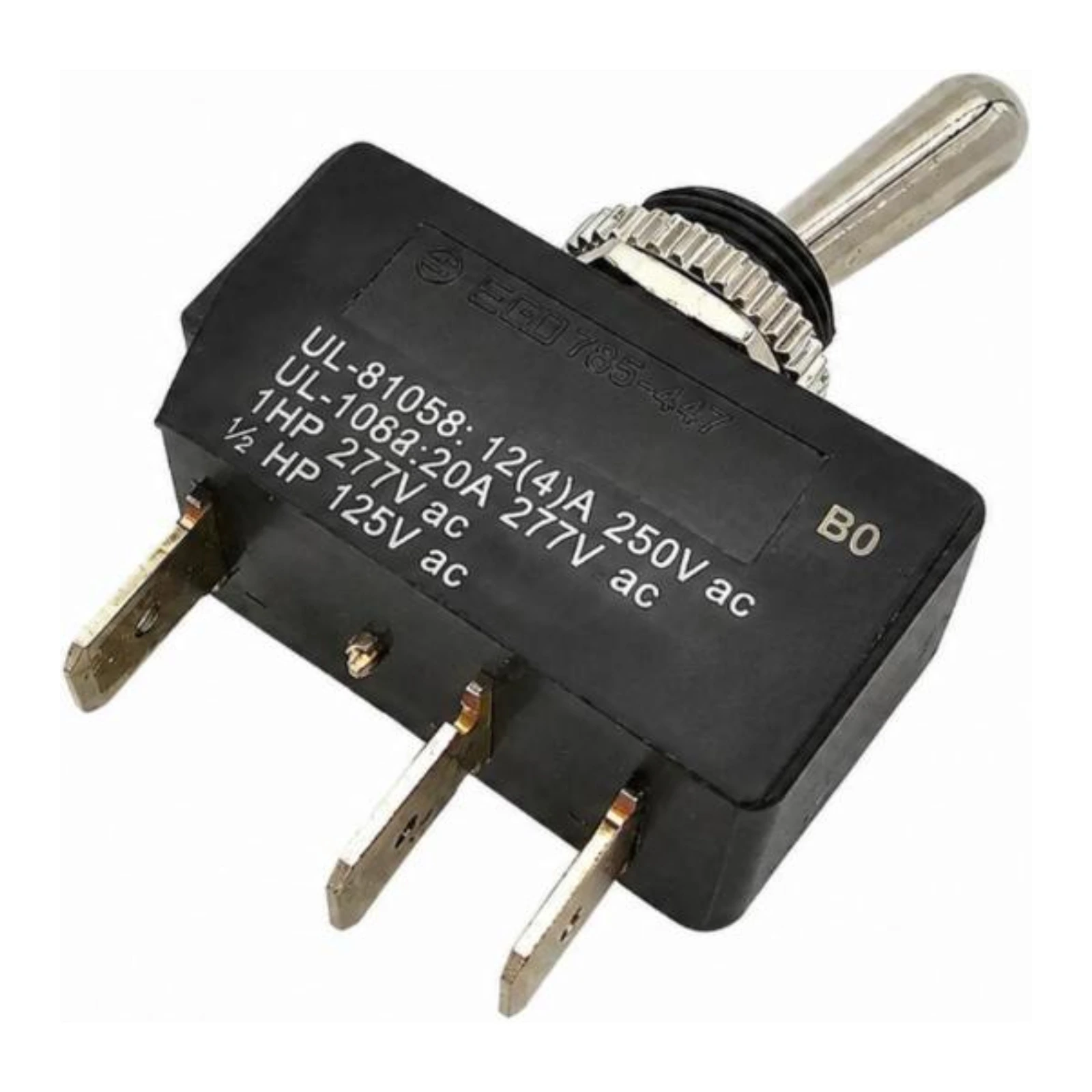

The R13-447 is a sealed SPDT toggle switch with normally open and normally closed contacts in an ON/ON configuration. With no centre OFF position, one circuit remains selected at all times, making it suitable for changeover and monitoring applications.
Key Features
- Maintained ON/ON operation with no OFF position
- SPDT changeover circuit
- Normally open and normally closed contacts
- IP56 protection against dust and water jets
- Suitable for marine and exposed industrial panels
Specifications
- Part number: R13-447
- SKU: TS-014
- Configuration: SPDT
- Switch positions: Maintained ON/ON
- Electrical rating: 20A at 240V
- Ingress protection: IP56
Applications
- Selection between two circuits
- Normally closed alarm or monitoring circuits

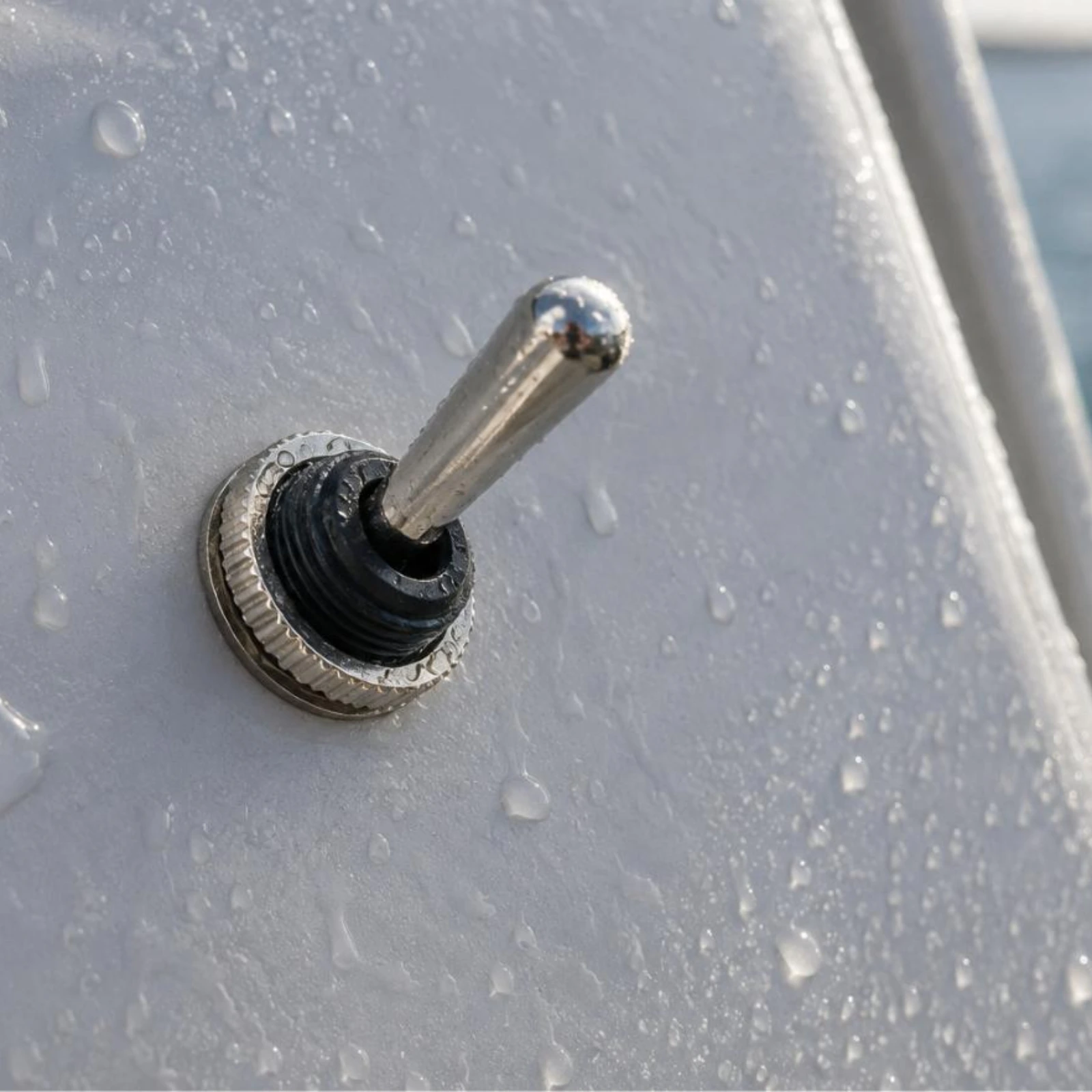

- Marine equipment and exposed control panels
- Industrial changeover control
Installation Notes
Confirm the required changeover logic before wiring because this switch has no centre OFF position. Mount it through a correctly sized panel opening and select wiring and circuit protection suitable for the connected load and voltage.
