Description

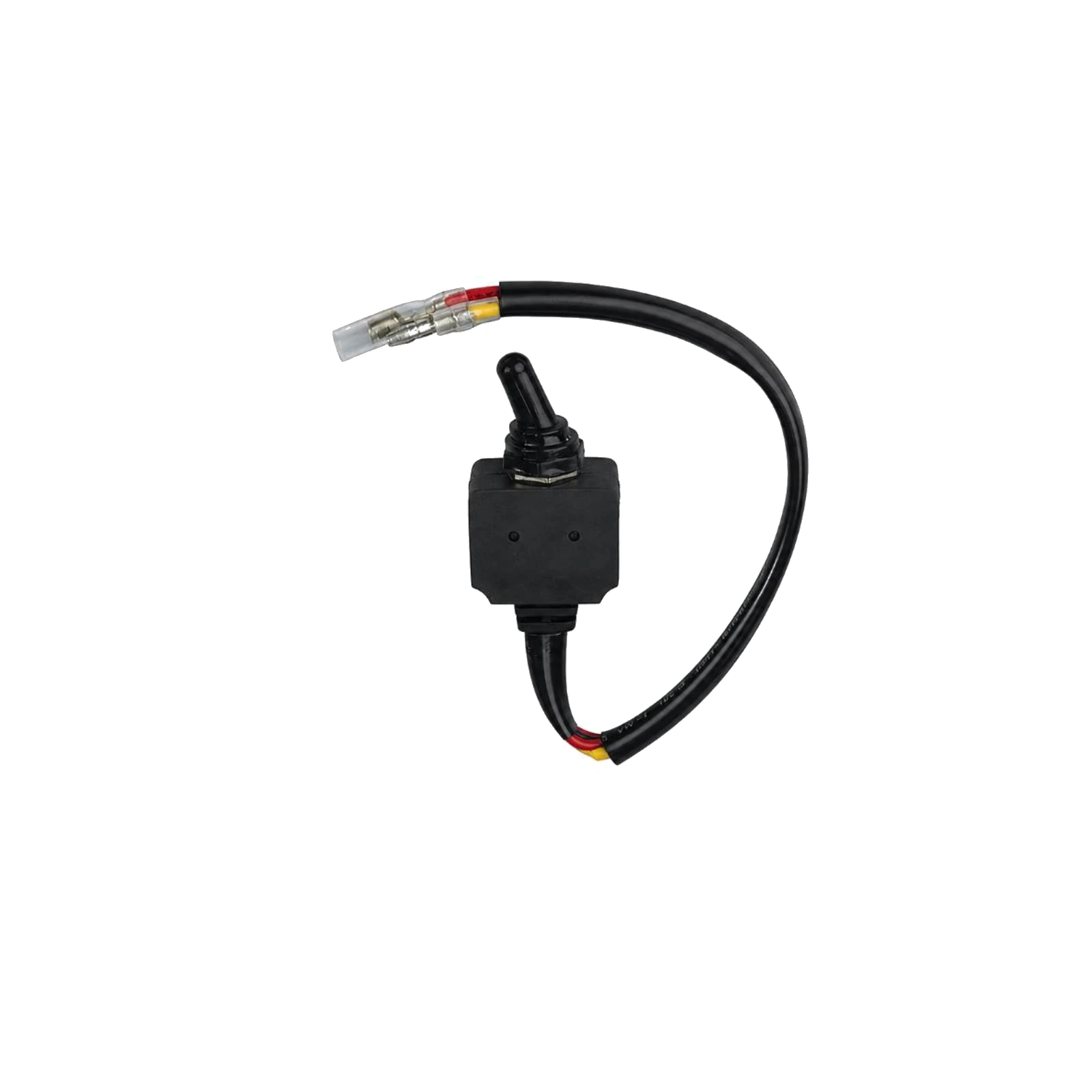

This fully sealed SPST toggle switch is designed for wet, corrosive and high-vibration environments. Its actuator is protected by a rubber boot, the switch mechanism is encapsulated in rubber, and 150mm fly leads replace exposed terminals.
Key Features
- Maintained SPST ON/OFF operation
- Rubber-encapsulated switch mechanism
- Rubber boot protects the actuator
- 150mm fly leads for direct wiring
- Suitable for marine, 4WD and outdoor equipment
Specifications
- SKU: TS-013
- Configuration: SPST
- Switch positions: Maintained ON/OFF
- Electrical rating: 20A at 12V
- Connection: 150mm fly leads
- Sealing: Rubber-encapsulated mechanism with rubber boot
- Published IP rating: Not specified
Applications

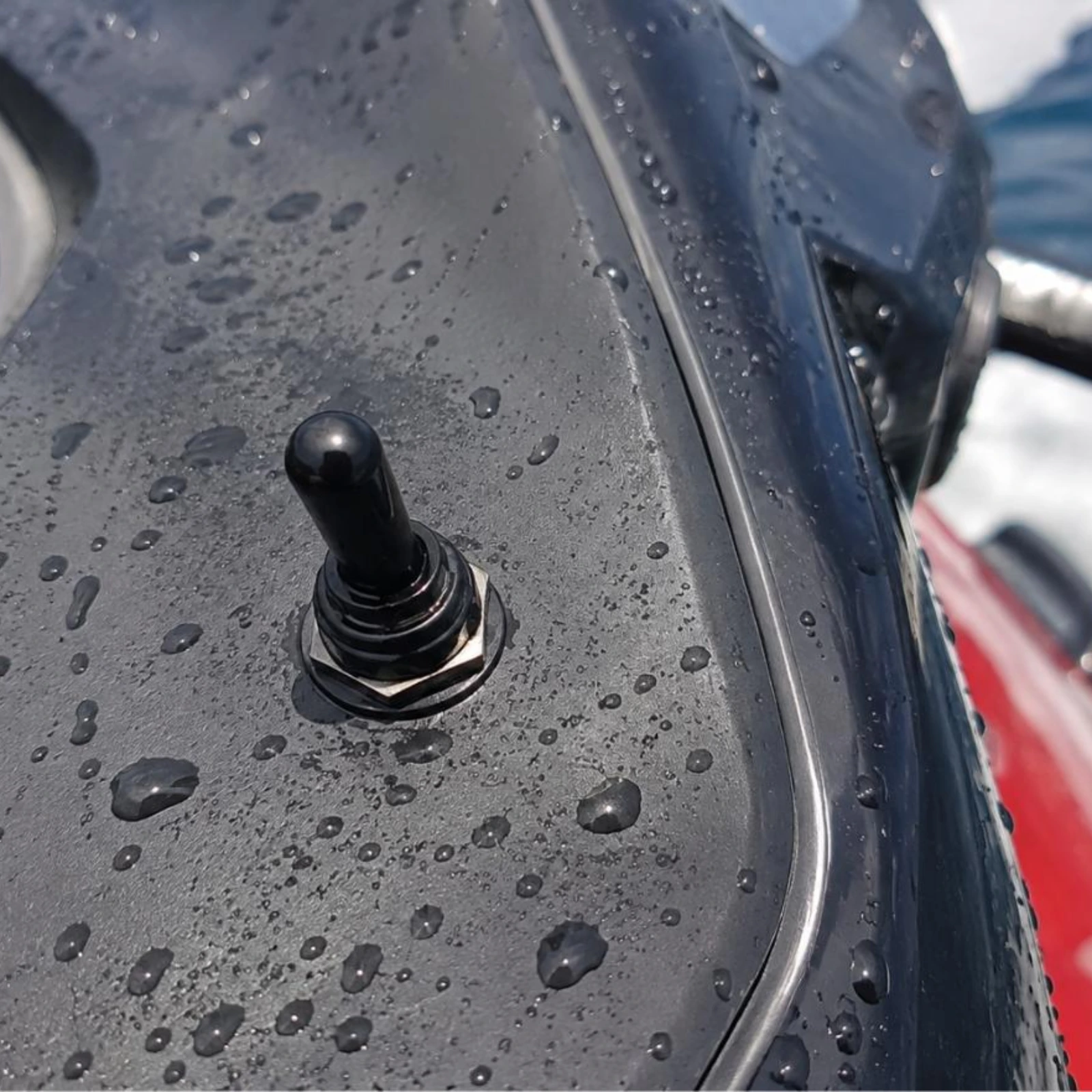

- Marine accessory circuits
- 4WD and trailer electrical systems
- Outdoor machinery and exposed panels
- Wet or dusty equipment installations
Installation Notes
Feed the fly leads through the panel opening before securing the switch. Protect all joins from moisture, and select wiring and circuit protection suitable for the connected load and 12V system.
