Description

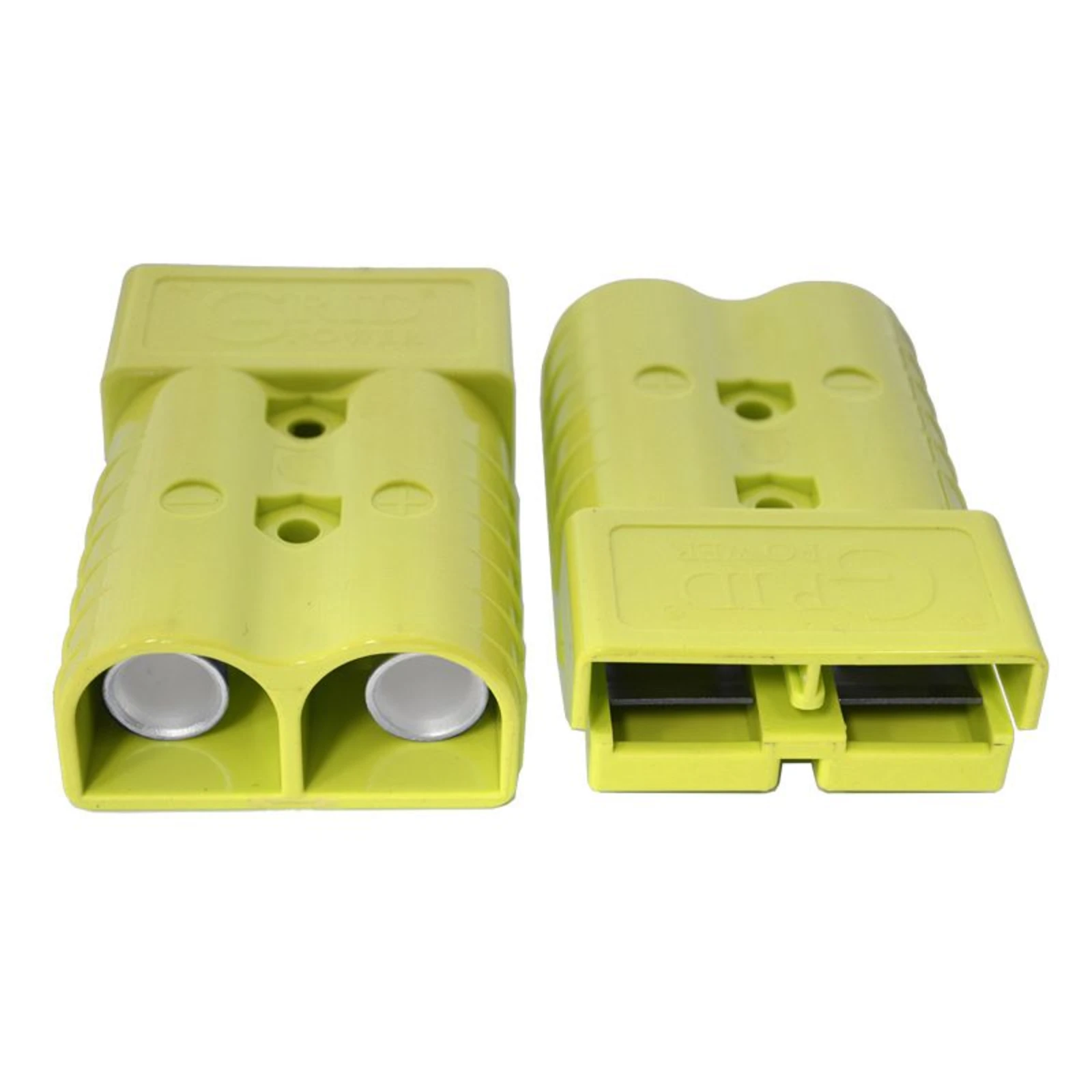

LV Automotive Anderson type power connectors are the go-to plug for high-current 12V and 24V DC connections that need to be made and broken quickly. This 50A yellow pair suits 6 B&S (16 mm²) cable and is the most widely used size for linking batteries, solar panels, fridges, winches and trailer or caravan power.
The housings are genderless, so the two halves are identical. The yellow housing is keyed to its colour, so it only mates with another 50A yellow connector. This keeps different circuits apart and helps stop the wrong leads being plugged together. Silver-plated copper alloy contacts carry the load with low resistance, while stainless steel springs hold the contacts under constant pressure for a firm, self-wiping connection every time it is plugged in. The flame-retardant polycarbonate housing is rated UL94 V-0, works from −20 °C to +105 °C and is rated up to 600 V.
Supplied as a pair, ready to crimp or solder to your cable. Each housing has dovetail slots for joining several connectors side by side and mounting holes for a bracket or handle. Use yellow to identify a dedicated circuit, such as a separate battery, solar or accessory supply.
Key Benefits
- 50A rating for 6 B&S (16 mm²) cable
- Genderless, colour-keyed yellow housing keeps circuits separate
- Silver-plated copper alloy contacts for low resistance
- Stainless steel springs keep constant contact pressure
- UL94 V-0 flame-retardant polycarbonate housing
- Supplied as a pair
Specifications
- Brand – LV Automotive
- Part number – LV2450Y
- Type – Genderless Anderson type power connector
- Current rating – 50A
- Voltage rating – Up to 600V
- Cable size – 6 B&S (16 mm²)
- Contacts – Silver-plated copper alloy
- Springs – Stainless steel
- Housing – Polycarbonate, UL94 V-0
- Operating temperature – −20 °C to +105 °C
- Colour – Yellow
- Pack quantity – 2 (pair)
Applications
- Dual battery and auxiliary battery systems
- Solar panel and solar blanket connections
- Trailer, caravan and camper power leads
- Portable fridges, winches and 12V accessories
- Battery chargers and jump-start leads
