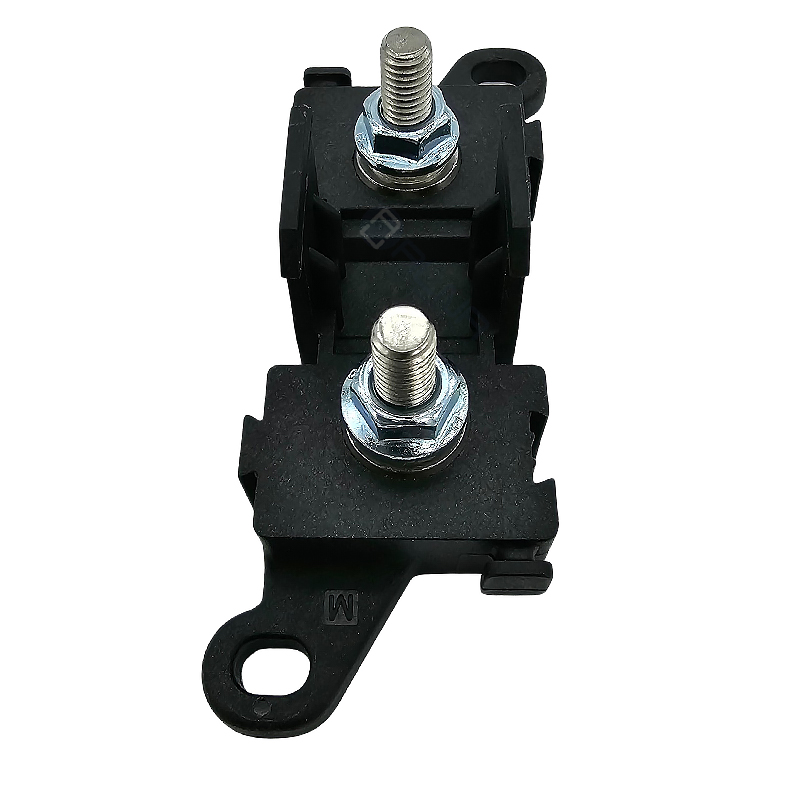

Bussmann LMI1-E-1-0 Fuse Holder AMI/MIDI Selectable Fuse


The LMI provides a quality fuse holder that suits MIDI/AMI fuses, able to be used individually or connected together to provide many individual circuits or one used as a fused busbar.

  • Voltage – 12-24VDC @ 400A continuous rating

Product Sheet Eaton LMI Series


The Bussmann LMI1-E-1-0 Fuse Holder offers a heavy duty fuse panel called the LMI “Little Block”. The LMI is used for main branch primary fusing and can me interlocked with up to 6 units in combination with a busbar to suit standard AMI fuses, hence creating 5 fused circuits.

The LMI provides efficient power distribution suitable for many “under the hood” applications such as:
Marine, Construction Agriculture, Bus, Specialty Vehicles.

  • Selectable Fuses: 30A – 200A
  • Suitable Fuse – MIDI/AMI
  • Amperage – 400A continuous rating
  • Voltage – 12-24VDC
  • Cover – Removable Red EPDM Santoprene Cover
  • Hardware – Stainless steel (M5) Studs
  • Housing – HTN black UL 94-V0 thermoplastic
  • Operating Temp:-40°C to 85°C
  • Fuses Available: MIDI/AMI
  • Brand: EATON
