CODE3 CD0012A Amber LED Message Board

Description

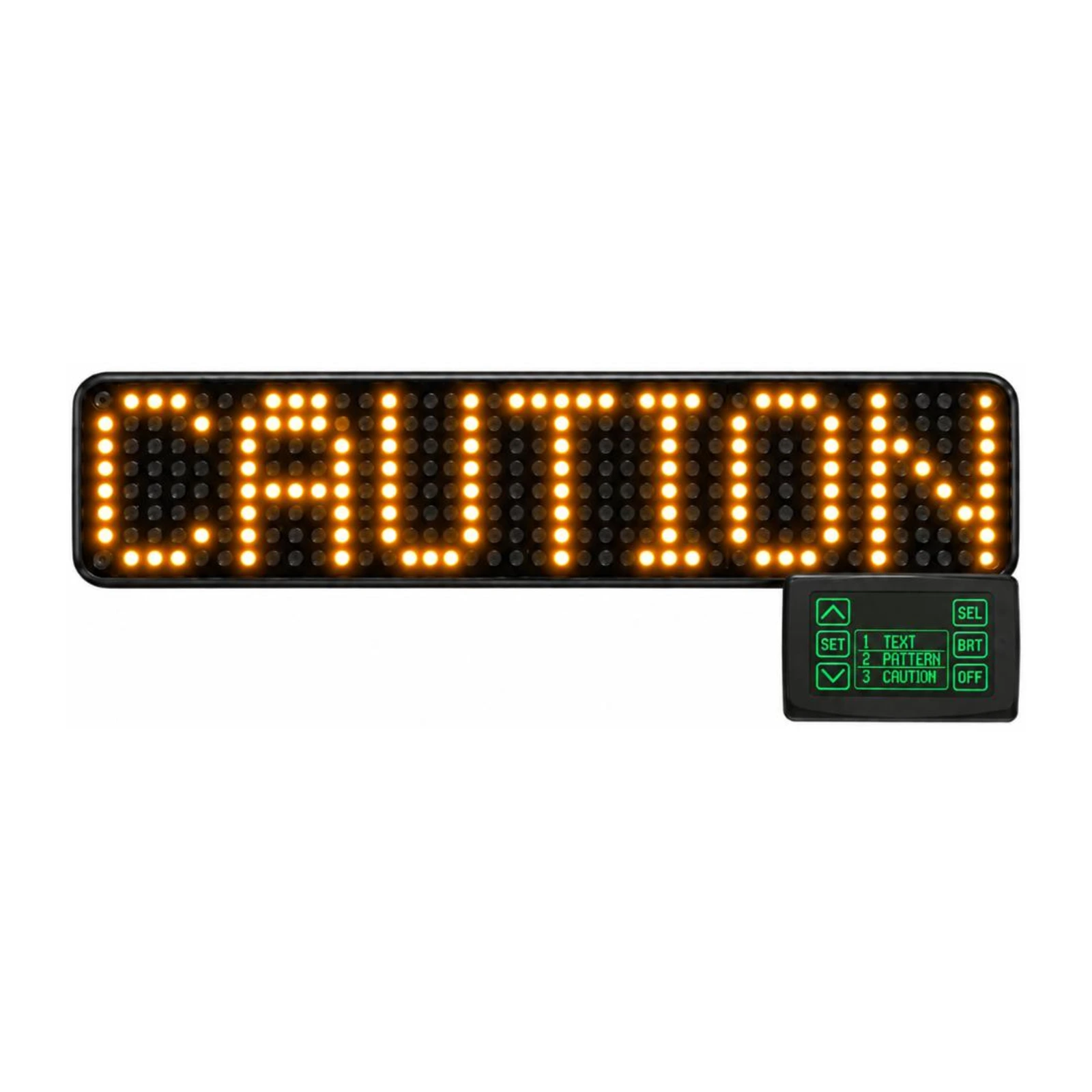

The CODE 3 CD0012A is a programmable amber LED message board that lets vehicle operators show clear, legible warnings and instructions to approaching traffic — “SLOW DOWN”, “KEEP LEFT”, “CAUTION” or any custom text. It is part of the CODE 3 M5 message display range and is supplied as a complete standalone kit with the display, a touchscreen controller and a junction box for simplified wiring.

The display uses 10 mm high-contrast pixels behind an optical design that improves legibility and reduces sunlight washout, giving a stated viewing distance of up to 100 metres (328 ft). Up to 99 messages are created on a PC with the CODE 3 message programming software, copied to the controller by microSD card, and selected from the in-cab touchscreen. Auto text rotation lets the board be mounted in different orientations.

Built for life on the outside of a vehicle, the IP67-rated display runs on 10–30 VDC (12 V and 24 V systems) with protection against reverse polarity, transients and thermal overload, and is ECE R10 and RCM approved. It suits traffic-management and road-maintenance utes, incident-response vehicles, utility and construction fleets, and mobile work zones. Mounting bracket kits are available separately, and the board is also offered with red LEDs.

Key Benefits

Clear amber LED text readable from up to 100 metres (328 ft)
Optical design improves legibility and reduces sunlight washout for daytime use
Stores up to 99 programmable messages, selected from an in-cab touchscreen controller
Messages built on a PC and loaded by microSD card — easy to update across a fleet
IP67 weatherproof display for exterior mounting
Multi-voltage 10–30 VDC operation suits both 12 V and 24 V vehicles
Protected against reverse polarity, transients and thermal overload
Complete kit with junction box for simplified installation

Specifications

Brand – CODE 3
Part number – CD0012A (CD0012X M5 message display series)
LED colour – Amber
Pixels – 10 mm, high-contrast
Viewing distance – Up to 100 m (328 ft)
Message capacity – Up to 99 messages
Programming – PC message software, transferred by microSD card (SD and SDHC compatible)
Controller – Resistive touchscreen with OLED graphic display
Text – Auto text rotation; scrolling messages supported
Operating voltage – 10–30 VDC (12 V / 24 V)
Current draw – Typical 1 A @ 13.6 V, 0.5 A @ 27.2 V; maximum 2.6 A @ 13.6 V, 1.25 A @ 27.2 V; standby 14 mA
Display dimensions – 591 mm W × 145 mm H × 40 mm D
Controller dimensions – 92 mm W × 55 mm H × 15 mm D
Junction box dimensions – 121 mm W × 65 mm H × 37 mm D
System weight – 2.2 kg
Ingress protection – IP67 (display)
Operating temperature – −20 °C to +65 °C
Approvals – ECE R10, RCM
Protection – Reverse polarity, transients, thermal overload
In the kit – LED message display, touchscreen controller, junction box
Mounting – Bracket kits sold separately
