Description
The Cole Hersee 75930 is a dual-pole, single-throw (DPST) battery master disconnect switch designed to cut battery power to every electrical system on heavy-duty vehicles and equipment. It is used across mining, agriculture, construction and transport, where a machine must be fully isolated for servicing, storage or an emergency shutdown.
At its core is Cole Hersee’s patented weld breaker safety feature. When the switch is turned off, the mechanism applies force to the moving contact to break any weld that may have formed under high current. If a weld cannot be broken, a safety mechanism stops the handle from reaching the OFF position, so the switch can never show OFF while the circuit is still live.
The 75930 combines a 300A main contact with a 10A auxiliary contact in a robust engineered polymer housing rated IP67/IP69K against dust, debris and high-pressure washdown. The removable lever doubles as integrated lockout/tagout, accepting a padlock shackle up to 6.5mm, and is available in red, yellow or black to suit site colour-coding. Each switch is supplied blister packed.
Key Benefits
- Patented weld breaker prevents a falsely indicated OFF position after a contact weld
- Built-in lockout/tagout with a removable lever, accepting padlock shackles up to 6.5mm
- 300A continuous main contact plus a 10A auxiliary contact for signalling or control circuits
- IP67/IP69K sealing for exposed mounting and washdown environments
- Engineered polymer housing with stainless steel hardware for corrosion resistance
- Red, yellow or black lever options for site and fleet colour-coding
Specifications

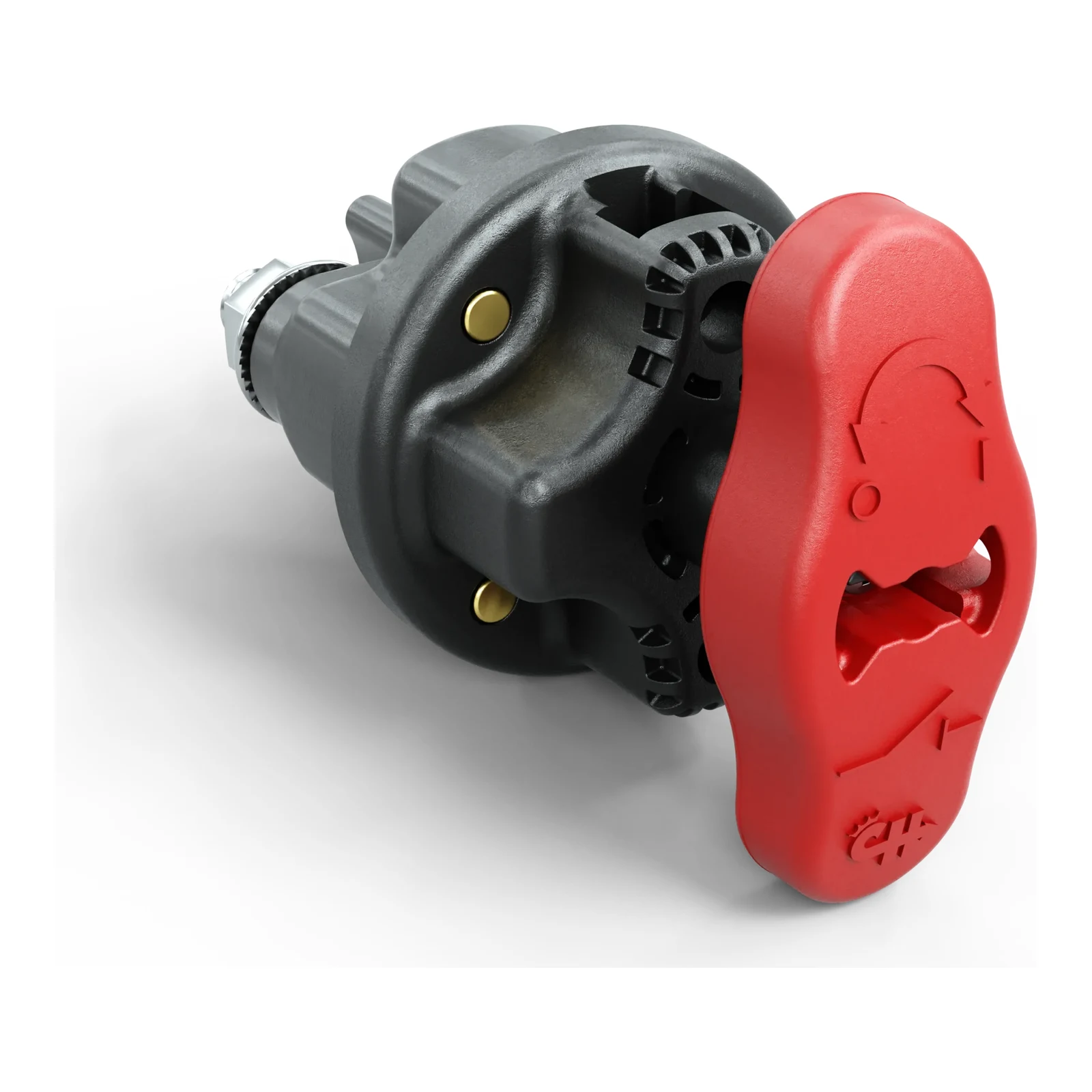

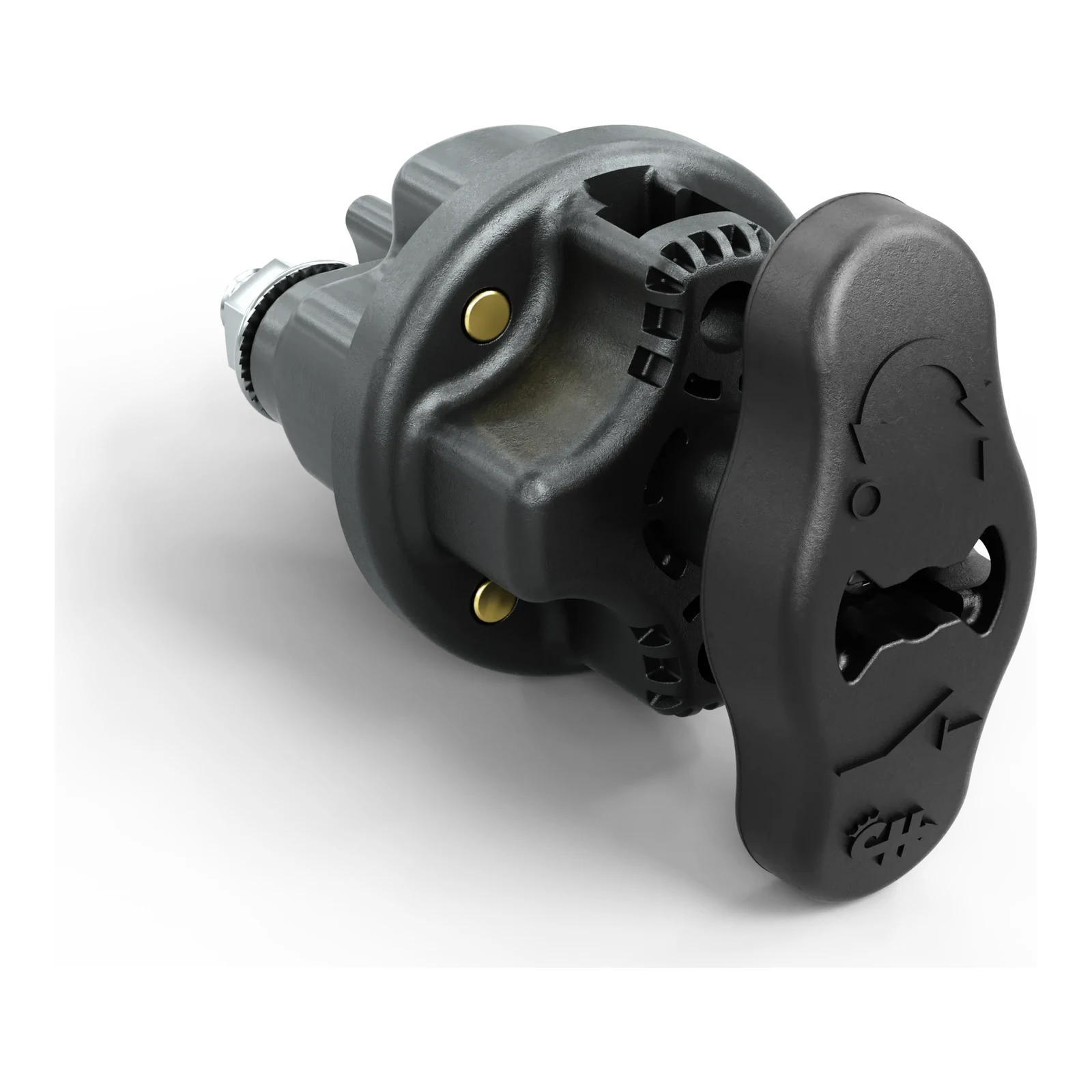

- Part numbers – 75930-01-BL (red lever), 75930-02-BL (yellow lever), 75930-03-BL (black lever)
- Circuitry – DPST, On/Off
- Maximum voltage – 32V DC
- Continuous current (main contact) – 200A with 90mm² cables; 300A with 120mm² cables
- Continuous current (auxiliary contact) – 10A with 2.5mm² cables
- Inrush current (main contact) – 500A for 60 s and 1,000A for 15 s at 23°C
- Inrush current (auxiliary contact) – 20A for 180 s at 23°C
- Actuator – Removable handle with 6.5mm lockout/tagout hole
- Housing – Engineered polymer
- Contacts – Copper
- Hardware – Stainless steel
- Terminals – Main M10 (90mm²); auxiliary M5 (2.5mm²)
- Terminal stud length – 18mm
- Maximum terminal torque – 18 Nm

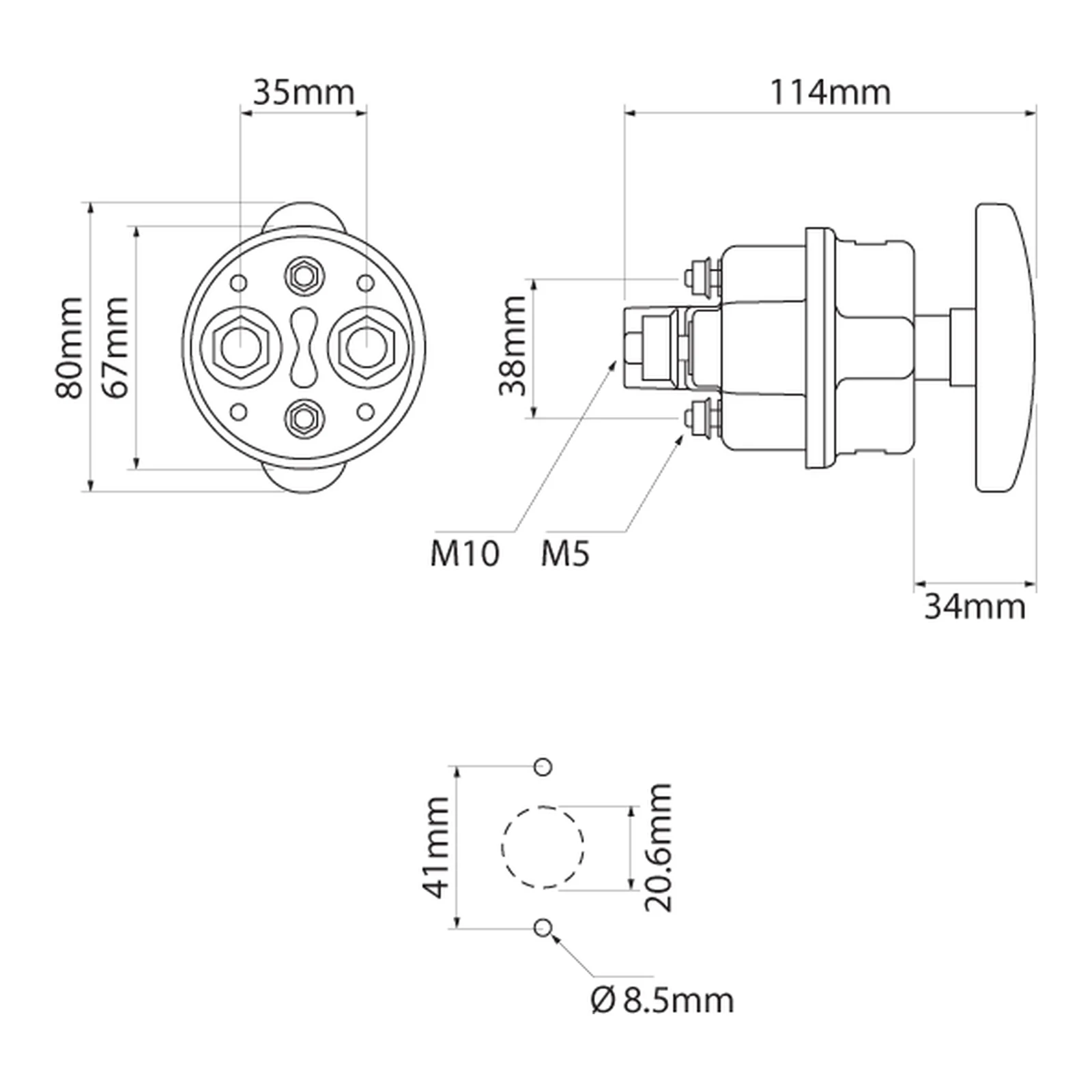

- Mounting – Pass-through, 1 hole Ø18.2mm; 2× M8 fixing points
- Ingress protection – IP67 / IP69K
- Operating temperature – −40°C to +85°C
- Dimensions – H 80 × D 114 × W 67 mm
- Application – Heavy duty, mining
Applications
- Mining and quarry plant
- Agricultural machinery and tractors
- Construction and earthmoving equipment
- Trucks, trailers and transport fleets
- Emergency services and specialist vehicles
