Description

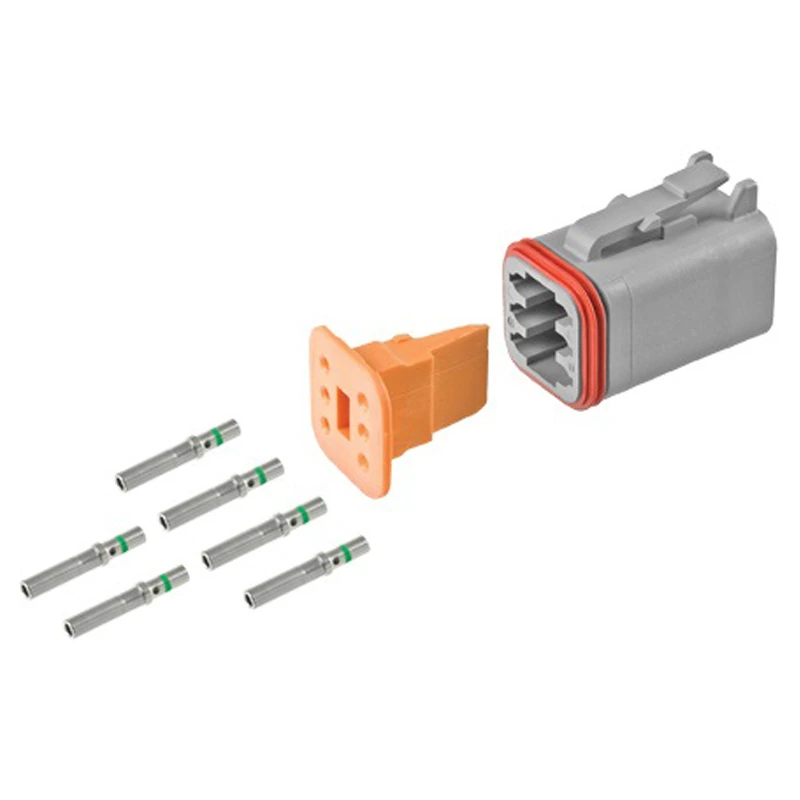

The DEUTSCH DT6FP-1 is a 6-way (6-pin) DT Series plug half kit for cable-to-cable connections in automotive and industrial wiring. It includes one plug housing, a wedgelock and 6 green-band socket contacts.
This is one half of a connection, not a complete mating pair. A compatible receptacle with pin contacts is required separately. Match the cavity count and housing keying when selecting mating components.
Key Benefits
- Genuine TE Connectivity DEUTSCH housing, wedgelock and contacts
- Housing, contacts and secondary wedgelock supplied together
- DT Series environmental seals help protect correctly assembled and mated connections from moisture and dirt
- Positive latch and secondary wedgelock provide secure mating and contact retention
- Serviceable crimp-contact design for vehicle, equipment and machinery wiring
Specifications
- Kit part number: DT6FP-1
- Connector family: DEUTSCH DT Series
- Positions: 6
- Kit type: Plug Half Kit
- Contact size: 16
- Contacts: green-band sockets
- DT Series maximum contact current: 13A; allowable circuit current depends on wire size, temperature and application
- DT Series operating temperature: −55°C to +125°C
- Housing construction: thermoplastic with silicone seals
- Termination: crimp; select tooling and wire insulation size to suit the supplied contacts and seals
