Description

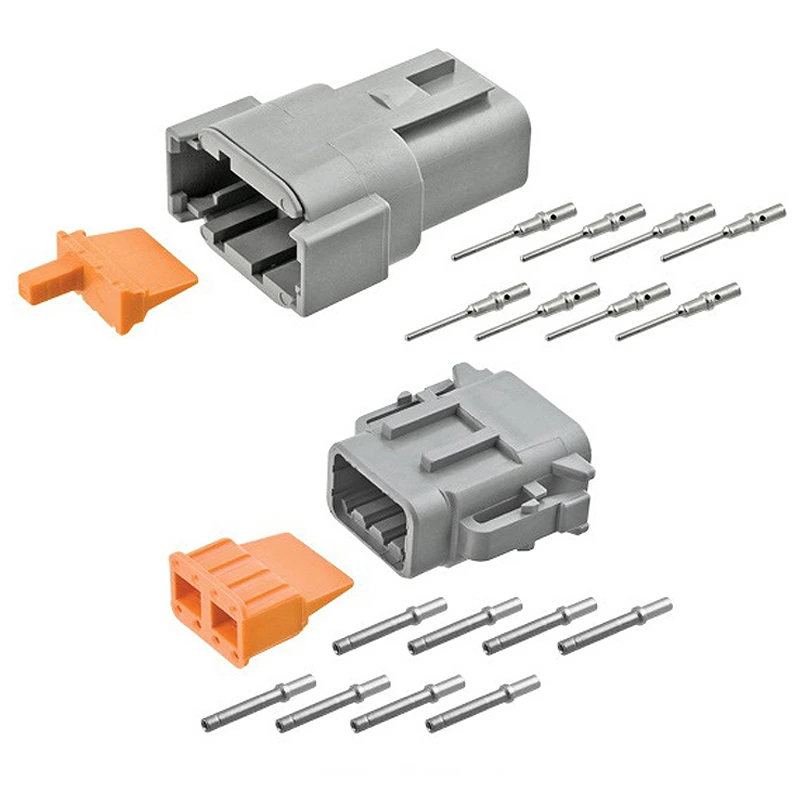

The DEUTSCH DTM8-1 is a 8-way DTM Series full connector kit for compact, lower-current signal and equipment wiring. It includes both mating connector halves and their crimp contacts, allowing a harness connection to be disconnected for servicing.
Select the correct cavity count and verify wire compatibility with the contacts and seals. DTM components are not interchangeable with other DEUTSCH families merely because they have the same number of positions.
Key Benefits
- Genuine TE Connectivity DEUTSCH housings, wedgelocks and contacts
- Both connector halves supplied in one kit
- Integrated latch secures the mating pair
- Wedgelocks support contact alignment and secondary retention
- Environmental sealing when correctly wired and mated
Specifications
- Kit part number: DTM8-1
- Family: DEUTSCH DTM
- Positions: 8
- Contact size: 20
- Maximum contact current: 7.5A per contact; circuit capacity depends on wire size, temperature and application
- Kit contents: 1 receptacle, 1 plug, matching wedgelocks, 8 pin contacts and 8 socket contacts
- Contact construction: solid crimp contacts
- Housing: thermoplastic
- Seals: silicone rubber
- Operating temperature: −55°C to +125°C
- Installation: use wire and crimp tooling suited to the supplied contacts
