Description
The DEUTSCH P10-6-96K is a 6-way HD10 flange mount connector kit with HD10-6-96P and HD16-6-96S mating housings. It includes nickel-plated solid size 16 pin and socket contacts, sealing blanks and a contact removal tool for harness assembly and repair.
The square-flange receptacle supports panel mounting, paired with the cable-side plug for a serviceable connection on compatible vehicle and equipment wiring. Panel hardware and gaskets are not included.
Key Benefits
- Genuine TE Connectivity DEUTSCH housings and contacts
- Both mating connector halves and matching nickel-plated contacts in one kit
- 6 circuits with size 16 contacts rated up to 13 A per contact, subject to wire size, temperature and installation
- Sealable thermoplastic housings with silicone seals
- Rear-inserted contacts can be serviced using suitable contact removal tooling

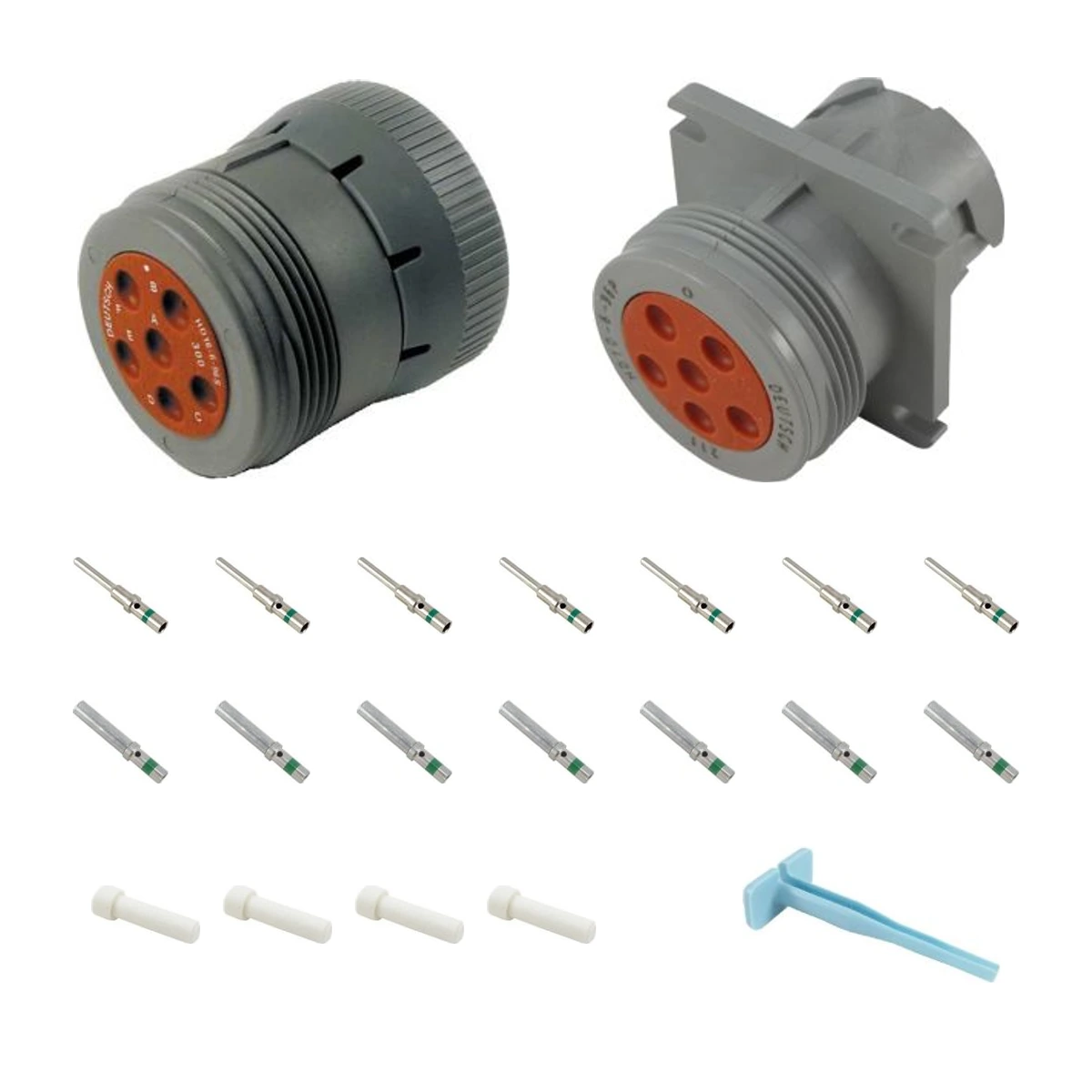

Kit Components
- 1 × HD10-6-96P receptacle housing
- 1 × HD16-6-96S plug housing
- 7 × 0460-215-16141 nickel pin contacts
- 7 × 0462-209-16141 nickel socket contacts
- 4 × 114017 sealing blanks
- 1 × 0411-310-1605 contact removal tool
The contact quantities include one spare pin and one spare socket. The connector remains a 6-way assembly.
Specifications
- Kit SKU: P10-6-96K
- Series: DEUTSCH HD10
- Positions: 6
- Receptacle style: flange mount
- Rear accessory connection: threaded
- Contact size: 16
- Supplied contact wire range: 14 AWG (2 mm²)
- Standard-seal wire insulation diameter: 2.54–3.81 mm
- Contact finish: nickel plated
- Termination: crimp
- Operating temperature: −55°C to +125°C
- Environmental sealing requires compatible wire, correctly fitted cavity blanks, proper assembly and fully mated connectors
Selection & Installation
The plug uses a bayonet coupling ring for connection and disconnection. Match both housing part numbers, keying, cavity arrangement and rear accessory style before ordering. Confirm that the conductor fits the supplied contacts and the insulation diameter suits the standard seals.
Crimp the solid contacts with suitable tooling, insert from the rear and check retention. Seal unused cavities with the supplied blanks. Follow the HD10 application instructions and inspect the finished connection. Wire, crimp tools, backshells, dust caps and mounting hardware are not supplied.
