Description

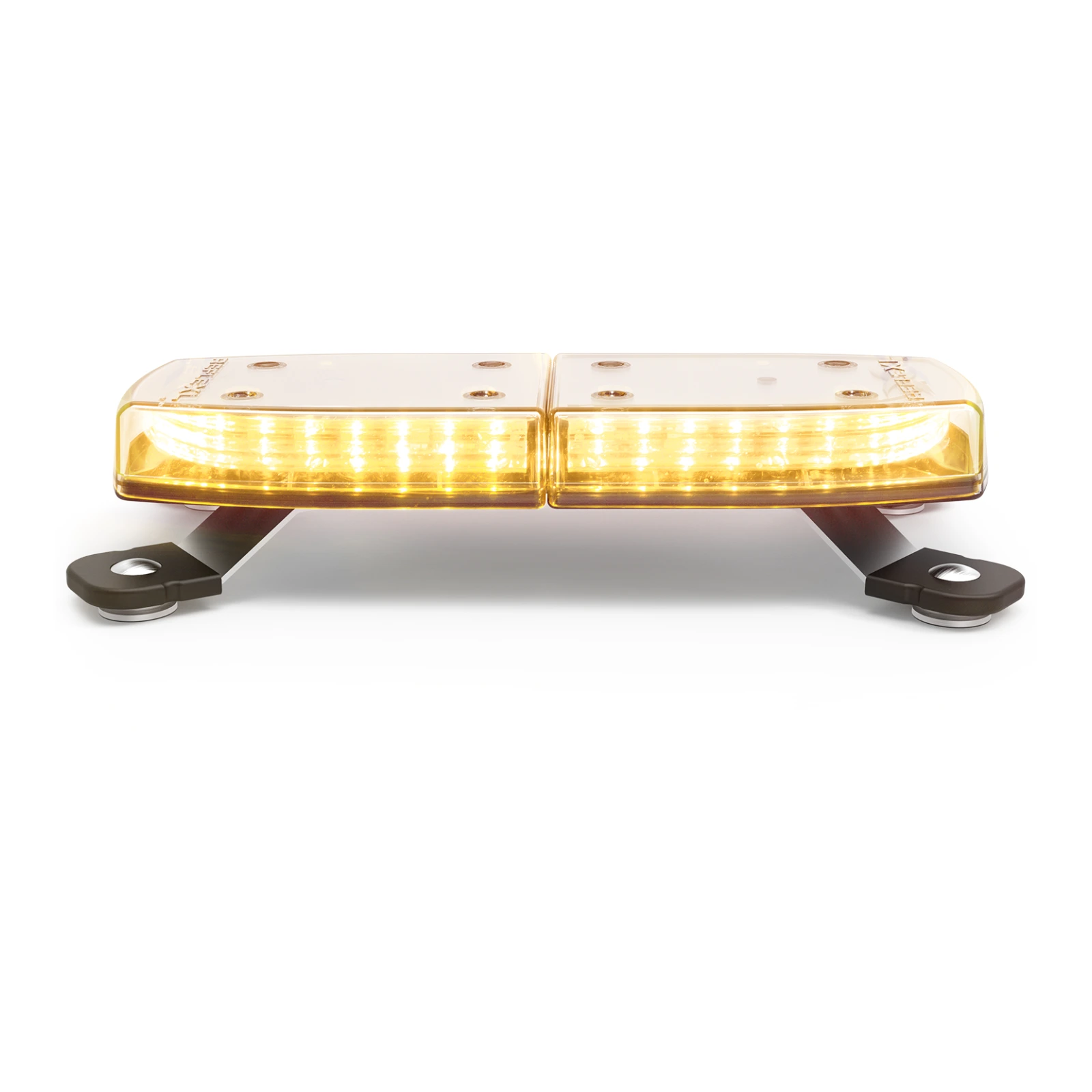

The ECCO 11-012CAC-E-MG is a REFLEXL® 11 Series narrow LED lightbar – a 12″ (305 mm) microbar with amber/white LEDs behind a clear lens. Its slim 33 mm profile suits headache racks, cab guards, tray bodies, ute canopies and machinery where a full-width lightbar won’t fit.
It offers 35 flash patterns across amber and white, including dual-colour patterns, on 12–24 VDC, drawing 1.50 A @ 12V / 0.92 A @ 24V. Approvals include SAE Class I, ECE R65, ECE R10 and CISPR 25 Level 3, and the bar is sealed to IP65 and IP69K for washdown and harsh environments, operating from −40 °C to +65 °C.
This -MG version is a vacuum-magnet mount: it fits to a steel roof or panel with its magnetic feet and plugs into the cigarette socket, with a momentary switch on the plug for selecting flash patterns – ideal for temporary or shared use across vehicles. It weighs about 0.8 kg and is backed by a 5-year ECCO warranty.
Key Benefits
- 12″ (305 mm) narrow microbar, 33 mm profile
- Amber/white dual-colour LEDs, clear lens
- 35 flash patterns
- Vacuum-magnet mount with cigarette plug and pattern switch
- SAE Class I, ECE R65, ECE R10, CISPR 25 Level 3
- IP65 / IP69K, −40 °C to +65 °C
- 5-year ECCO warranty
Specifications
- Part number – 11-012CAC-E-MG
- Series – ECCO 11 Series REFLEXL® narrow LED lightbar
- Length – 305 mm (12″)
- Width × height – 127 mm × 33 mm (61 mm with feet)
- LED colour – Amber / White
- Lens colour – Clear
- Flash patterns – 35
- Mounting – Vacuum-magnet, cigarette plug with momentary switch
- Input voltage – 12–24 VDC
- Current draw – 1.50 A @ 12V / 0.92 A @ 24V
- Weight – 0.8 kg
- Approvals – SAE Class I, ECE R10, ECE R65, CISPR 25 Level 3
- Ingress protection – IP65, IP69K
- Operating temperature – −40 °C to +65 °C
- Warranty – 5 years
Applications
- Shared or temporary vehicle warning
- Utes and light vehicles without a roof rack
- Pilot, escort and inspection vehicles
- Hire and pool vehicles
