Description

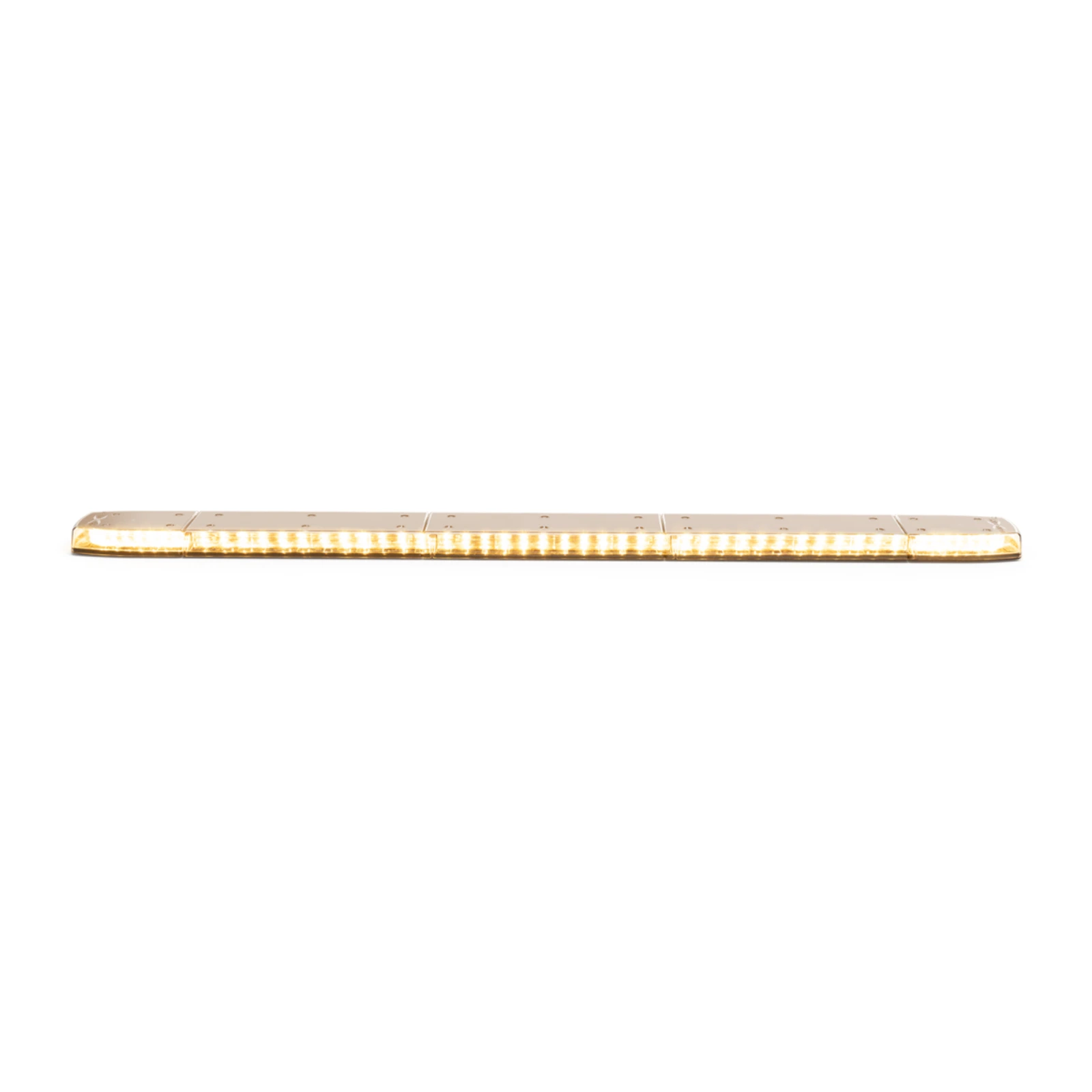

The ECCO 11-048CA-E is a REFLEXL® 11 Series narrow LED lightbar – a 48″ (1221 mm) microbar with amber LEDs behind a clear lens. Its slim 33 mm profile suits headache racks, cab guards, tray bodies, ute canopies and machinery where a full-width lightbar won’t fit.
It offers 35 flash patterns on 12–24 VDC, drawing 3.30 A @ 12V / 1.90 A @ 24V. Approvals include SAE Class I, ECE R65, ECE R10 and CISPR 25 Level 3, and the bar is sealed to IP65 and IP69K for washdown and harsh environments, operating from −40 °C to +65 °C.
This version is for permanent mounting, and permanent-mount bars can synchronise with compatible ECCO and Code 3 products via the sync wire. It measures 1221 × 127 × 33 mm (61 mm high with feet), weighs about 3.5 kg and is backed by a 5-year ECCO warranty.
Key Benefits
- 48″ (1221 mm) narrow microbar, 33 mm profile
- Amber LEDs, clear lens
- 35 flash patterns
- Permanent mount with sync capability
- SAE Class I, ECE R65, ECE R10, CISPR 25 Level 3
- IP65 / IP69K, −40 °C to +65 °C
- 5-year ECCO warranty
Specifications
- Part number – 11-048CA-E
- Series – ECCO 11 Series REFLEXL® narrow LED lightbar
- Length – 1221 mm (48″)
- Width × height – 127 mm × 33 mm (61 mm with feet)
- LED colour – Amber
- Lens colour – Clear
- Flash patterns – 35
- Mounting – Permanent mount, sync wire
- Input voltage – 12–24 VDC
- Current draw – 3.30 A @ 12V / 1.90 A @ 24V
- Weight – 3.5 kg
- Approvals – SAE Class I, ECE R10, ECE R65, CISPR 25 Level 3
- Ingress protection – IP65, IP69K
- Operating temperature – −40 °C to +65 °C
- Warranty – 5 years
Applications
- Headache racks and cab guards
- Ute trays, canopies and service bodies
- Mining, construction and agricultural machinery
- Tow trucks and roadside assistance vehicles
