Description

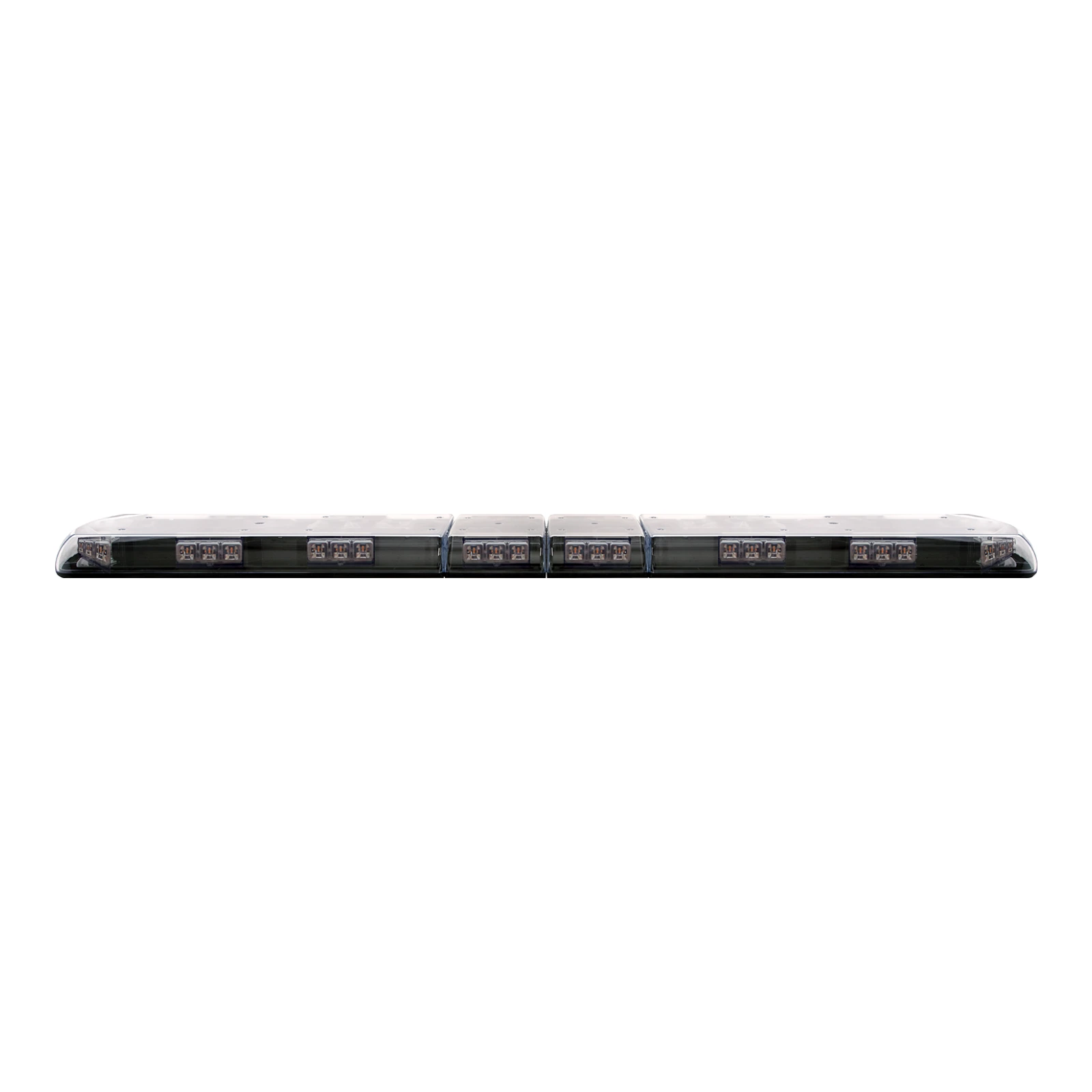

The ECCO 12-80075-E is a 1520 mm low-profile amber LED lightbar from ECCO’s 12+ Series, with a clear lens plus white alley lights and worklights. It gives full-width SAE J845 Class I warning for utes, trucks and service vehicles, combining a sleek low-profile design with a durable aluminium chassis and polycarbonate base and lens.
16 amber warning modules with ICE Optics give a bright appearance and wide-angle visibility, and the bar offers 48 standard flash patterns. Integrated white alley lights and worklights add scene and work-area lighting from the same bar. It runs on 12–24 VDC and is approved to SAE J845 Class I, California Title 13 and ECE R65, with excellent EMC performance to ECE R10.
The 12+ Series is a plug-and-play design that works with ECCO’s EZ0006 basic controller, EZ1202 advanced controller (which adds Integrated Safety Director™ arrow patterns) or the customisable DIRC controller, all sold separately. Mounting kits are available for roof racks, rain gutters and permanent fitting, and ECCO backs the 12+ Series with a 5-year no-hassle warranty.
Key Benefits
- 1520 mm low-profile lightbar with clear lens and amber LEDs
- White alley lights and worklights built in
- SAE J845 Class I, California Title 13 and ECE R65 approved warning output
- 48 standard flash patterns, plus 11 Safety Director™ patterns with the advanced controller
- ICE Optics for a brighter appearance and better visibility
- Durable aluminium chassis with polycarbonate base and lens
- 12–24 VDC operation with excellent EMC performance
- 5-year ECCO warranty
Specifications
- Part number – 12-80075-E
- Series – ECCO 12+ Series SAE Class I LED lightbar
- Length – 1520 mm
- Height / depth – 64 mm high × 279 mm deep
- LED colour – Amber warning; white alley and work lights
- Lens colour – Clear
- Warning modules – 16 plus alley and work lights
- Flash patterns – 48 standard; 11 Safety Director™ (with EZ1202 controller)
- Input voltage – 12–24 VDC
- Current draw – 13.6 A
- Approvals – SAE J845 Class I, California Title 13, CE, ECE R10, ECE R65
- Construction – Aluminium chassis, polycarbonate base and lens
- Controllers (sold separately) – EZ0006 basic, EZ1202 advanced with Safety Director™, DIRC customisable
- Warranty – 5 years
Applications
- Utes, service and roadside assistance vehicles
- Tow trucks, traffic management and construction vehicles
- Mining, utility and council fleet vehicles
- Pilot and escort vehicles needing full-width roof warning
