Description

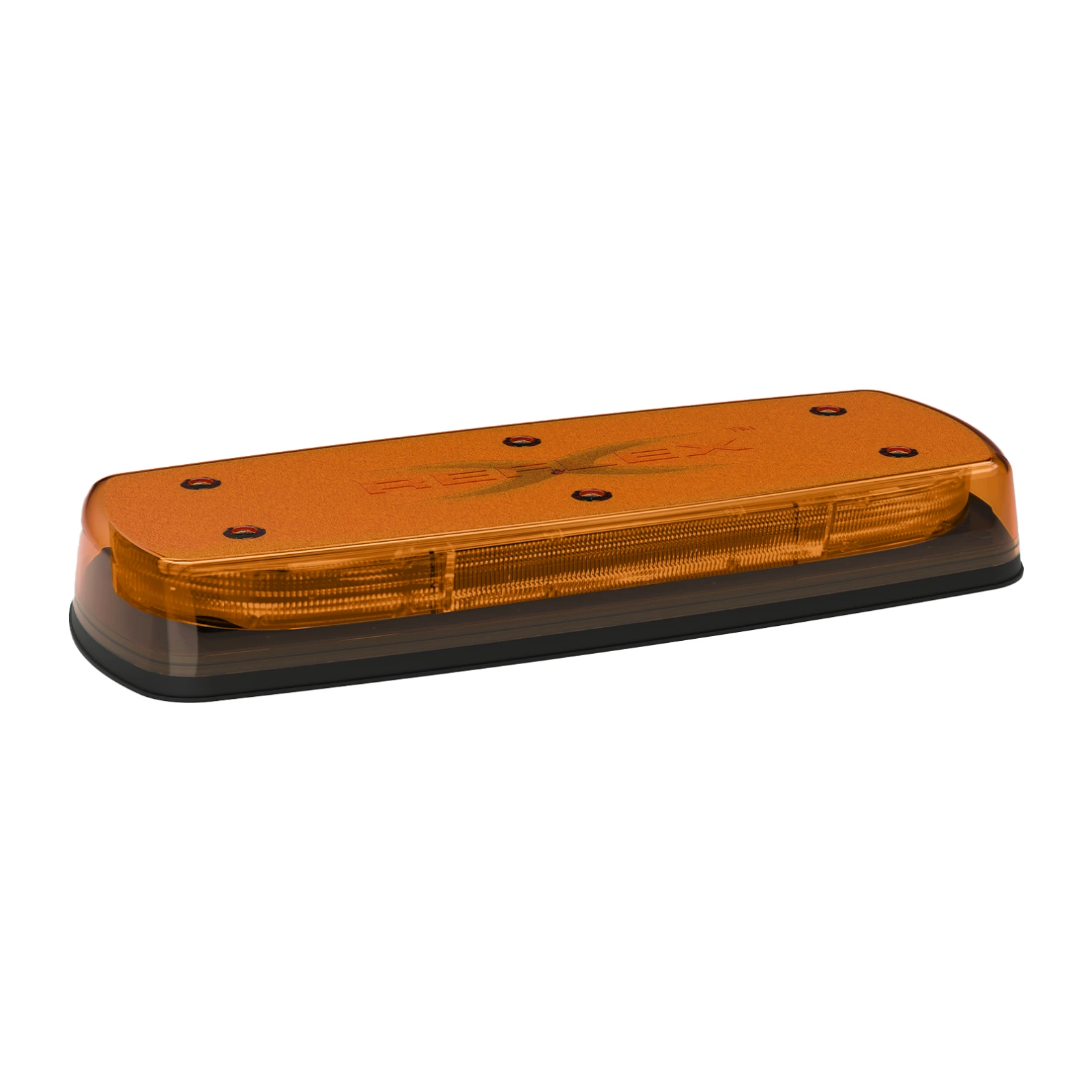

The ECCO 5517A is a 17-inch 5517 Reflex® Series LED microbar with amber LEDs under an amber dome and permanent (bolt-on) mounting. It is built for utes, service vehicles, trucks and plant that need 360° roof-mounted warning without the size of a full-width lightbar.
The 5517 is a slim 17-inch microbar with 60 high-output LEDs behind Reflex® optics. At only 102 mm deep it suits narrow mounting surfaces such as headache racks, canopies and roof rails, while still giving SAE Class I warning with 37 flash patterns.
It runs on 12–24V DC and draws about 6.2 A. Permanent mounting suits fleet vehicles where the minibar stays fitted for its working life.
Key Benefits
- Slim 17-inch (434 mm) microbar, only 102 mm deep
- Amber LEDs under a amber dome
- Permanent bolt-on mount
- 60 high-output amber LEDs
- 37 selectable flash patterns
- SAE J845 Class I, California Title 13 and ECE R10
- IP69K rated for high-pressure washdown
- 5-year ECCO warranty
Specifications
- Part number – 5517A
- Series – ECCO 5517 Reflex® Series microbar
- Dimensions – 434 mm long × 102 mm deep × 56 mm high
- LEDs – 60
- LED colour – Amber
- Dome colour – Amber
- Flash patterns – 37 flash patterns
- Voltage – 12–24V DC
- Current draw – 6.2 A
- Mounting – Permanent bolt-on
- Approvals – SAE J845 Class I, California Title 13, ECE R10, IP69K
- Warranty – 5 years
Applications
- Utes, service and roadside assistance vehicles
- Tow trucks, traffic management and construction vehicles
- Mining, utility and council fleet vehicles
- Light trucks and plant needing compact roof-mounted warning
