Description

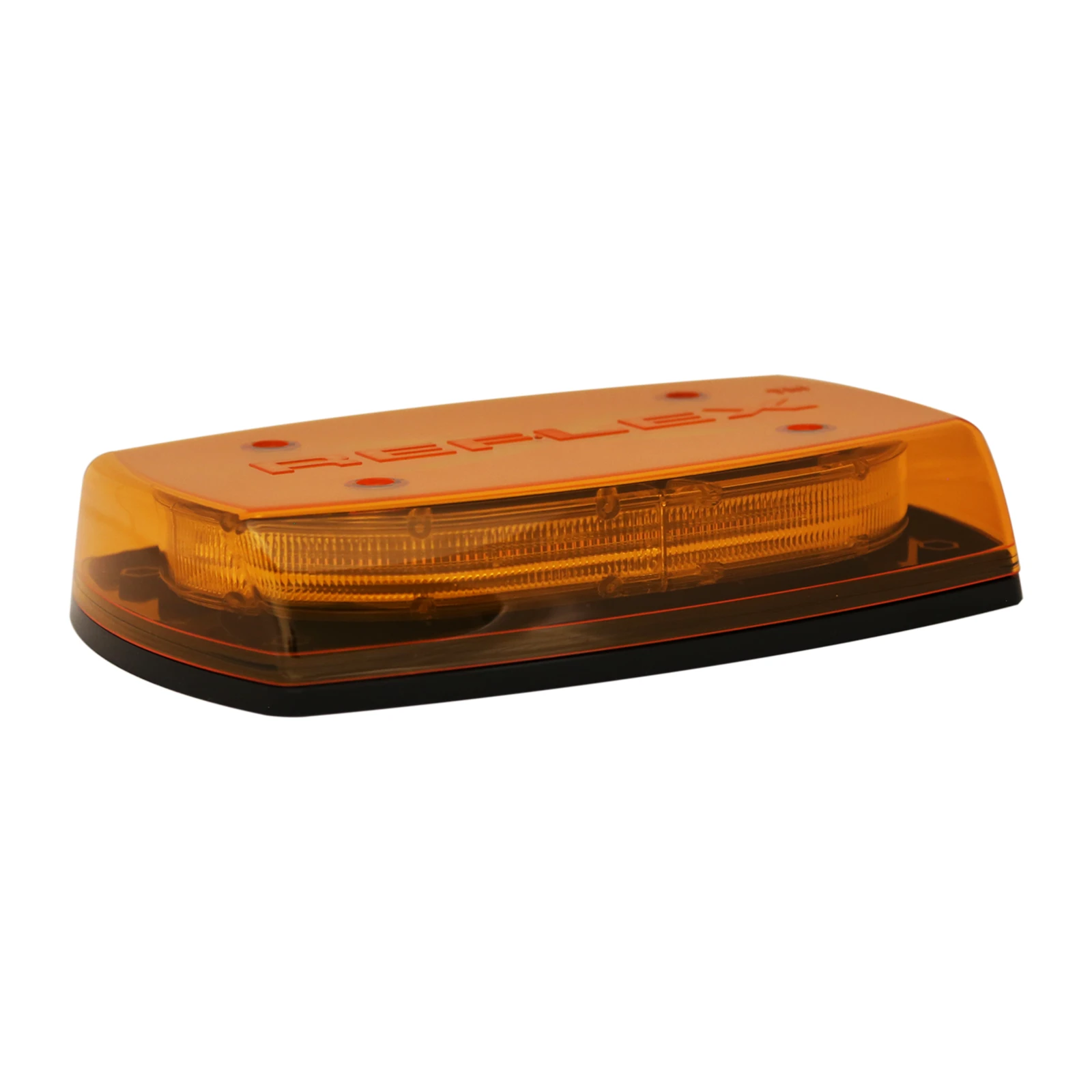

The ECCO 5550A-VA1 is an 11-inch 5550 Reflex® Series LED minibar with amber LEDs under an amber dome and single-bolt (1-bolt) permanent mounting. It is built for utes, service vehicles, trucks and plant that need 360° roof-mounted warning without the size of a full-width lightbar.
The 5550 is ECCO’s compact 11-inch Reflex® minibar. Its reflector optics throw a bright, wide-angle warning signal from a low-profile polycarbonate dome, making it a good fit for utes, light commercial vehicles and smaller cab roofs where a full-width lightbar is too much.
It runs on 12–24V DC and draws about 3.4 A. The single-bolt base makes for a quick, tidy permanent install.
Key Benefits
- Compact 11-inch (278 mm) low-profile minibar
- Amber LEDs under a amber dome
- Single-bolt permanent mount
- SAE J845 Class I warning output
- 18 selectable flash patterns
- IP65 sealed, with CE and ECE R10 approvals
- 5-year ECCO warranty
Specifications
- Part number – 5550A-VA1
- Series – ECCO 5550 Reflex® Series minibar
- Dimensions – 278 mm long × 194 mm deep × 56 mm high
- LED colour – Amber
- Dome colour – Amber
- Flash patterns – 18 flash patterns
- Voltage – 12–24V DC
- Current draw – 3.4 A
- Mounting – 1-bolt permanent
- Approvals – SAE J845 Class I, California Title 13, CE, ECE R10, IP65, ECE R65, RCM
- Warranty – 5 years
Applications
- Utes, service and roadside assistance vehicles
- Tow trucks, traffic management and construction vehicles
- Mining, utility and council fleet vehicles
- Light trucks and plant needing compact roof-mounted warning
