Description

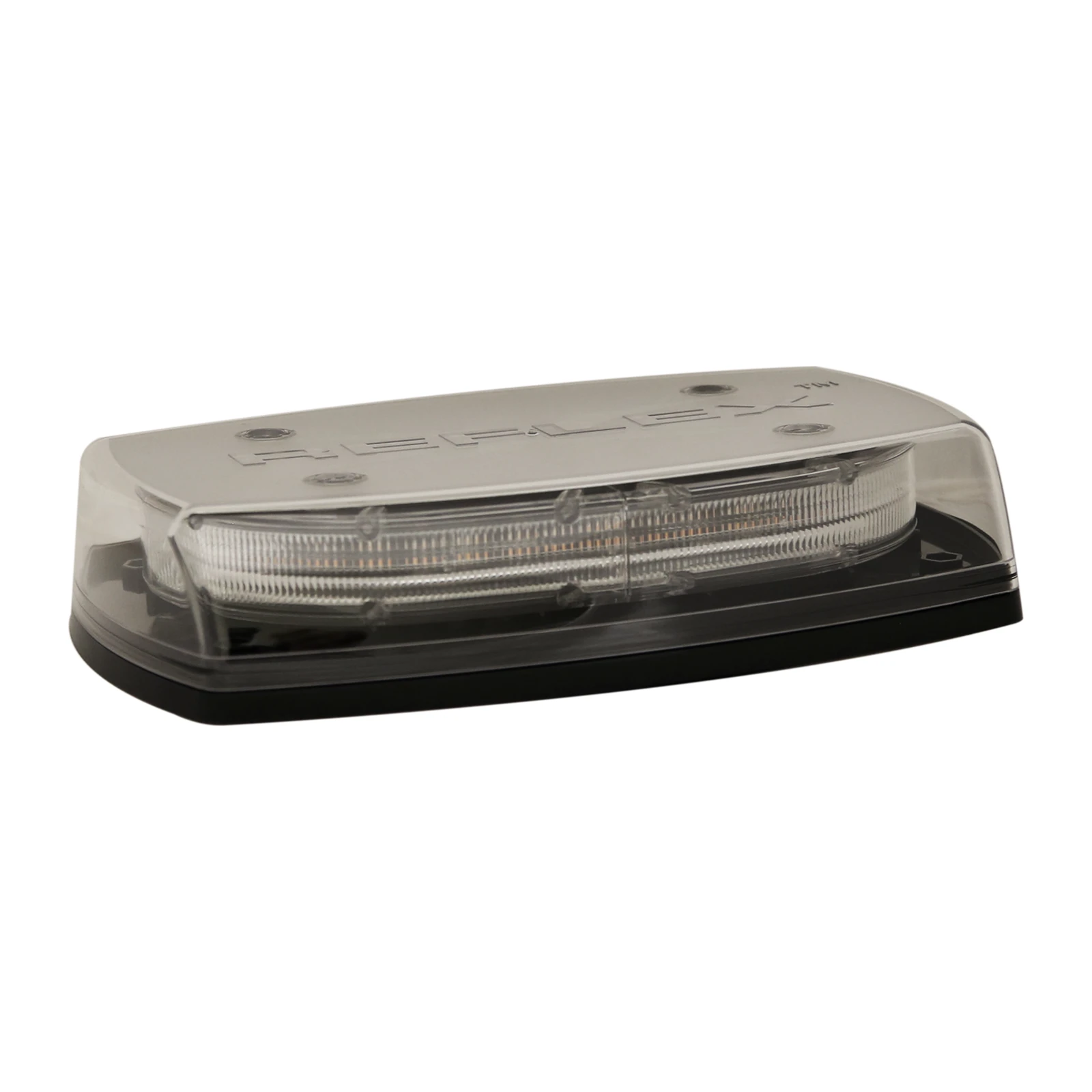

The ECCO 5550CAG is an 11-inch 5550 Reflex® Series LED minibar with dual-colour amber and green LEDs under a clear dome and permanent (bolt-on) mounting. It is built for utes, service vehicles, trucks and plant that need 360° roof-mounted warning without the size of a full-width lightbar.
The 5550 is ECCO’s compact 11-inch Reflex® minibar. Its reflector optics throw a bright, wide-angle warning signal from a low-profile polycarbonate dome, making it a good fit for utes, light commercial vehicles and smaller cab roofs where a full-width lightbar is too much.
It runs on 12–24V DC and draws about 2.7 A. Permanent mounting suits fleet vehicles where the minibar stays fitted for its working life. Green is commonly used on mine sites as an identification or status light; check your site and state requirements.
Key Benefits
- Compact 11-inch (278 mm) low-profile minibar
- Amber / Green LEDs under a clear dome
- Permanent bolt-on mount
- SAE J845 Class I warning output
- 18 selectable flash patterns
- IP65 sealed, with CE and ECE R10 approvals
- 5-year ECCO warranty
Specifications
- Part number – 5550CAG
- Series – ECCO 5550 Reflex® Series minibar
- Dimensions – 278 mm long × 194 mm deep × 56 mm high
- LED colour – Amber / Green
- Dome colour – Clear
- Flash patterns – 18 flash patterns
- Voltage – 12–24V DC
- Current draw – 2.7 A
- Mounting – Permanent bolt-on
- Approvals – SAE J845 Class I, California Title 13, CE, ECE R10, IP65
- Warranty – 5 years
Applications
- Utes, service and roadside assistance vehicles
- Tow trucks, traffic management and construction vehicles
- Mining, utility and council fleet vehicles
- Light trucks and plant needing compact roof-mounted warning
