Description

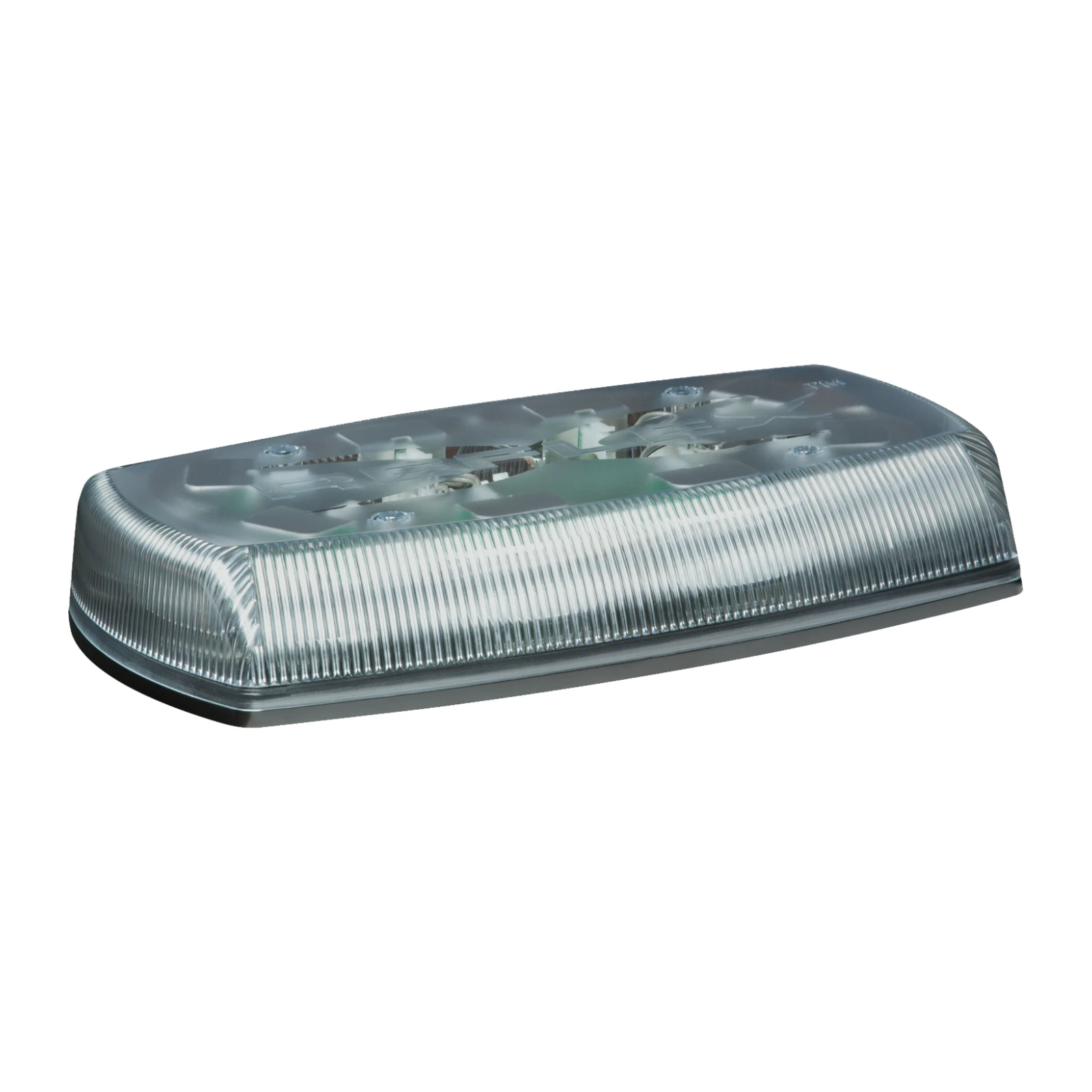

The ECCO 5585CA is a 15-inch 5585 Reflex® Series LED minibar with amber LEDs under a clear dome and permanent (bolt-on) mounting. It is built for utes, service vehicles, trucks and plant that need 360° roof-mounted warning without the size of a full-width lightbar.
The 5585 is ECCO’s 15-inch, 8-head Reflex® minibar. Reflective optics give strong 360° SAE Class I warning, and multiple units can be synchronised. On permanent-mount models the flash pattern is selected through the trigger wire; vacuum-magnet models have a switch in the cigarette plug.
It runs on 12–24V DC and draws about 5.1 A. Permanent mounting suits fleet vehicles where the minibar stays fitted for its working life.
Key Benefits
- 15-inch (381 mm), 8-head SAE J845 Class I minibar
- Amber LEDs under a clear dome
- Permanent bolt-on mount
- Reflex® reflective optics for 360° warning coverage
- 18 flash patterns, with synchronisation between units
- IP65 sealed, with CE and ECE R10 approvals
- 5-year ECCO warranty
Specifications
- Part number – 5585CA
- Series – ECCO 5585 Reflex® Series minibar
- Dimensions – 381 mm long × 229 mm deep × 63 mm high
- LED colour – Amber
- Dome colour – Clear
- Flash patterns – 18 flash patterns
- Voltage – 12–24V DC
- Current draw – 5.1 A
- Mounting – Permanent bolt-on
- Approvals – SAE J845 Class I, California Title 13, CE, ECE R10, IP65
- Warranty – 5 years
Applications
- Utes, service and roadside assistance vehicles
- Tow trucks, traffic management and construction vehicles
- Mining, utility and council fleet vehicles
- Light trucks and plant needing compact roof-mounted warning
