Description

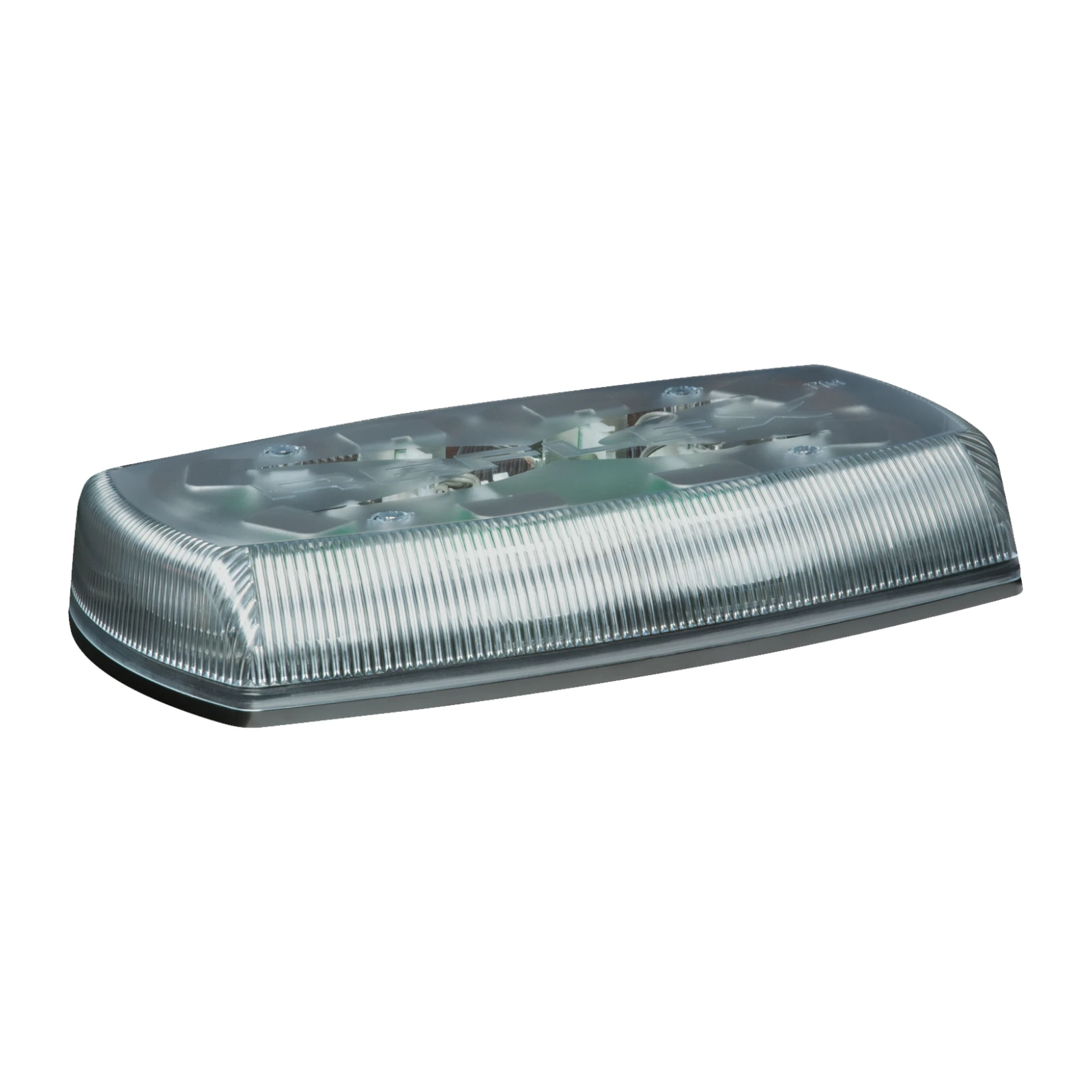

The ECCO 5585CB is a 15-inch 5585 Reflex® Series LED minibar with blue LEDs under a clear dome and permanent (bolt-on) mounting. It is built for utes, service vehicles, trucks and plant that need 360° roof-mounted warning without the size of a full-width lightbar.
The 5585 is ECCO’s 15-inch, 8-head Reflex® minibar. Reflective optics give strong 360° SAE Class I warning, and multiple units can be synchronised. On permanent-mount models the flash pattern is selected through the trigger wire; vacuum-magnet models have a switch in the cigarette plug.
It runs on 12–24V DC and draws about 5.1 A. Permanent mounting suits fleet vehicles where the minibar stays fitted for its working life. Note: red and blue warning lights are restricted to authorised vehicles in Australia, so check your state’s rules before fitting.
Key Benefits
- 15-inch (381 mm), 8-head SAE J845 Class I minibar
- Blue LEDs under a clear dome
- Permanent bolt-on mount
- Reflex® reflective optics for 360° warning coverage
- 18 flash patterns, with synchronisation between units
- IP65 sealed, with CE and ECE R10 approvals
- 5-year ECCO warranty
Specifications
- Part number – 5585CB
- Series – ECCO 5585 Reflex® Series minibar
- Dimensions – 381 mm long × 229 mm deep × 63 mm high
- LED colour – Blue
- Dome colour – Clear
- Flash patterns – 18 flash patterns
- Voltage – 12–24V DC
- Current draw – 5.1 A
- Mounting – Permanent bolt-on
- Approvals – SAE J845 Class I, CE, ECE R10, IP65
- Warranty – 5 years
Applications
- Utes, service and roadside assistance vehicles
- Tow trucks, traffic management and construction vehicles
- Mining, utility and council fleet vehicles
- Light trucks and plant needing compact roof-mounted warning
