Description

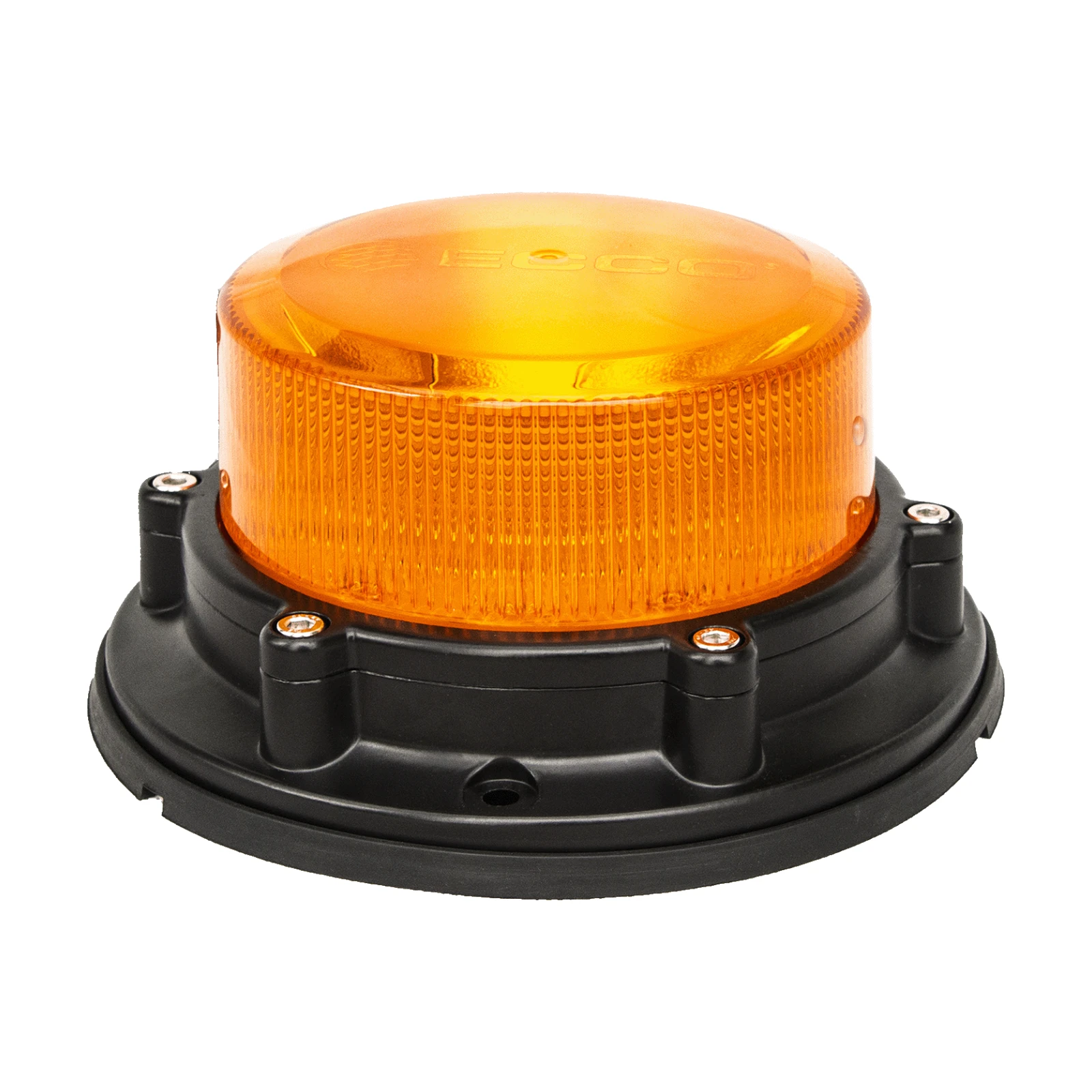

The ECCO EB8160A is an amber heavy-duty LED beacon from ECCO’s EB8160 Series, designed and engineered in Australia for the toughest conditions. It combines SAE J845 Class 1 warning performance with best-in-class CISPR 25 Class 5 EMC protection, so it delivers powerful visibility while minimising interference with radios, GPS and sensitive onboard electronics.
Twenty-four high-performance amber LEDs with ECCO-designed 3-stage optics, including upward-facing LEDs, give enhanced vertical and horizontal visibility. There are 20 flash patterns, including Pulse and three auto-dimming patterns that use the built-in ambient light sensor, and the beacon runs on 10–32 VDC with reverse polarity and ISO 16750-2 load-dump protection.
The rugged die-cast aluminium base, hard-coated UV-resistant polycarbonate lens and silicone O-ring are sealed to IP67 and IP69K, with a pressure vent and EPDM base gasket. It fits 150 mm, 130 mm and 107 mm PCD mounting patterns and comes with a 1.6 m harness. ECCO backs the EB8160 with a 5-year no-hassle warranty.
Key Benefits
- Designed and engineered in Australia for heavy-duty use
- CISPR 25 Class 5 EMC, ECE R10 and RCM compliant, for minimal interference
- SAE J845 Class 1 warning performance from 24 amber LEDs with 3-stage optics
- 20 flash patterns, including Pulse and 3 auto-dimming patterns
- IP67 and IP69K sealed die-cast aluminium base and hard-coated lens
- Fits 150, 130 and 107 mm PCD mounting patterns
- Backed by ECCO’s 5-year no-hassle warranty
Specifications
- Part number – EB8160A
- Series – ECCO EB8160 Series heavy-duty LED beacon
- Lens / light colour – Amber
- Light source – 24 high-performance amber LEDs, 3-stage optics with upward-facing LEDs
- Flash patterns – 20, including Pulse and 3 auto-dimming (ambient light sensor)
- Input voltage – 10–32 VDC
- Current draw – 4.4 A peak / 1.6 A max @ 13.8 V; 2.2 A peak / 0.8 A max @ 27.6 V
- Approvals – SAE J845 Class 1, California Title 13, ECE R10, CISPR 25 Class 5, RCM
- Ingress protection – IP67, IP69K
- Protection – Reverse polarity; ISO 16750-2 Pulse 5a Class A load dump
- Dimensions – 167 mm diameter × 85 mm high
- Weight – 0.85 kg
- Mounting – Flange, 150 / 130 / 107 mm PCD; 1.6 m harness; #10 hardware included
- Operating temperature – −40 °C to +60 °C
- Warranty – 5 years
Applications
- Mining, quarry and resources vehicles and heavy plant
- Trucks, utes and service vehicles with radios, GPS and telematics
- Construction, civil and traffic management fleets
- Agricultural machinery and forklifts
